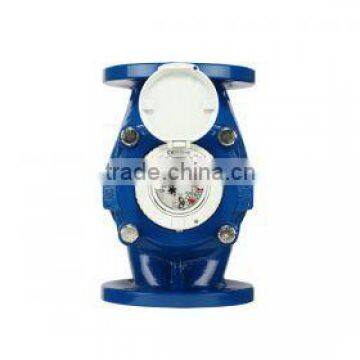

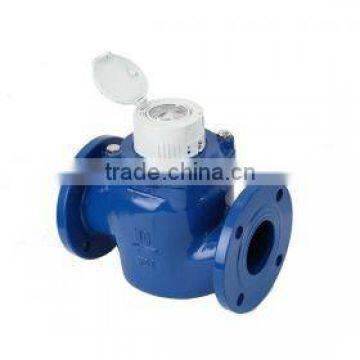

WSD/WSE WATER METER

There is no deflection of the rotation by a worm gear to the register. Extremely low starting values can be achieved due to the minimal friction.Thanks to its design advantages, the Woltmann meter type WSD is an ideal choice especially with fluctuating flow rates.

The hydrodynamic optimized impeller is driven reliably even at low flow rates. Also under the highest loads it has enough reserve to detect even flow rate peaks. The specially enhanced bearing of the impeller causes low friction and guarantees a long service lifetime of the meter.

The WSD is optimally prepared for remote reading. Retrofitting of electronic communication modules (EDC radio, EDC M-Bus, EDC pulse) and conventional Reed sensors is possible at any time and without  violating the calibration seal.

Performance Characteristics

• Removable measuring insert
• Hermetically sealed register (IP 68), protected against condensation
• Low starting flow and high measuring accuracy
• Integrated stainless steel strainer
• Especially enhanced sapphire bearing
• Hydraulic relief ot the bearing for long-term measurement stability
• Dry-dial register with optimum readability
• Prepared for remote reading
• High-pressure version PN 25/40 on request
• For cold water up to 30°C with security up to 50°C
• For horizontal installation
• Optional short overall length for DN 50, DN 80 and DN 100 available
• Approved in accordance with MID
• Product Features

• Measuring Principle	Woltman vertical
  Register	Dry Dial Dry Dial protection class IP 68
  Housing Material	Cast Iron
  Length without connectors	200 mm 225 mm 250 mm 270 mm 300 mm 360 mm 500 mm
  Nominal Flow Q3 (≈ Qn)	Q3=25 (≈ Qn 15) Q3=40 (≈ Qn 25) Q3=63 (≈ Qn 40) Q3=100 (≈ Qn 60) Q3=250 (≈ Qn 150) Q3=400 (≈ Qn 250)
  Nominal Diameter DN (mm)	DN 50 DN 65 DN 80 DN 100 DN 150 DN 200
  Temperature	Cold Water up to 30° C Safe up to 50° C
  Specified Units on Display	Cubik Meters (m³)
  AMR Technologies	Reed Pulser Electronic Pulser M-Bus Radio via wireless M-Bus Radio Special System (GSM)
  Metrological Class horizontal (max.)	R 200
  Operating Pressure (max.)	PN 16
