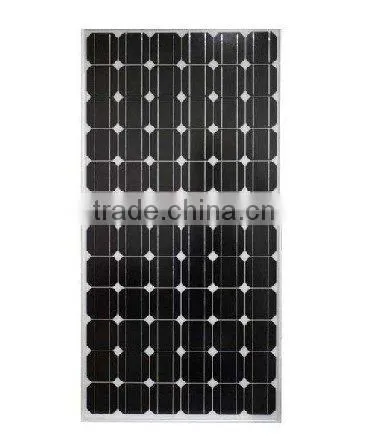

Good Quality 190W Mono Solar Panels Price 36V
US$ 0.5 - 0.6
MOQ: 1900 Watts
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
OEM
Model Number:
NZX-190W
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Guangdong, China
Brand Name
OEM
Model Number
NZX-190W
Material
Monocrystalline Silicon
Size
1482*992*50mm
Number of Cells
72PCS
Max. Power
190W
Good Quality 190W Mono Solar Panels Price 36V
Detailed Product Description
ITEM NO.: |
NZX-190W |
| Solar Cell: | 125*125 Mono |
| Maximum Power(W) | 190W |
| Optimum Power Voltage(Vmp) | 25.6 |
| Optimum Operatige Current(Imp) | 7.42 |
| Open Circuit Voltage(Voc) | 32.1 |
| Short Circuit Current(Isc) | 8.25 |
| Nmber of Cell(pcs) | 6*9 |
| Size of Module(mm) | 1580x810x35mm |
| Front Glass Thikness(mm) | 3.2 |
| Maxium System Voltage (V) | 1000 |
| Temperature Coefficients of Isc(%) | 0.06+/-0.01% |
| Temperature Coefficients of Voc(%) | -2.23+/-0.1 |
| Temperature Coefficients of Pm(%) | -0.5+-0.05 |
| Temperature Coefficients of Im(%) | +0.10 |
| Temperature Coefficients of Vm(%) | -0.38 |
| Temperature Range | -40°C to +85°C |
| Tolerance Wattage(e.g.+/-5%) | ±5% |
| Surface Maximum Load Capacity | 2400Pa |
| Allowable Hail Load | 23m/s ,7.53g |
| Weight Per Piece(KG) | 18.3 |
| Cell Efficiency for 180W(%) | >17% |
| Frame(Material Corners,etc.) | Anodized Aluminum Alloy |
| Backing (Brand Type) | TPT |
| Warranty | 3 years for the whole product, for the power,90% for 10 years, 80% for 25 years |
| Standard Test Conditions | AM1.5 1000W/ 25 +/-2°C |
FF (%) |
72% |
