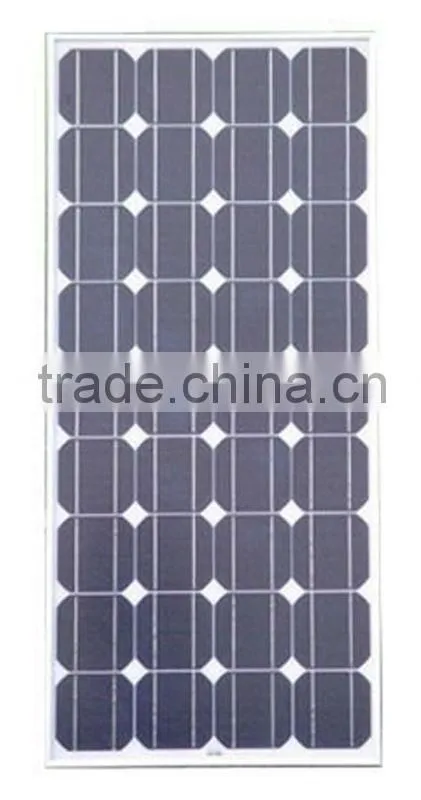

Custom Solar Power Panels

US$ 399.99 - 450.59 MOQ: 50 Pieces

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

NZX

Model Number:

NZX-120WP36V

Shenzhen Ningzexin Solar Electricity Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name NZX

Model Number NZX-120WP36V

Material Monocrystalline Silicon

Size 1670*992*50mm

Number of Cells 36pcs

Max. Power 250W

Specifications

Custom Solar Power Panels
1,Certification:CE, ISO 9000,ROHS
2,120W/18V
3,High efficiency:17%

Custom Solar Power Panels

ITEM NO.:	NZX-250WP36V
Solar Cell:	156*156 Poly
Maximum Power(W)	120w
Optimum Power Voltage(Vmp)	18V
Optimum Operatige Current(Imp)	6.67
Open Circuit Voltage(Voc)	43.6
Short Circuit Current(Isc)	7.98
Nmber of Cell(pcs)	4*9
Size of Module(mm)	195699250
Front Glass Thikness(mm)	3.2
Maxium System Voltage (V)	1000
Temperature Coefficients of Isc(%)	+0.10
Temperature Coefficients of Voc(%)	-0.38
Temperature Coefficients of Pm(%)	0.047
Temperature Coefficients of Im(%)	+0.10
Temperature Coefficients of Vm(%)	-0.38
Temperature Range	-40°C to +85°C
Tolerance Wattage(e.g.+/-5%)	±5%
Surface Maximum Load Capacity	2400Pa
Allowable Hail Load	23m/s ,7.53g
Weight Per Piece(KG)	23
Frame(Material Corners,etc.)	Anodized Aluminum Alloy
Backing (Brand Type)	TPT
Warranty	3 years for the whole product, for the power,90% for 10 years, 80% for 25 years
Standard Test Conditions	AM1.5 1000W/ 25 +/-2°C
FF (%)	71.8%
