Help Center180W Solar Modules
US$ 0.9 - 1.3
MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
NZX
Model Number:
NZX-180WP27V
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Custom Solar Power PanelsUS$ 399.99 - 450.59MOQ: 50 Pieces -
185W Mono Solar PV PanelUS$ 296 - 333MOQ: 50 Pieces
-
185w Solar PanelUS$ 0.8 - 1.2MOQ: 20 Pieces
-
Solar Power ModulesNegotiableMOQ: 100 Pieces
-
2016 Glass Laminated 12V 120W Sunpower Solar Panel With CE ROHSUS$ 0.9 - 1.1MOQ: 6000 Watts
Place of Origin
Guangdong, China
Brand Name
NZX
Model Number
NZX-180WP27V
Material
Polycrystalline Silicon
Size
1580*808*40mm
Number of Cells
72pcs
Max. Power
180W
Specifications
180W Solar Modules1, Certification:CE,ROHS,ISO9001
2, Power:180W/36V
3, High efficiency:17%

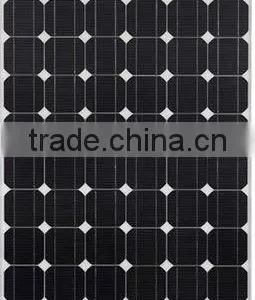

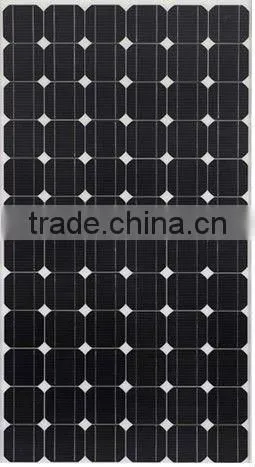

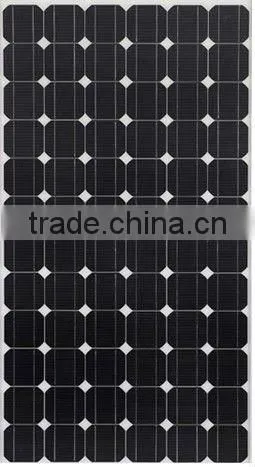

180W Solar Modules
Descriptions:
| ITEM NO.: | NZX-180WP36V |
| Solar Cell: | 125*125 Poly |
| Maximum Power(W) | 180w |
| Optimum Power Voltage(Vmp) | 38.2 |
| Optimum Operatige Current(Imp) | 4.74 |
| Open Circuit Voltage(Voc) | 44.6 |
| Short Circuit Current(Isc) | 5.23 |
| Nmber of Cell(pcs) | 6*12 |
| Size of Module(mm) | 1580*808*40 |
| Front Glass Thikness(mm) | 3.2 |
| Maxium System Voltage (V) | 1000 |
| Temperature Coefficients of Isc(%) | +0.10 |
| Temperature Coefficients of Voc(%) | -0.38 |
| Temperature Coefficients of Pm(%) | 0.047 |
| Temperature Coefficients of Im(%) | +0.10 |
| Temperature Coefficients of Vm(%) | -0.38 |
| Temperature Range | -40°C to +85°C |
| Tolerance Wattage(e.g.+/-5%) | ±5% |
| Surface Maximum Load Capacity | 2400Pa |
| Allowable Hail Load | 23m/s ,7.53g |
| Weight Per Piece(KG) | 17 |
| Frame(Material Corners,etc.) | Anodized Aluminum Alloy |
| Backing (Brand Type) | TPT |
| Warranty | 3 years for the whole product, for the power,90% for 10 years, 80% for 25 years |
| Standard Test Conditions | AM1.5 1000W/ 25 +/-2°C |
| FF (%) | 75.5% |
