Continuous Feed Auger Top Selling, Screw Conveyor for sale
Negotiable
/ Set
1 Set(Min. Order)
- Shanghai Tianjin Qingdao etc.
- T/T Credit Card
You May Like
-
Low Cost Advanced Technology Building Equipment Screw Conveyor
-
Good Sealing Continuous Spiral Machine Conveyor for Sale
-
Famous Screw Conveyor with Reliable Sealing Performance
-
Durable Grain Screw Auger Conveyor
-
Professional!!! Cement Auger Screw Conveyor, Screw Conveyor for Cement Silo
-
Stainless Steel Spiral Screw Conveyor
Product Details
| Condition | New | Type | Screw Conveyor | |
| Material | Stainless Steel | Material Feature | Heat Resistant | |
| Structure | Other, Screw Conveyor | Load Capacity | 25-75 t/h | |
| Place of Origin | Henan, China | Model Number | LSY Series | |
| Voltage | 220V, 380V, or customized | Power(W) | 5.5-18.5 kw | |
| Dimension(L*W*H) | Vary according to different models | Certification | ISO, CE | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Feed Auger
LSY Series
Product Description

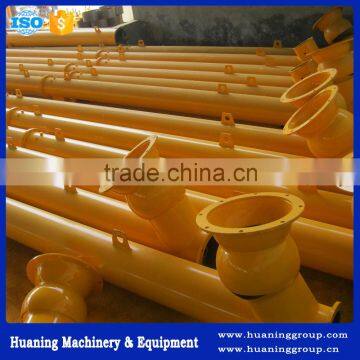

Pictures of Feed Auger, Screw Conveyor for sale
Overview of Feed Auger, Screw Conveyor for sale
- Feed Auger is a kind of continuous transmission equipment and it uses rotation screw to convey materials. It allows multiple inlets and outlets. It is ideal for loose materials in the shape of powder and particles, such as cement, fly ash, sand, stone powder, grain, etc. But this machine is not suitable for materials featured by large viscidity, caking, or perishable.
- Working angle of Feed Auger is in the range 0~45°. It can be used together with other conveyor devices. In concrete mixing plant, screw convey is ideal for conveying cement from cement silo to mixing machine and from cement silo to batching machine.
Features of Feed Auger, Screw Conveyor for sale
- Adopt double-pitch paddles, which decrease the compression degree of material when being transported.
- Good seal performance, totally enclosed design for dust and vapor-tight requirements
- Flexible technological arrangement, easy to be installed, dismantled, and moved, safe operation
- Equipped with high-quality middle-hoisting bearing and tail bearing.
- Continuous feeding can be realized whether horizontally or in a large inclined angle.
- Compact structure, small cross section, light weight
Parameters
Parameters of Feed Auger, Screw Conveyor for sale
Model | LSY165 | LSY219 | LSY273 | LSY325 |
Shell Diameter(mm) | 165 | 219 | 273 | 325 |
Screw Diameter(mm) | 135 | 189 | 243 | 295 |
Conveying Length(m) | 2-12 | 2-12 | 2-12 | 2-12 |
Rotation Speed (r/min) | 300 | 200 | 209 | 174 |
Working Angle (°) | 0-45 | 0-45 | 0-45 | 0-45 |
Conveying Capacity (t/h) | 25 | 35 | 50 | 75 |
Motor Type | Y100L-4 | Y132M-4 | Y160M-4 | Y180M-4 |
Motor Power (kw) | 5.5-7.5 | 5.5-11 | 7.5-15 | 7.5-18.5 |
Details of Feed Auger
Our Services
Company Information
- HenanHuaning Machinery & Equipment Co., Ltd is one of the large-scale enterprises of construction machinery. It is specialized in manufacturing and selling concrete equipment for more than 20 years. Up to now, we already have 14 experienced engineers and 180 staffs.
- All our products have passed ISO9001 International Quality System Certification and high product quality wins the trust from most customers.
- Our main products are: Concrete Mixing Plant (HZS25, HZS35, HZS50, HZS60, HZS75, HZS90, HZS120, HZS180); Concrete Mixer (JS Series, JDC Series, JZC Series, JZM Series, JW Pan Concrete Mixer, Diesel Engine Concrete Mixer); Concrete Batching Machine; Screw Conveyor; Cement Silo; JZ350 Mortar Mixer; etc.
Display of Our Main Products:
Contact Us
- Henan Huaning Machinery Equipment Co., Ltd.
- Contact nameMandy Zhang Chat Now
- Phone0086-371-18503845123
- Addressxingyangshiwulonggongyequ, Zhengzhou, Henan
