- Belt conveyor with 2 years warranty
-ISO9001:2008,BV,SGS
-Competitive price
-30 years production experience

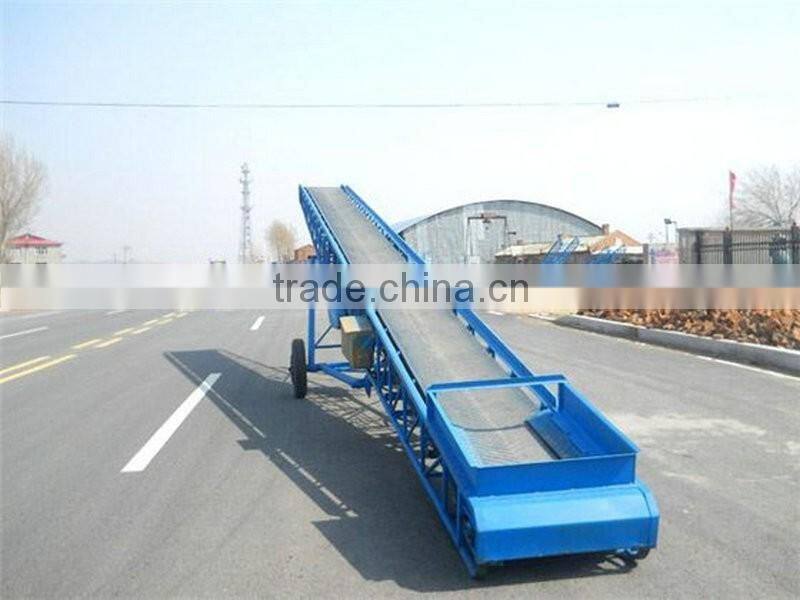

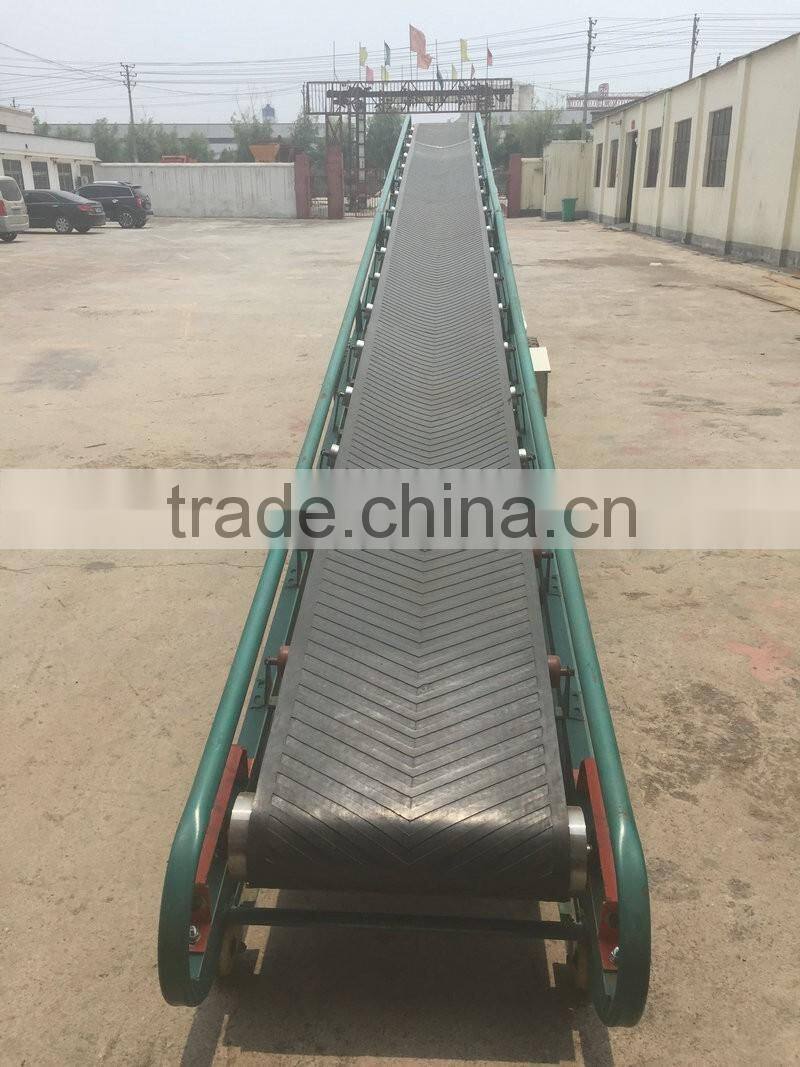

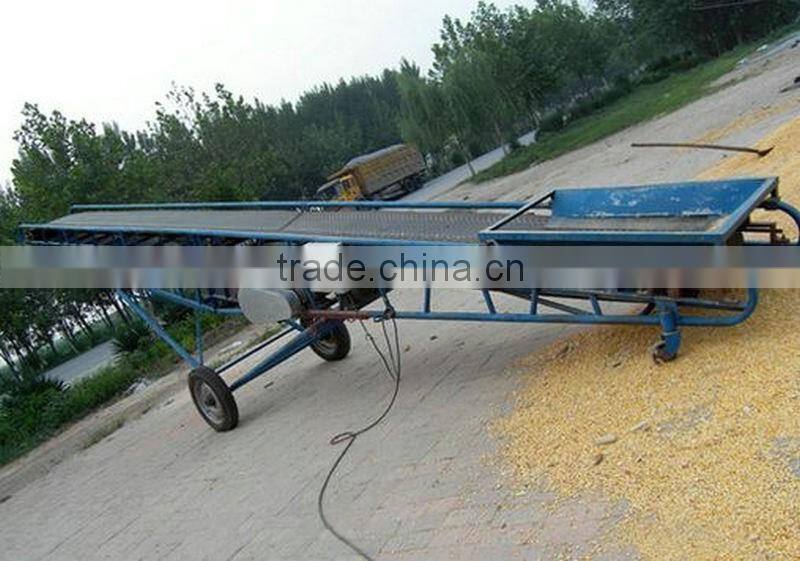

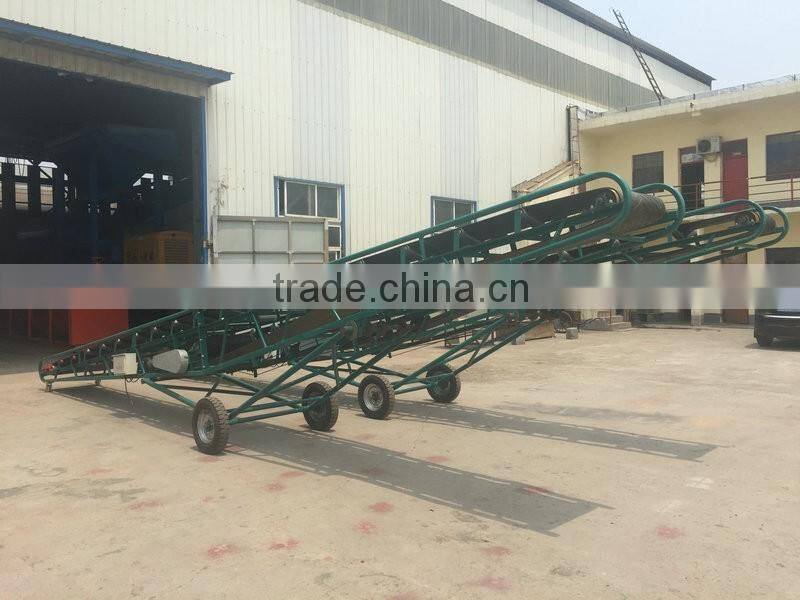

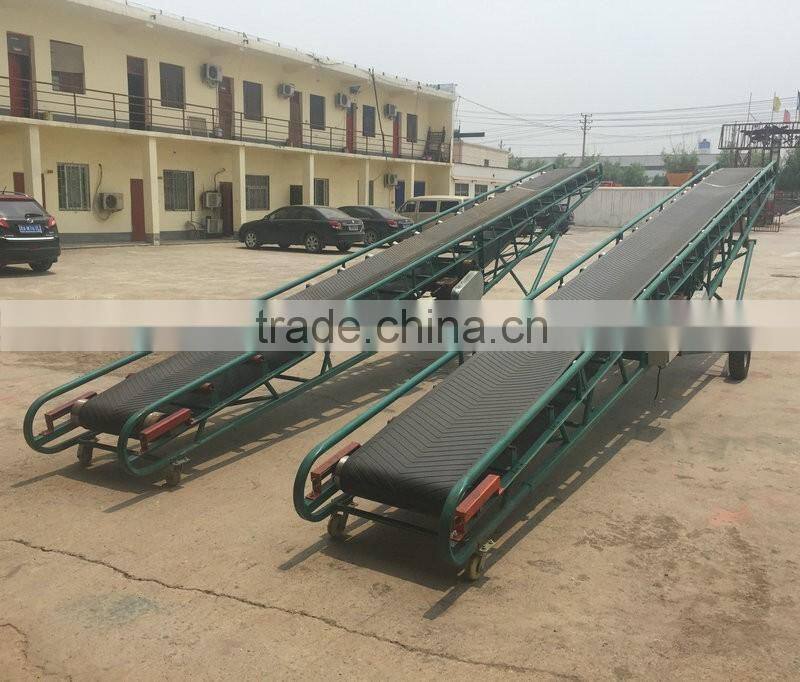

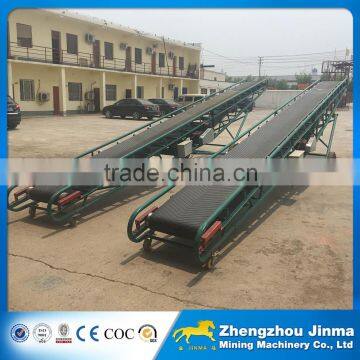

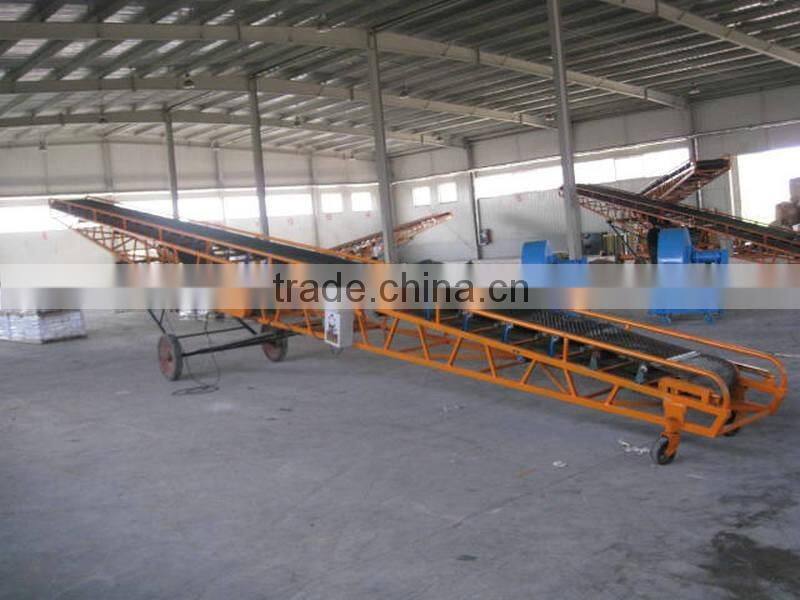

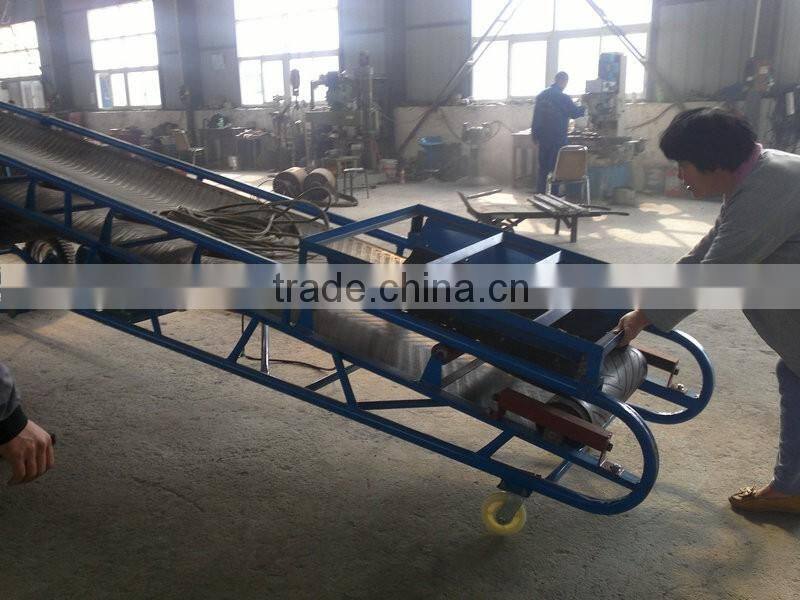

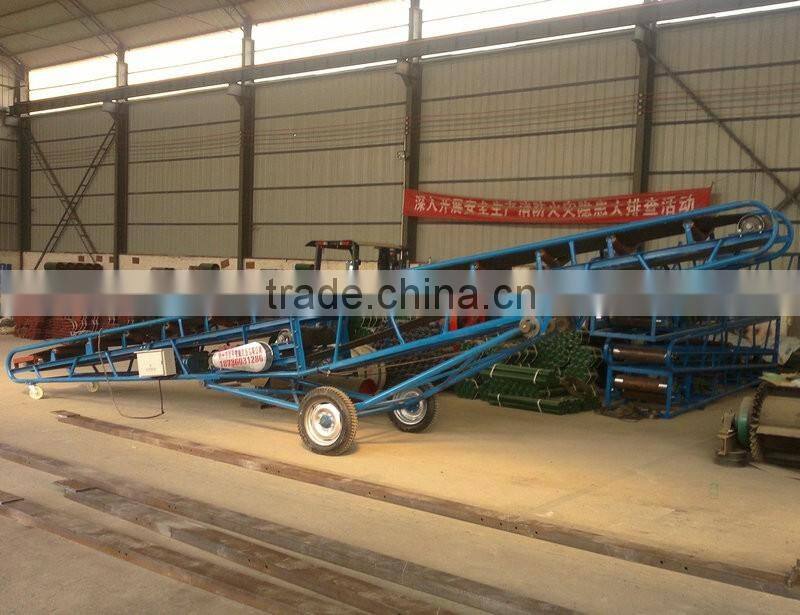

Portable belt conveyor:
Portable belt conveyor also named mobile belt conveyor, a new type of belt conveyor. The main components of the belt conveyor is same with the common type belt conveyor, but the common type can not move, and it is heavy duty belt conveyor. Portable belt conveyor is light weight and portable, applicable in bulk loading, transport packaging, etc, the maintenance is easy.
Belt fabric types: EP, food grade PVC, PU, PP or other material.
Belt-driven: chain wheel, gear motor drive or electric drum drive.
Belt speed: adjustable with variable speed motor.
Rollers shape: trough, flat.
Trough roller frame spacing: 300mm-1000mm, or as request.
Rollers materails: stainless steel, carbon steel or as request.
Frame material: carbon steel, stainless steel, aluminum, as request.
Drive motor: Siemens brand, Chinese famous brand, or as request.
Belt tension/adjustment: tail drum.
Advantages of belt conveyor
The belt conveyor manufactured by our company has the advantages of big conveying capacity, simple structure, convenient repair and standard parts, so it is widely used in the industries of mine, metallurgy and coal to convey loose materials and finished products. According to different technique requirements, the machine can convey material singly or be formed conveying system with other conveying equipments to meet different requirements of working line.
Accessory of belt conveyor
1. The conveying quantity is worked out by the following conditions: material density is between 1.0t/m3-1.6t/m3; conveyor obliquity is less than 18° and the material stockpile angle is 30°.
2. Density of material is less than 2.5t/m³.
3. The conveying length isn’t restricted to the form; different length can be manufactured according to customers' demands.
Belt conveyor feature
The belt conveyor manufactured by our company has the advantages of big conveying capacity, simple structure, convenient repair and standard parts, so it is widely used in the industries of mine, metallurgy and coal to convey loose materials and finished products. According to different technique requirements, the machine can convey material singly or be formed conveying system with other conveying equipments to meet different requirements of working line.
The working temperature is from -200C to +400C and the temperature of conveying material is under 500C.
Belt conveyor technical parameters
|
belt width (mm) |
Transmission length(m) Power(kw) |
Transmission speed (m/s) |
Capacity (t/h) |
||
500 |
≤12 3 |
20-30 4-5.5 |
20-30 5.5-7.5 |
1.3-1.6 |
78-191 |
650 |
≤12 4 |
12-20 5.5 |
20-30 7.5-11 |
1.3-1.6 |
131-323 |
800 |
≤6 4 |
6-15 5.5 |
15-30 7.5-15 |
1.3-1.6 |
278-546 |
1000 |
≤10 5.5 |
10-20 7.5-11 |
20-40 11-12 |
1.3-2.0 |
435-853 |
1200 |
≤10 7.5 |
10-20 11 |
20-40 15-30 |
1.3-2.0 |
655-1284 |
1400 |
≤10 7.5-11 |
10-20 11-18.5 |
20-40 18.5-37 |
1.3-2.0 |
800-1950 |
1600 |
≤10 11 |
10-20 11-22 |
20-40 18.5-45 |
1.3-2.0 |
1200-2600 |
1800 |
≤10 15 |
10-20 15-30 |
20-40 22-55 |
1.3-3.15 |
1500-3500 |
2000 |
≤10 18.5 |
10-20 18.5-37 |
20-40 30-75 |
1.3-3.15 |
1800-4000 |

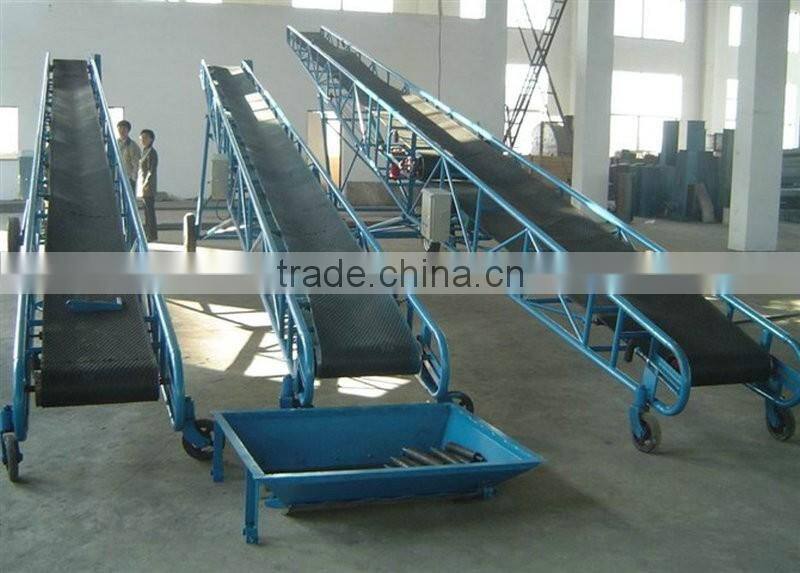

Portable belt conveyor:
Zhengzhou Jinma mining machinery
Company development:Established in 1976 .
Company Tenet: Clients' interests first, quality first, after-sales service first
Company spirit:Founding Integrity, Innovation Forever
Company philosophy: Jinma makes employees as fundamental, as quality to development, improve benefit by management, with innovation to develop market, in good faith to famous brand and use good service to make development.
Company strategy: Advanced, scientific, novelty and practicability.
Company Goal:We manufacture lean products, To provide higher quality products to customers more high-quality service.
we can enable them to get rich and generous returns on their investments:
1 Select equipment model;
2 Design and manufacture products according to clients' special requirement;
3 Train technical personnel for clients.
If you need more details, welcome contact us any time!
