Professional!!! Cement Auger Screw Conveyor, Screw Conveyor for Cement Silo
Negotiable
/ Set
1 Set(Min.Order)
- 800 Set / Sets per Month
- Shanghai Tianjin Qingdao etc
- T/T Credit Card
You May Like
Product Details
| Condition | New | Type | Screw Conveyor | |
| Material | Stainless Steel | Material Feature | Heat Resistant | |
| Structure | Other, Srew Conveyor | Load Capacity | 25-75 t/h | |
| Place of Origin | Henan, China | Brand Name | Huaning Screw Conveyor | |
| Model Number | LSY Series | Voltage | 220V, 380V, or customized | |
| Power(W) | 5.5-18.5kw | Dimension(L*W*H) | Vary according to differeernt models | |
| Certification | ISO, CE | After-sales Service Provided | No overseas service provided |
Product Description

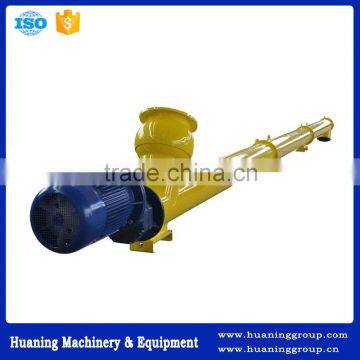

Cement Auger Screw Conveyor, Screw Conveyor for Cement Silo
Brief Introduction of Cement Auger Screw Conveyor, Screw Conveyor for Cement Silo
- Screw conveyor is a new delivery device, pushing the materials continuous by the spiral rotary blades in the closed housing of circular cross-section. It's ideal for transporting kinds of bulk powser and particles, such as cement, fly ash, sand, stone powder, grain, etc. But this machine is not suitable for materials featured by large viscidity, caking or perishable.
- It is particularly suitable for the cement transmission from cement silos to concrete mixer.The working angle is generally between 0-45degrees.
Features of Cement Auger Screw Conveyor, Screw Conveyor for Cement Silo
- It is featured with compact structure, small cross-sectional area, lightweight, good sealing, high efficiency, ssafe operation, flexible process layout, installation, demotion, etc.
Main Technical Parameters of Cement Auger Screw Conveyor, Screw Conveyor for Cement Silo
Model | LSY165 | LSY219 | LSY273 | LSY325 |
Shell Diameter(mm) | 165 | 219 | 273 | 325 |
Screw Diameter(mm) | 135 | 189 | 243 | 295 |
Conveying Length(m) | 2-12 | 2-12 | 2-12 | 2-12 |
Rotation Speed (r/min) | 300 | 200 | 209 | 174 |
Working Angle | 0-45 | 0-45 | 0-45 | 0-45 |
Conveying Capacity (t/h) | 25 | 35 | 50 | 75 |
Motor Type | Y100L-4 | Y132M-4 | Y160M-4 | Y180M-4 |
Motor Power (kw) | 5.5-7.5 | 5.5-11 | 7.5-15 | 7.5-18.5 |
Our Services
Company Information
- Henan Huaning Machinery & Equipment Co., Ltd is one of the large-scale enterprises of construction machinery. It is specialized in manufacturing and selling concrete equipment for more than 20 years. Up to now, we already have 14 experienced engineers and 180 staffs.
- All our products have passed ISO9001 International Quality System Certification and high product quality wins the trust from most customers.
- Our main products are: Concrete Mixing Plant (HZS25, HZS35, HZS50, HZS60, HZS75, HZS90, HZS120, HZS180); Concrete Mixer (JS Series, JDC Series, JZC Series, JZM Series, JW Pan Concrete Mixer, Diesel Engine Concrete Mixer); Concrete Batching Machine; Screw Conveyor; Cement Silo; JZ350 Mortar Mixer; etc.
