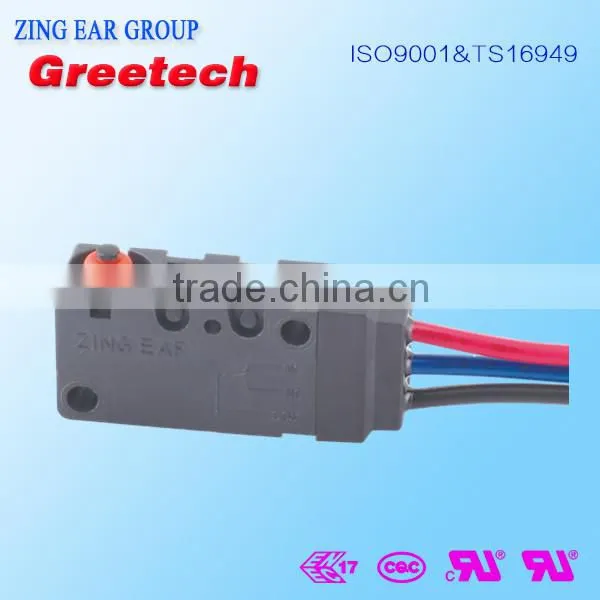

Zing Ear Limit Switch Push Button Micro Switch Cross Reference, CUL, UL, ENEC, CQC Approved
US$ 1.03 - 1.76
MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
ZING EAR
Model Number:
G5W11-WZ015-W1
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen Guangzhou HK
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
1a 125vac Micro Switch, Miniature Kw3 oz 4 Pins Micro Switch, Trade AssuranceUS$ 1.03 - 1.76MOQ: 100 Pieces -
Latching Micro Switch, Zing Ear Push Button Cross Reference Waterproof Micro Switch 12vUS$ 1.03 - 1.76MOQ: 100 Pieces
-
Greetech Micro Switch Kw3a 10t105, 250v ac Smd Push Button Micro SwitchUS$ 1.03 - 1.76MOQ: 100 Pieces
-
Roller Lever Type Waterproof 0.1a 125vac T85 UL Approved Micro SwitchUS$ 1.03 - 1.76MOQ: 100 Pieces
-
Kw4a(s) 10t85 Micro Switch, Zing Ear 4 Pins 250v ac Limit Switch Micro SwitchUS$ 1.03 - 1.76MOQ: 100 Pieces
Place of Origin
Guangdong, China
Brand Name
ZING EAR
Model Number
G5W11-WZ015-W1
Max. Current
0.1A
Max. Voltage
125/250VAC 48VDC
Operating Temperature
-40℃~+85℃
Protection Level
IP67
zing ear limit switch push button micro switch cross reference, CUL, UL, ENEC, CQC approved
Product Description
Feature
-Designed for water and dust tight(IP67)
-Tight Structure, Small Contact Gap Snap Action, High Sensitivity
-Global safety approvals
-Long life and High Precision and Reliability
-Variety of levers
-Widely used in Automotive Electronics, Appliance and Industrial Control etc.
-Max Approved Current at ENEC/UL is 10A
Drawing

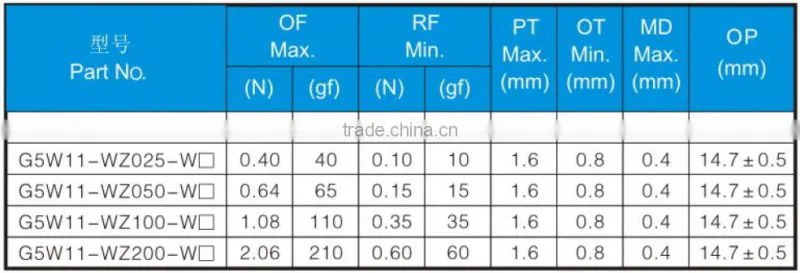

Operating parameters
Parameters
|
W1 | ENEC: 0.1A 48VDC, 0.1A 125/250VAC,40T85,5E4,u UL:0.1A 48VDC,0.1A 125/250VAC,T85 | |||||||||
| W2 | ENEC: 5A 125/250VAC,5A, 30VDC,40T85,5E4, u UL:5A 125/250VAC,T85 | ||||||||||
| W3 | ENEC:10(2)A 125/250VAC, 0.5A 125VDC, 0.25A 250VDC,40T85,u,2E4 UL:10.1A 1/10HP 125/250VAC,0.5A 125VDC, 0.25A 250VDC, T85 | ||||||||||
| Operating Frequency |
|
10~30 times/min | |||||||||
| Mechanical | times/min | ||||||||||
| Contact Resistance(intial value) | with terminal | 50mΩMax | |||||||||
| with wire | 100mΩ Max(Depends on the length of the wire) | ||||||||||
| Insulation resistance | at 500VDC,100MΩ Min. | ||||||||||
| Dielectric Strength | Between terminals | AC 1000V 50-60Hz 1min | |||||||||
| Between terminals and housing | AC 1500V 50-60Hz 1min | ||||||||||
| Storage Temperature | -40°C~+85°C | ||||||||||
| Strorage Humidity | 85%RH Max | ||||||||||
| Protection grade | With terminal | IEC IP67(Terminal not included) | |||||||||
| With wire | IEC IP67 | ||||||||||
| Electric-shock safeguard grade | Class I | ||||||||||
| PTI | 250 | ||||||||||
| Life | E-life | 2E4~10E4 cycles(depends on P/Ns) | |||||||||
| M-life | over 1000,000cycles(60cycles/min) | ||||||||||
| Weight | Approx.7g(with terminal and without lever) | ||||||||||
Application
-Elctronic Devices -Electric Tooth Brush
-Automatic Equipments -Auto Electronics
-Agriculture Equipments -Home Appliance
-Office Equipments
Related products
Packaging & Shipping
Packing list
| No. | Greetech Product | Inner Box | Shipper Carton | MPQ | ||||||
| Inner box size(mm) | Q'ty/ | Total GW(kgs) | Carton size(mm) | Q'ty/ctn | Total GW(kgs) | MOQ | L/T | Total GW(kgs) | ||
| (pcs) | (pcs) | (pcs) | (Days) | |||||||
| 1 | G3 series(terminal type) | 310x215x135 | 3,360 | 3.9 | 440x325x300 | 13,440 | 15.3 | 1,000 | 15 | 1.2 |
| 2 | G5 series | 310x250x120 | 600 | 5.5 | 330x270x270 | 1,200 | 10.8 | 1,000 | 15 | 9 |
| 3 | G5W11 series | 310x215x135 | 200 | 4.8 | 440x325x300 | 800 | 19.2 | 100 | 10 | 2.5 |
| 4 | G6 series | 290x192x40 | 500 | 1.3 | 400x305x220 | 5,000 | 12.5 | 1,000 | 15 | 2.7 |
| 5 | G9 series(terminal type) | 290x192x40 | 500 | 1.3 | 400x305x220 | 5,000 | 12.5 | 1,000 | 15 | 2.7 |
| 6 | G91 series | 290x192x40 | 500 | 1.3 | 400x305x220 | 5,000 | 12.5 | 1,000 | 15 | 2.7 |
| 7 | G10 series | 290x192x40 | 600 | 1.3 | 400x305x220 | 6,000 | 12.5 | 1,000 | 15 | 2.7 |
| 8 | GT02 series | 210x155x55 | 300 | 1.2 | 440x325x285 | 6,000 | 12 | 6,000 | 15 | 12 |
| 9 | GPS100 series | / | / | / | 330*270*270 | 60 | 6.1 | 60 | 10 | 6.1 |
| 10 | Switch with wire leads | 310x215x135 | 100 | 1.8 | 440x325x300 | 800 | 14.5 | 800 | 20 | 14.5 |
Shipping way
Company Information
Greetech Advantages:
1. ISO9001 & TS16949 qualified
2. Most products are produced & tested by automatics
3. Automatic machines are designed and assembled by our own team
4. Awarded as National Innovative Technology Company
5. Strong R&D team, authorized over 30 patents
6. UL, cUL, ENEC & CQC Certificated, 100% RoHS & Reach compliance
Certificates
Business partners
Distributors Wanted
Trade Records
Exhibitions & Customer visiting
FAQ
Q1. Are you a trading company or manufacturer?
A: Yes. We are a manufacturer specializing in switches over 30 years.
Q2. What is your MOQ?
A : Normally, MOQ=100pcs.
Q3. What’s the warranty time?
A: 1 - 2 years.
Q4. Could you offer us free samples?
A: Yes, free samples could be provided within 2-5 days.
Q5. What ‘s the lead time of mass production?
A : About 2-4 weeks.
Q6. What’s the capacity per month?
A : Over 8 million pieces per month for micro switch series.
Over 20 million pieces per month for keyboard switch series.
Q7. Where is your plant?
A: Located in Huizhou city, Guangdong province, China.
About 70 minutes by car from Shenzhen airport and about 2 hours from HK airport.
Q8 . Could you accept OEM or ODM?
A : Yes, we have a strong R&D team. We have rich experience on OEM&ODM.
