US$ 0.2 - 0.5
MOQ: 1200 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
ZING EAR
Model Number:

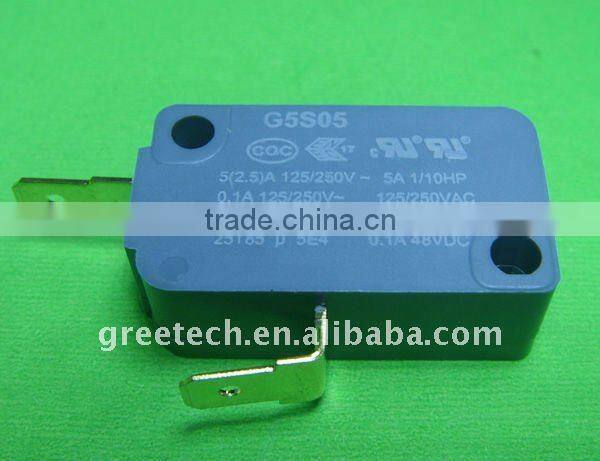

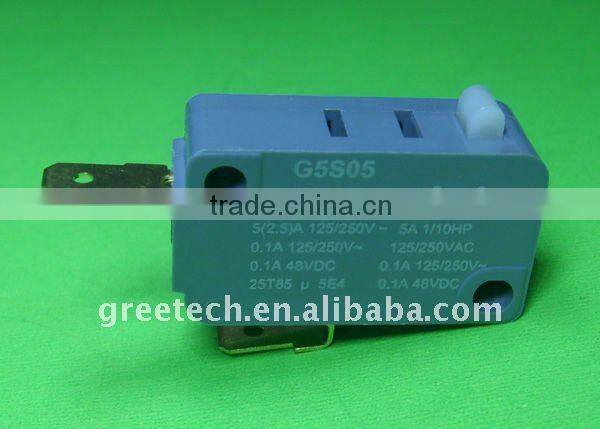

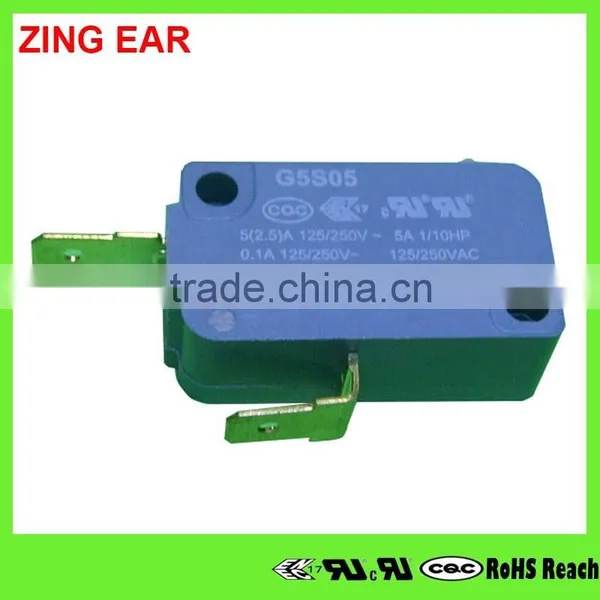

G5S05-E1C015-03
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen Guangzhou
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
250v Home Electrical Power Tool SwitchUS$ 0.11 - 2.55MOQ: 5000 Pieces -
Roller Type Rubber Snap Action Micro Waterproof Switch 12vUS$ 1.03 - 1.76MOQ: 100 Pieces
-
Roller Lever Plastic Pin Plunger Snap Spdt Waterproof Miniature Kw3 oz 4 Pins Micro SwitchUS$ 1.03 - 1.76MOQ: 100 Pieces
-
Roller Type Rubber Sealed Self-locking Push Button Kw3a 10t105 2 Pins Micro SwitchUS$ 1.03 - 1.76MOQ: 100 Pieces
-
Roller Type Rubber Waterproof Mouse Micro SwitchUS$ 1.03 - 1.76MOQ: 100 Pieces
Place of Origin
Guangdong, China
Brand Name
ZING EAR
Model Number
G5S05-E1C015-03
Max. Current
0.1/5A
Max. Voltage
125/250VAC
1. Global safety approval:
ENEC No.:1817
UL No.:E89885
Rohs report No.: RLSZC00060788
CQC No.:CQC08003022100
2. High quality and high reliability
3. Operating force could be 15gf max,7gf min
4. 5A 1/10HP,125/250VAC micro switch

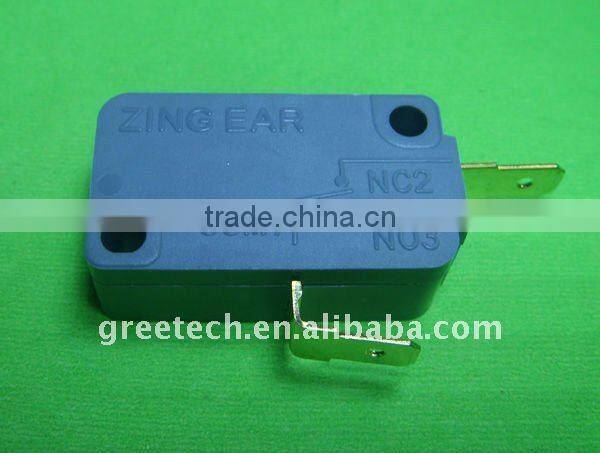

5.SPST-NC MICRO SWITCHES
6.with quick connect terminals

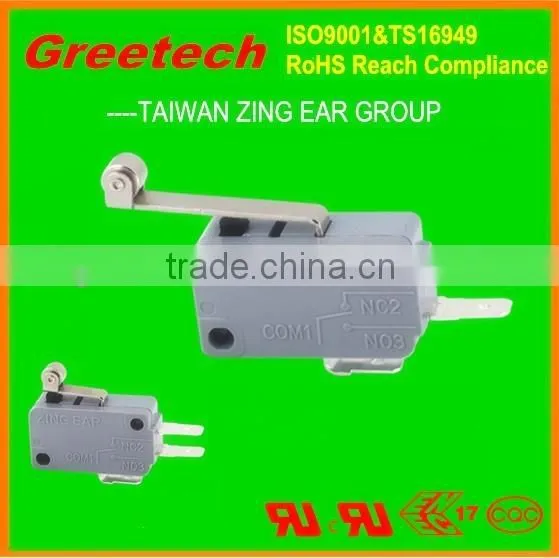

5. Different lever optional
| Operating speed | 0.1mm-1m/s( Related with actuator forms) | |
| Operating frequency | Mechanical 60 cycles/min; Electrical 15 cycles/min. | |
| Insulation resistance | ≥100MΩ (500VDC) | |
| Contact resistance | ≤100MΩ (Initial value) | |
Test Voltage | Between each terminals of the same polarity | AC1000V,50/60HZ, 1min. |
| Between current-carrying metal part and ground.and between each terminal and non-current-carring metal parts | AC1500V, 50/60HZ, 1min. | |
| Vibration resistance | 10-55HZ, 1.5mm Double amplitude | |
| Shock resistance | Destruction: OF>0.5N:1000m/s2 (approx.100G)max. | |
| Destruction:OF>0.5N:200m/s2 (approx.20G)max. | ||
| Life expectancy | Mechanical ≥ 10,000,000cycles or 1,000,000cycles | |
| Electrical ≥ 50,000cycles or 100,000cycles | ||
| Weight | Approx. 6.2g(No lever). | |
