High Capacity HZS90 Batching Plant 90 m3 for Sale
- 198 Set / Sets per Month
- Shanghai Tianjin Qingdao etc.
- T/T Credit Card
- SHANTUI JANEOO Field-Mix Concrete Batching Plant HZS50-2H
- SHANTUI JANEOO MOBILE CONCRETE MIXING PLANT HZS050-3Y
- hzs180 giant concrete batching plant complete concrete mixer plant on market
- complete set hzs180 big size concrete batching plant used for construction
- competitive price hzs180 concrete batching plant with sicoma mixer
- high performance 180m3/h capacity concrete batching plant with conveyor belt
Product Details
Condition: | New | Power Type: | Electric | Place of Origin: | Henan, China |
Model Number: | HZS90 | Power(W): | 145 kw | Dimension(L*W*H): | 58555x12376x18704 mm |
Weight: | 60 t | Certification: | ISO | Warranty: | 12 Months |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Batching Plant 90 m3
HZS Series

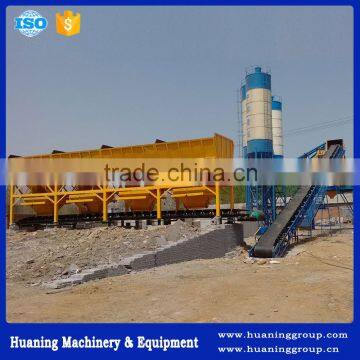

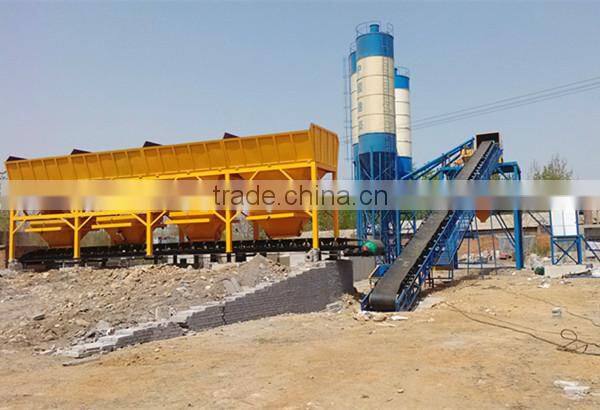

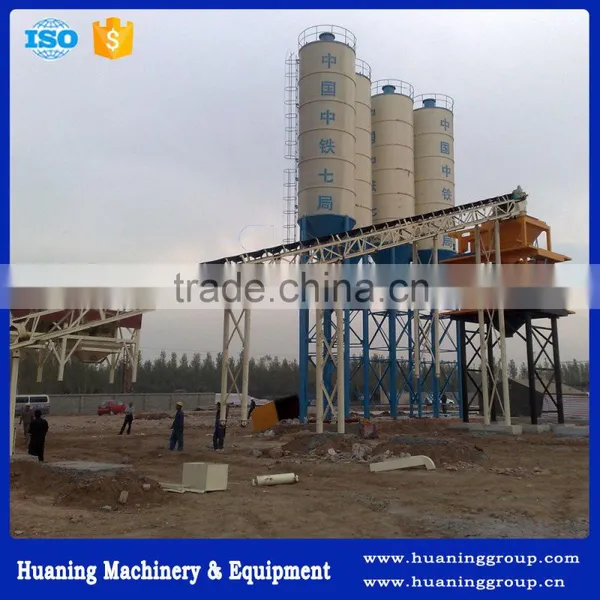

Picture Display of Concrete Batching Plant 90 m3
Quick Information of HZS90 Concrete Batching Plant 90 m3
- Maximum Productivity: 90 m3/h;
- Discharge Height: 3.8 m, can be customized;
- Main Machine: JS1500 twin-shaft forced concrete mixer
- Batching Machine: PLD2400 with the weighing hopper capacity reaching 2400 L.
Brief Introduction of Concrete Batching Plant 90 m3

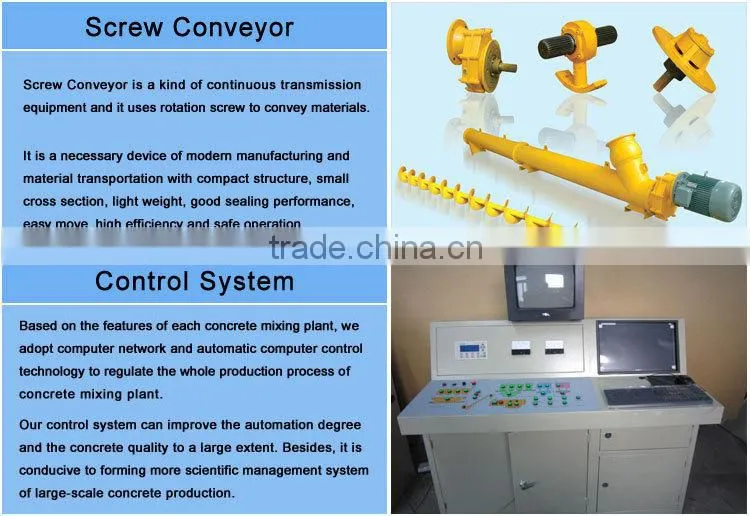

- HZS Batching Plant 90 m3 includes the cement silo, screw conveyor, belt conveyor, PLD batching machine, twin-shaft forced concrete mixing machine, computer controlling and measuring system, etc.
- And also there are manual control system, automatic head-drop compensation and aggregate moisture compensation.
- The Batching Plant 90 m3 can be used for industry, construction, road, railway, bridge, water conservation, ports, and so on. Working as the concrete mixing equipment, it can meet the requirements for different forms and specifications.
Structure of Concrete Batching Plant 90 m3
Characteristics of Concrete Batching Plant 90 m3
- The concrete mixer JS1500 (The main machine for the mixing plant) has the strong mixing ability with uniform mixing and high production output. The admixtures are widely mixed by the shafts, and reach the best proportional ratio of uniformity.
- The mixing shafts adapt anti-binding technology to prevent the cement from binding on the shafts.
- Mixing paddles, arms and blades are made of special high chromium and high manganese alloy materials. The wear resistance of the mixing paddles saves time and cost to replace, and at the same time, improves the machines durability and reliability;
- The greasing system, which is controlled by central control system, lubricates the greasing points at the fixed position, fixed time and fixed quantity;
- The opening of discharge gate can be adjusted by hydraulic system as per specific requirements.
Parameters of Concrete Batching Plant 90 m3
Model | HZS75 | HZS90 | HZS120 | ||
The Whole Station | Max. Productivity | 75 m3/h | 90 m3/h | 120 m3/h | |
Discharge Height | 3.8 m | 3.8 m | 4 m | ||
Working Cycle | 60 s | 60 s | 60 s | ||
Dimension (LxWxH) | 24350x10595x18704 mm | 58555x12376x18704 mm | 60120x13700x18704 mm | ||
Power | 120 kw | 145 kw | 210 kw | ||
Concrete Mixer | JS1500 | JS1500 | JS2000 | ||
Batching Machine | PLD2400 | PLD2400 | PLD3200 | ||
Pneumatic System | Air Compressor Model | 1.8-7 | 1.8-7 | 1.8-7 | |
Nominal Displacement | 1.67 m3/min | 1.67 m3/min | 1.67 m3/min | ||
Rated Discharge Pressure | 0.8 mpa | 0.8 mpa | 0.8 mpa | ||
Motor power | 11 kw | 11 kw | 15 kw | ||
Measurement Accuracy of Weighing System | Aggregate | ±2% | ±2% | ±2% | |
Cement | ±1% | ±1% | ±1% | ||
Water | ±1% | ±1% | ±1% | ||
Admixture | ±1% | ±1% | ±1% |
- Henan Huaning Machinery & Equipment Co., Ltd is one of the large-scale enterprises of construction machinery. It is specialized in manufacturing and selling concrete equipment for more than 20 years. Up to now, we already have 14 experienced engineers and 180 staffs.
- All our products have passed ISO9001 International Quality System Certification and high product quality wins the trust from most customers.
- Our main products are: Concrete Mixing Plant (HZS25, HZS35, HZS50, HZS60, HZS75, HZS90, HZS120, HZS180); Concrete Mixer (JS Series, JDC Series, JZC Series, JZM Series, JW Pan Concrete Mixer, Diesel Engine Concrete Mixer); Concrete Batching Machine; Screw Conveyor; Cement Silo; JZ350 Mortar Mixer; etc.
