Advanced Design HZS90 Belt Conveyor Type Concrete Mixing Plant for Sale

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Power Type:

Electric

Place of Origin:

Henan, China

Henan Huaning Machinery Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai; Tianjin; Qingdao; etc

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Power Type Electric

Place of Origin Henan, China

Model Number HZS90

Power(W) 145kw

Dimension(L*W*H) 58555*12376*18704mm

Weight 60T

Certification ISO 9001

Warranty 12 months

After-sales Service Provided Engineers available to service machinery overseas

Product Description

Specification of Advanced Design HZS90 Belt Conveyor Type Concrete Mixing Plant

Overview of Advanced Design HZS90 Belt Conveyor Type Concrete Mixing Plant

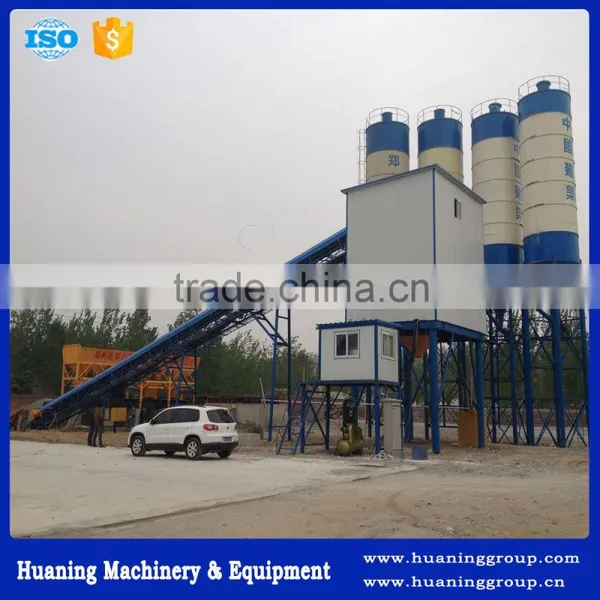

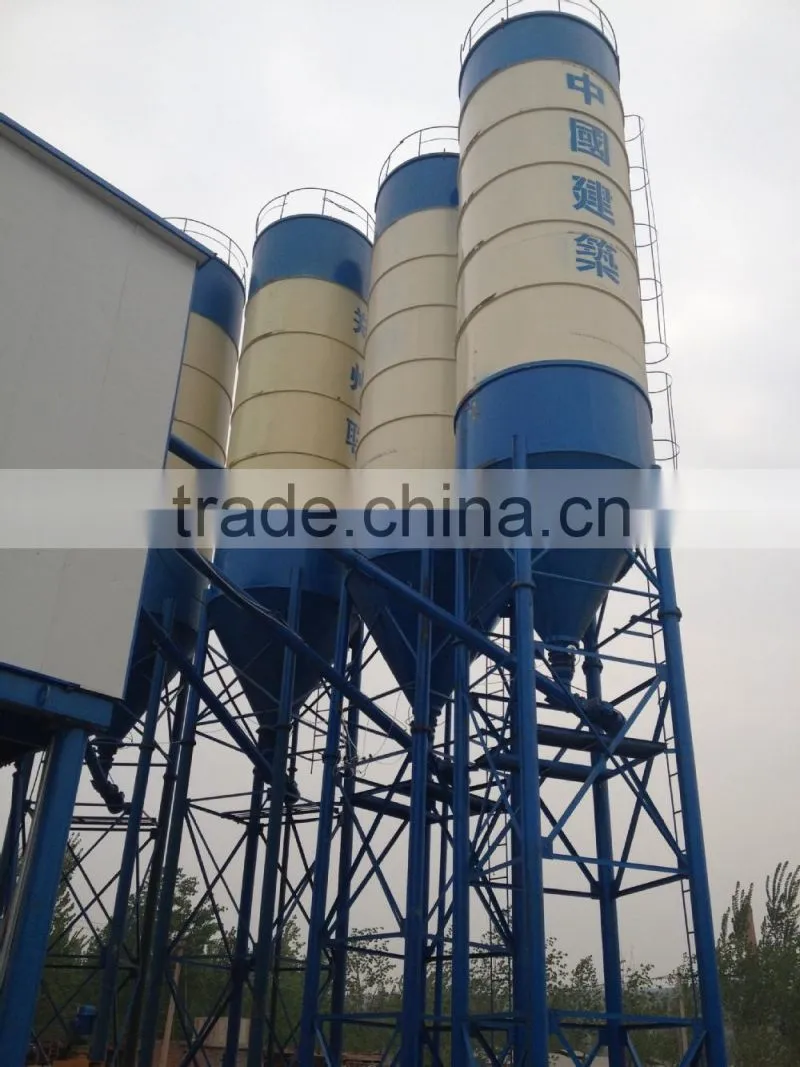

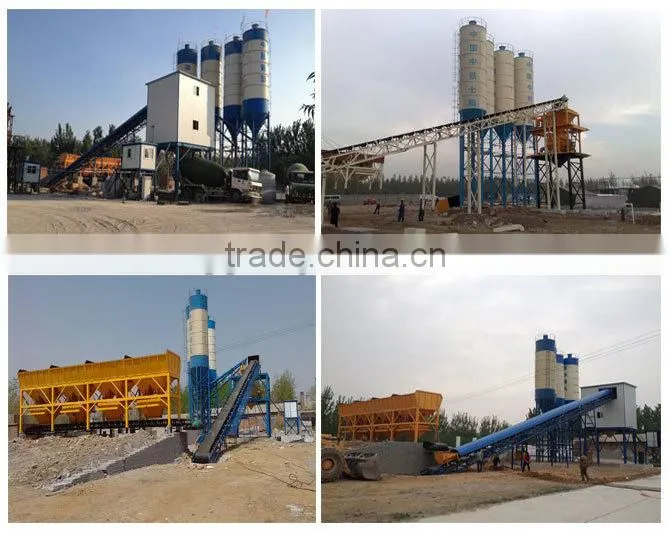

Belt conveyor type concrete mixing plant is mainly composed of PLD2400 batching machine, JS1500 forced concrete mixer, cement silos, automatic computer control system, electronic weighing system, belt conveyor and others.
It can mix fluidity concrete, plastic concrete, hard concrete and other proportioning concrete.
The Fixed Concrete Batching Plant can be used for industry, construction, road, railway, bridge, water conservation, ports, and so on.

Features of Advanced Design HZS90 Belt Conveyor Type Concrete Mixing Plant

Adopt JS1500 twin-shaft forced concrete mixer(the main machine of concrete batching machine) with high mixing quality and productivity.

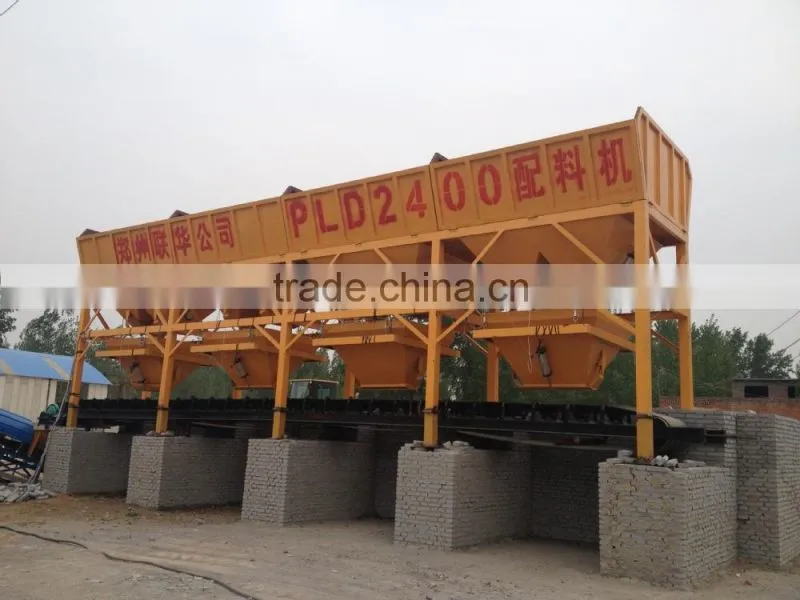

Aggregate adopts Batching machine, accurate measurement and high production efficiency.
Water supply system adopts the principle of pump pressure, the water flow speed spray evenly.
Water, concrete, water admixtures adopt independent electronic weighing, improving measurment accuracy.

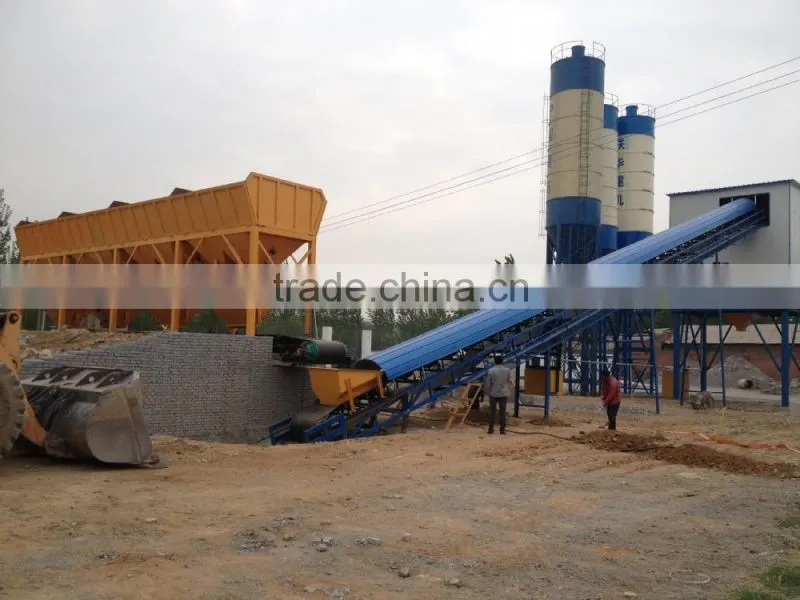

Belt conveyor with environmental external packing, reliable and smooth transmission, reduction of powder and noise pollution.
Automatic computer control system can vividly display the whole machine working condition, so that users control the machine and rule out troubles in time.

Main Technical Parameters of Advanced Design HZS90 Belt Conveyor Type Concrete Mixing Plant

Model			HZS90	HZS120	HZS180
The Whole Station	Max. Productivity		90 m3/h	120 m3/h	180 m3/h
	Discharge Height		3.8 m	4 m	4 m
	Working Cycle		60 s	60 s	60 s
	Dimension (LxWxH)		58555x12376x18704 mm	60120x13700x18704 mm	43538x24000x18704 mm
	Power		145 kw	210 kw	260 kw
Concrete Mixer			JS1500	JS2000	JS3000
Batching Machine			PLD2400	PLD3200	PLD4800
Pneumatic system	Air Compressor Model		1.8-7	1.8-7	1.8-7
	Nominal Displacement		1.67 m3/min	1.67 m3/min	1.67 m3/min
	Rated Discharge Pressure		0.8 mpa	0.8 mpa	0.8 mpa
	Motor power		11 kw	15 kw	15 kw
Measurement Accuracy of Weighing system		Aggregate	±2%	±2%	±2%
		Cement	±1%	±1%	±1%
		Water	±1%	±1%	±1%
		Admixture	±1%	±1%	±1%
