Specification of Reasonable Structure Electric Used Machinery Concrete Batching Plant 75m3/h
- Max. Productivity: 75m3/h
- Standard discharge height: 3.8m
- Work cycle time: 60s
- Screw conveyor: LSY273*8m
Overview of Reasonable Structure Electric Used Machinery Concrete Batching Plant 75m3/h

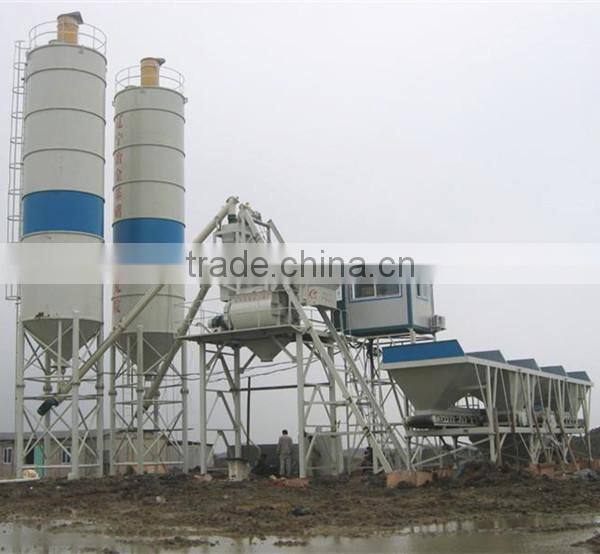

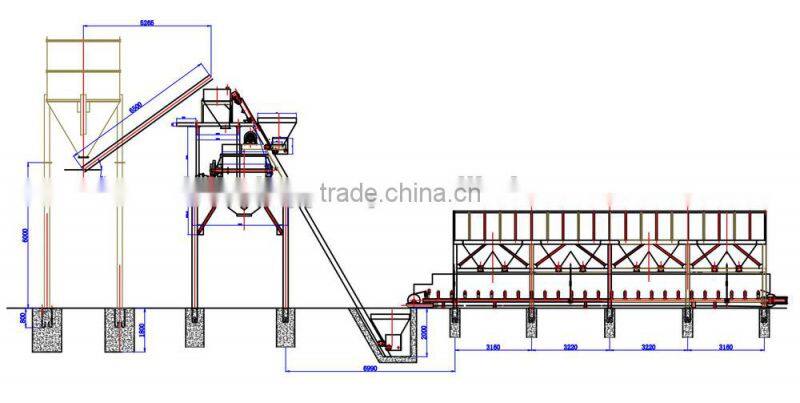

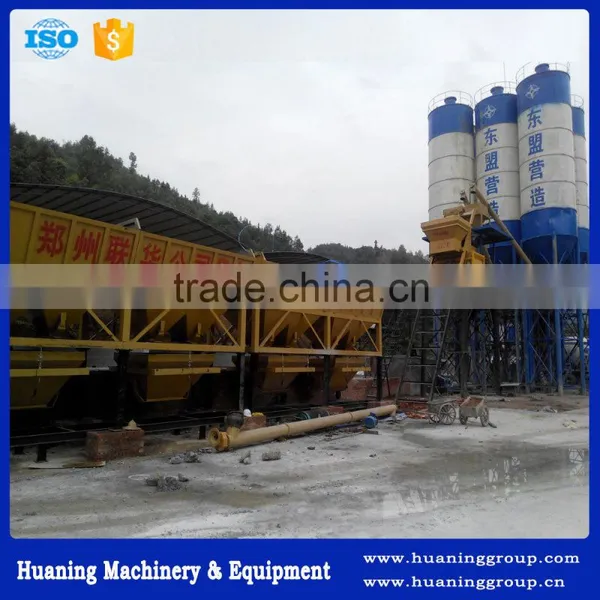

- Concrete batching plant is mainly composed of PLD2400 batching machine, JS1500 twin shafts forced concrete mixer, cement silos, automatic computer control system, electroic weighing and others.
- It can mix fluidity concrete, plastic concrete, hard concrete and other proportioning concrete.
- The Fixed Concrete Batching Plant can be used for industry, construction, road, railway, bridge, water conservation, ports, and so on.
Features of Reasonable Structure Electric Used Machinery Concrete Batching Plant 75m3/h
- Aggregate adopts Batching machine, accurate measurement and high production efficiency.
- Water supply system adopts the principle of pump pressure, the water flow speed spray evenly.
- Water, concrete, water admixtures adopt electronic weighing, ingredients of high precision.

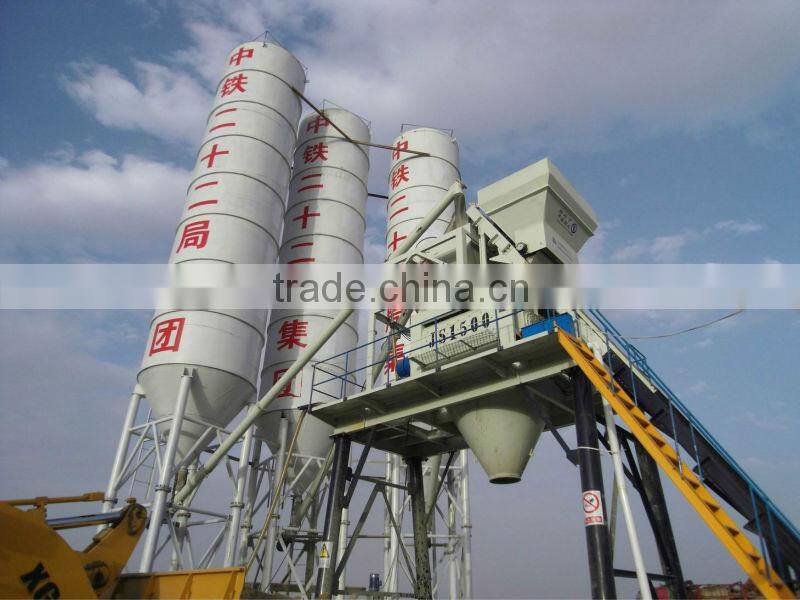

- JS1500 twin-shaft forced concrete mixer with high mixing quality and productivity.
- Advanced central control system with stable and high-precision compounding, advanced calculation method, effective control of error; fault diagnosis system help users rule out trouble; the flexible storage and can of formulas, users can call formula at any time.
Main Technical Parameters of Reasonable Structure Electric Used Machinery Concrete Batching Plant 75m3/h
Model |
HZS50 |
HZS60 |
HZS75 |
||
The Whole Station |
Max. Productivity |
50 m3/h |
60 m3/h |
75 m3/h |
|
|
Discharge Height |
1.5-3.8 m |
3.8 m |
3.8 m |
|
|
Working Cycle |
72 s |
60 s |
60 s |
|
|
Dimension (LxWxH) |
15922x13500x17750 mm |
28445x10595x18707mm |
24350x10595x18704 mm |
|
|
Power |
90 kw |
105 kw |
120 kw |
|
Concrete Mixer |
JS1000 |
JS1000 |
JS1500 |
||
Batching Machine |
PLD1600 |
PLD1600 |
PLD2400 |
||
Pneumatic system |
Air Compressor Model |
1.5-7 |
1.5-7 |
1.8-7 |
|
|
Nominal Displacement |
1.67 m3/min |
1.67 m3/min |
1.67 m3/min |
|
|
Rated Discharge Pressure |
0.8 mpa |
0.8 mpa |
0.8 mpa |
|
|
Motor power |
7.5 kw |
7.5 kw |
11 kw |
|
Measurement Accuracy of Weighing system |
Aggregate |
±2% |
±2% |
±2% |
|
|
Cement |
±1% |
±1% |
±1% |
|
|
Water |
±1% |
±1% |
±1% |
|
|
Admixture |
±1% |
±1% |
±1% |
|
- Henan Huaning Machinery & Equipment Co., Ltd is one of the large-scale enterprises of construction machinery. It is specialized in manufacturing and selling concrete equipment for more than 20 years. Up to now, we already have 14 experienced engineers and 180 staffs.
- All our products have passed ISO9001 International Quality System Certification and high product quality wins the trust from most customers.
- Our main products are: Concrete Mixing Plant (HZS25, HZS35, HZS50, HZS60, HZS75, HZS90, HZS120, HZS180); Concrete Mixer (JS Series, JDC Series, JZC Series, JZM Series, JW Pan Concrete Mixer, Diesel Engine Concrete Mixer); Concrete Batching Machine; Screw Conveyor; Cement Silo; JZ350 Mortar Mixer; etc.
Display of Our Main Products
Q: We want to buy a set of concrete batching plant,but we don’t know what model to choose.
A: It doesn’t matter. We just need know the discharging capacity one hour you need, then choose the suitable model for you.
Q: How long is the delivery?
A: 7-30 days after receiving the down payment.
Q: How long is the total cycle time from feeding to discharging the concrete?
A: The total cycle time is 60 seconds.
Q: Do you provide after sale service?
A: Of course. Our engineers are available to serve machinery overseas.
Q: What is the warranty of your product?
A: One year overseas service is ensured. International practice will be adopted in staff cost.
