HZS50 Concrete Mixing Plant Machine ISO Approved
Parameters of HZS50 Concrete Mixing Plant Machine ISO Approved
Model |
HZS25 |
HZS35 |
HZS50 |
|
The Whole Station |
Max. Productivity |
25 m3/h |
35 m3/h |
50 m3/h |
Discharge Height |
1.5-3.8 m |
1.5-3.8 m |
1.5-3.8 m |
|
Working Cycle |
72 s |
72 s |
72 s |
|
Dimension (LxWxH) |
11693x13060x17245 mm |
12922x13000x17245 mm |
15922x13500x17750 mm |
|
Power |
50.25 kw |
75 kw |
90 kw |
|
Concrete Mixer |
JS500 |
JS750 |
JS1000 |
|
Batching Machine |
PLD800 |
PLD1200 |
PLD1600 |
|
Pneumatic system |
Air Compressor Model |
1.0-7 |
1.0-7 |
1.5-7 |
Nominal Displacement |
1.67 m3/min |
1.67 m3/min |
1.67 m3/min |
|
Rated Discharge Pressure |
0.8 mpa |
0.8 mpa |
0.8 mpa |
|
Motor power |
5.5 kw |
5.5 kw |
7.5 kw |
|
|
Measurement Accuracy of Weighing system |
Aggregate |
±2% |
±2% |
±2% |
Cement |
±1% |
±1% |
±1% |
|
Water |
±1% |
±1% |
±1% |
|
Admixture |
±1% |
±1% |
±1% |
|
Excellent Performance of High Productivity HZS50 Concrete Mixing Plant Machine ISO Approved
1) Maximum Mixing Performance

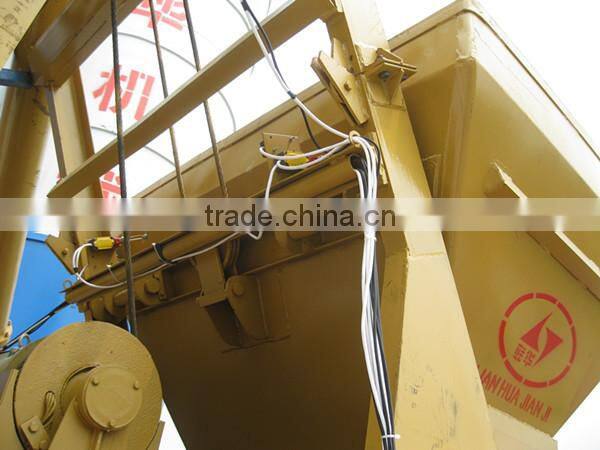

HZS50 concrete mixing plant is equipped with a twin-shaft forced concrete mixer with two horizontal axes, featuring high mixing efficiency. The equipment can be used to mix dry, semi-dry and plastic concrete.
2) Technical Requirements
1. After installation, the machine parts make no noise and can be moved flexibly.
2. The discharge chute can be open and closed freely and responsively. When it is off status, there should be no material leakage.
3. Safety performance of the electrical system should be in line with GB/T4094 standard.
4. Prior to machine commissioning, anti-rust paint should be applied to the machine. After the test is finished, spray the exterior trim paint to make indicative mark.
3) Simple Operation
The whole equipment set is controlled by the computer, which allows for both manual and automatic control. Via the dynamic panel display, users can better monitor the working status of all the machine parts. Meanwhile, production report can be stored and printed.
4) High Measurement Precision
Water, concrete, water admixtures adopt electronic weighing, ingredients of high precision.
5) Easy Transfer and Installation

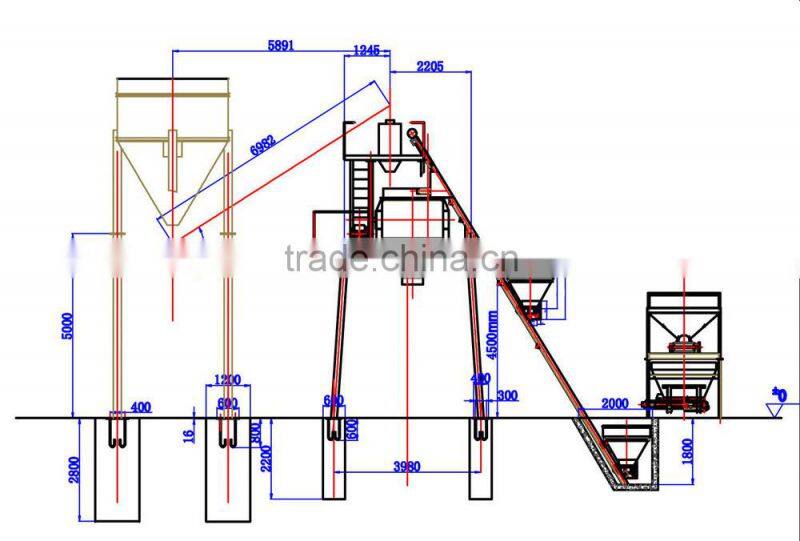

The whole structure can be broken down into modular, individual units, including the batcher, belt conveyor, mixer, spiral conveyor, and pulverized mineral tank. The mixer can be subdivided into small, independent modules. When transferred to other job sites, the plant can be disassembled, transferred, and re-assembled easily and effortlessly. It is also supplied with various layout arrangements to suit the requirement of different work sites.
6) Control System
The high precision weighing system and industrial control computer are charged with the responsibility for data collection, automatic production control, real-time record of production data, and data management (including production report searching and printing). Machine models are selected from global markets, mainly of world-class brands. With optimized configuration, the system features good stability, powerful function, and simple operation.
7) Main Functions
1. Automatic, continuous production greatly improves productivity.
2. The machine can automatically adjust the batching times and mixing volume per batch. This reduces work lo ad as well as the possibility of operation mistakes.
3. Automatic weight compensation and material parameter adjustment improves the batching accuracy.
4. Moisture content in the material can be calculated.

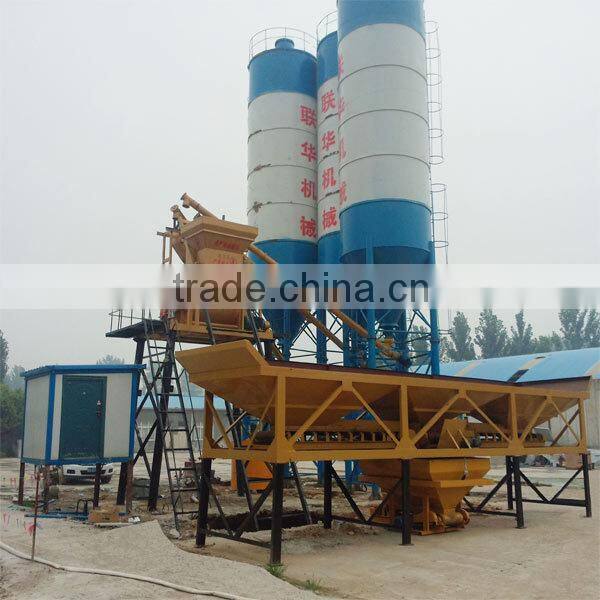

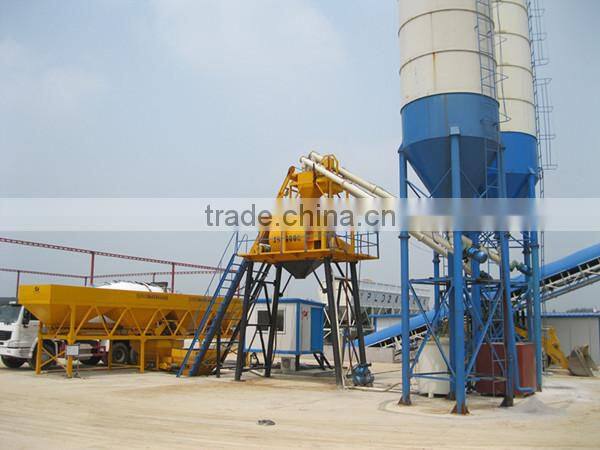

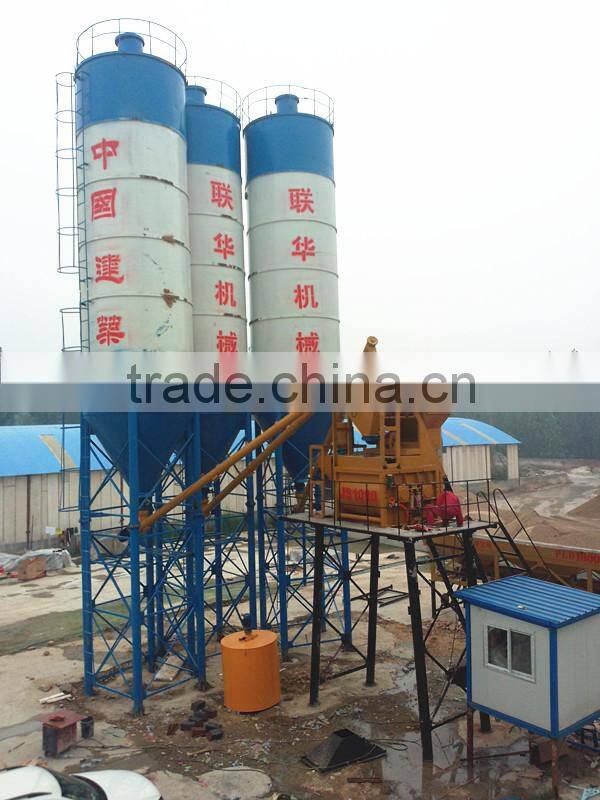

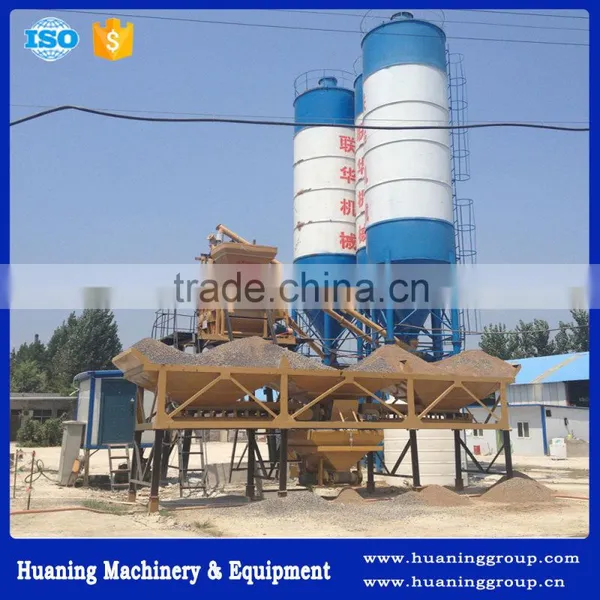

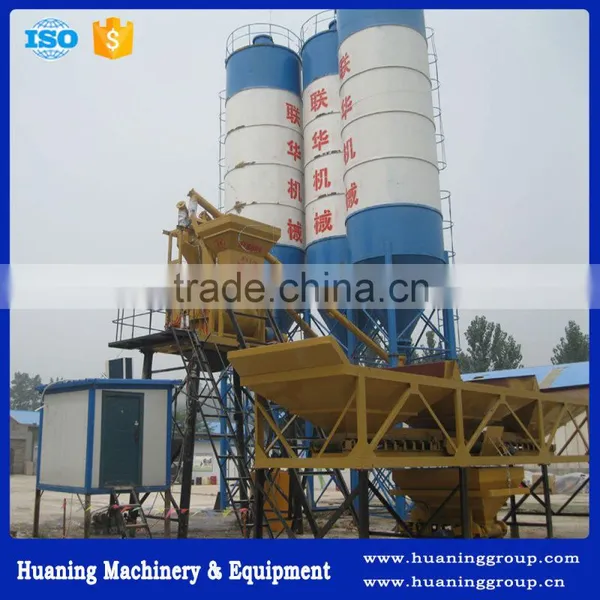

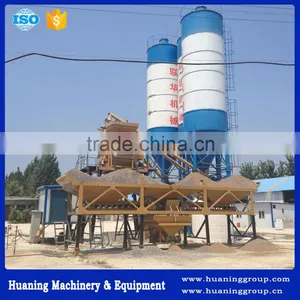

Products Shows of High Productivity HZS50 Concrete Mixing Plant Machine ISO Approved
Company Information
- Henan Huaning Machinery & Equipment Co., Ltd is one of the large-scale enterprises of construction machinery. It is specialized in manufacturing and selling concrete equipment for more than 20 years. Up to now, we already have 14 experienced engineers and 180 staffs.
- All our products have passed ISO9001 International Quality System Certification and high product quality wins the trust from most customers.
- Our main products are: Concrete Mixing Plant (HZS25, HZS35, HZS50, HZS60, HZS75, HZS90, HZS120, HZS180); Concrete Mixer (JS Series, JDC Series, JZC Series, JZM Series, JW Pan Concrete Mixer, Diesel Engine Concrete Mixer); Concrete Batching Machine; Screw Conveyor; Cement Silo; JZ350 Mortar Mixer; etc.
Q: We want to buy a set of concrete batching plant,but we don’t know what model to choose.
A: It doesn’t matter. We just need know the discharging capacity one hour you need, then choose the suitable model for you.
Q: How long is the delivery?
A: 7-30 days after receiving the down payment.
Q: How long is the total cycle time from feeding to discharging the concrete?
A: The total cycle time is 72 seconds.
Q: Do you provide after sale service?
A: Of course. Our engineers are available to serve machinery overseas.
Q: What is the warranty of your product?
A: One year overseas service is ensured. International practice will be adopted in staff cost.
