Automatic Spoon Shaped Straw Making Machine

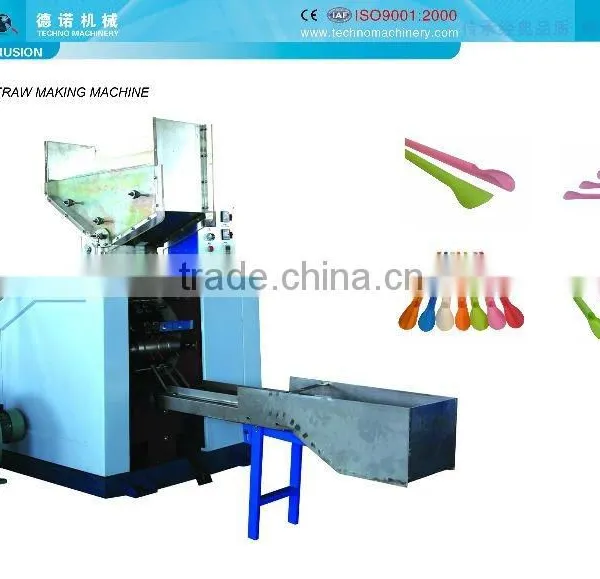

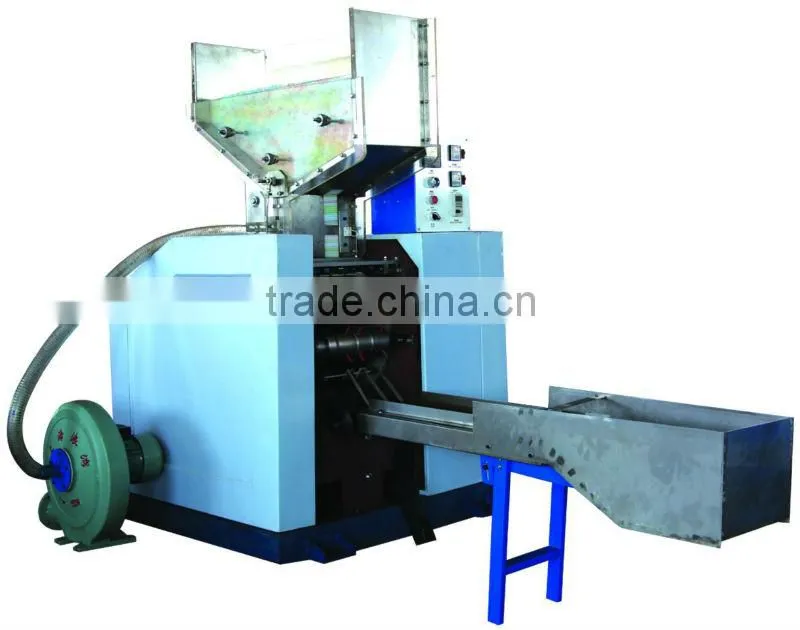

Illustration of Automatic Spoon Shaped Straw Making Machine

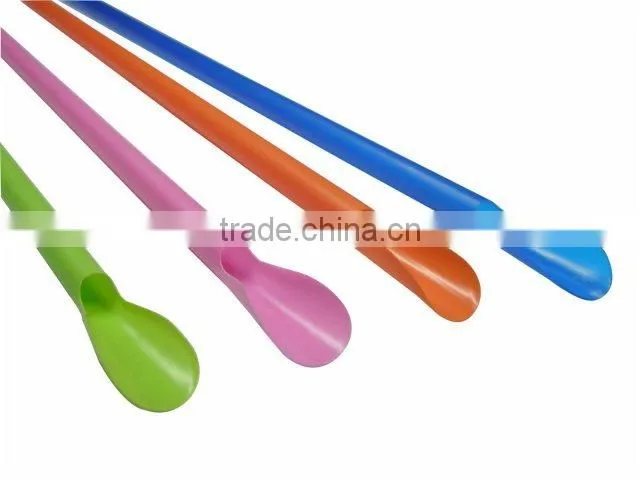

Spoon straw making machine (full automatic) use to produce the spoon straw which for the ice cream.
It can make the spoon straw from the straight straw automatically. The straight straw from hopper to 12 feeding groups , 1 punching group and 12 heating forming groups ,then direct come out the spoon straw.
Characteristics of Automatic Spoon Shaped Straw Making Machine
High production capacity:200-280pcs/min.
One labour can operate 2 machines
With automatic counting and batch alarm.Automatic stop when the straw have errors
More safety-the machine with watch windows and back side controller and emergency switch
The breaker ,AC contactor and knob switch brand is SCHNEIDER, The inverter brand is DELTA
Main Technical Data
| Driving motor | 1.5kw | |
| Capacity: | 80-150pcs/min. | |
| Specification of straw: | Inner diameter | 5.8mm |
| Thickness of straw | 0.15~0.19mm |
|
| Length of straight straw | 270-340mm |
|
| No. of tooth: | 50-60 teeth |
|
| The others specification can be special made. | ||
| Dimension of machine: | 1900 × 1800×1600mm | |
| Weight of machine: | 1200kgs |
|
Standard Export Seaworthy Packing Automatic Spoon Shaped Straw Making Machine
a. Engineers available to service machinery overseas
b. Guarantee Period: 12 Months
c. During this guarantee period, TECHNO will provide spare parts without any charge in case of quality discrepancy caused by us. If the malfunctions are caused by your incorrect operation, TECHNOwill provide the buyer spare parts at cost price.
Zhangjiagang Techno Machinery Co.,Ltd. is specialized in manufacturing and exporting different kinds of plastic extrusion and plastic recycling machinery.
Our main machines include the following: 1) plastic pipes production line 2) plastic profiles production line 3) plastic sheets production line 4) plastic pellets production line 5) plastic mixers 6) plastic pulverizer 7) tire recycling machinery........
Term of Payment
a. L/C
b. T/T (30% as advance payment by T/T after signing contract, 70% of total will be paid by T/T before delivery)
