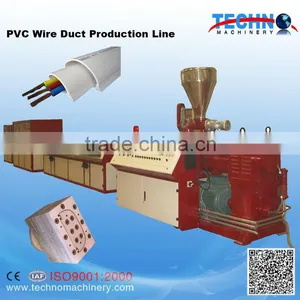

PVC Wire Duct Making Machinery
Description:
PVC Wire Duct/Cable Trunk Production Line mostly used with SJSZ-51 or 65 Conical Twin-screw extruder to produce twin trunk or single trunk.
And this production line also can produce other shape of PVC profile.
And if change to single screw extruder, the line can produce PE, PP, ABS profile.
Technical parameter:
Model |
Product dimension (w×h)mm |
Extruder model |
output(kg/h) |
Max speed (m/min) |
Install power (kw) |
Main motor power(KW) |
Length of line(m) |
SJYF-180 |
180×60 |
SJSZ51/105 |
80-120 |
6 |
55 |
22 |
23 |
SJYF-240 |
240×120 |
SJSZ65/132 |
140-180 |
4 |
76 |
37 |
27 |
The machine unit:
Name |
Quantity |
Automatic loader |
1 set |
SJZ51, SJZ65 conical twin-screw extruder |
1 set |
Mould and calibrating |
1 set |
Vacuum calibrating table |
1 set |
Haul-off machine |
1 set |
Printer |
1 set |
Synchro cutter |
1 set |
Tipping stacker |
1 set |
Other necessary equipment:
Name |
Quantity |
SRL-Z type of hot/cooling mixer |
1 set |
crusher |
1 set |
Pictures of PVC wire duct production line:
