Specifications
1.China 15kw Small silent generator2.This soundproof gen set's suitable for kinds of gen set to reduce noise.

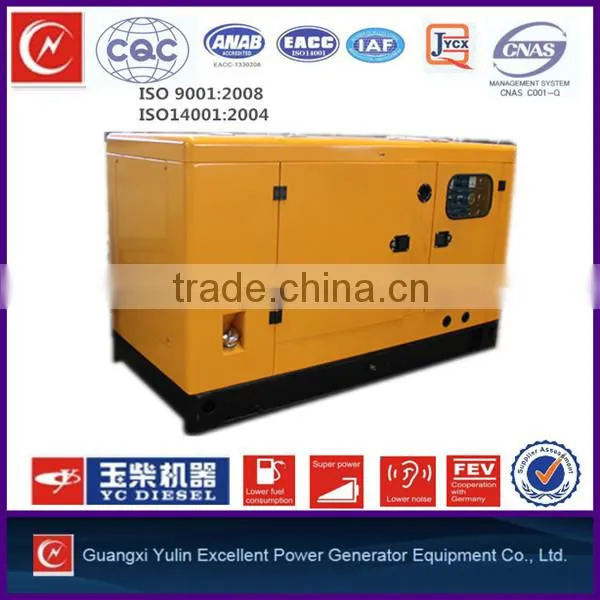

China 15kw Small silent generator
Features:
1. Adopt top grade steel plate.
2. Unique inner structure for effective noise reduction and water-proof.
3. Humanitzed control panel for easy operation.
4. Key control parts adopt panel lock to avoid mis-operation.
5. Compact cabinet structure reduce the trnsport cost.
6. Wide panel door and even wider open space for convenient maintainance.
7. Can be used as power backup generator set.
Application:
Widly used for places which have a strict requirement on sound control, such as residential areas, schools, offices etc.
Technique Parameter of China 15kw Small silent generator | ||
Parts |
Genset model |
15GF |
|
genset |
Continuous power(kw/kva) |
15/18.7 |
Stand by power(kw/kva) |
16.5/20.6 |
|
Rated Voltage(V) |
400/230 |
|
Phase |
Three phase four line |
|
Rated Current(A) |
27 |
|
Rated Frequency (HZ) |
50 |
|
Speed at rated power(Hr/min) |
1500 |
|
Power factory |
0.8 |
|
Voltage Variation(%) |
≤±1 |
|
Voltage Variation Ratio |
≤±0.5 |
|
Transient Voltage Variation(%) |
+20~-15 |
|
Steady Frequency Timing Ratio(%) |
≤±1 |
|
frequency fluctuating(%) |
≤±0.5 |
|
Instant frequency timing fluctuating |
+10~-7 |
|
Fuel consumption(g/kw.h) |
205 |
|
Noise(ISO3744Bb)(A) |
≤110 |
|
Size(mm) |
1500*730*1100 |
|
Weight(kg) |
500 |
|
|
engine |
Engine Model |
YC2108D |
Cylinder |
In-line,2cylinders |
|
Cylinders bore |
108 |
|
Out put(kw) |
20 |
|
Stroke(mm) |
120 |
|
Type |
Water-cooled, four stroke |
|
Intake way |
Natural |
|
Speed control |
MECHENICAL control |
|
Cooling system |
Closed Fan, water cooling System |
|
|
Alternator |
Protect grade |
IP21 |
Insulation grade |
H |
|
Voltage Regulation Mode |
Electronic brushless self-exciting |
|
Advanced Technology
Certificated Quality
Professional & Global Service
China 15kw Small silent generator
