100kw Diesel Silent Generator Set

Name: 100kw Diesel Silent Generator Set
Brand: Yuchai
SKU: 103461683
Availability: InStock

US$ 100 - 50,000 MOQ: 1 Set

Key Specifications

Place of Origin:

Guangxi, China

Brand Name:

Yuchai

Model Number:

100GF

Guangxi Yulin Excellent Power Generator Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

SHENZHEN

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangxi, China

Brand Name Yuchai

Model Number 100GF

Output Type AC Three Phase

Speed 1500 r/min

Frequency 50 Hz

Rated Power 100 KW

Rated Voltage 400/230 V

Rated Current 180A

Specifications

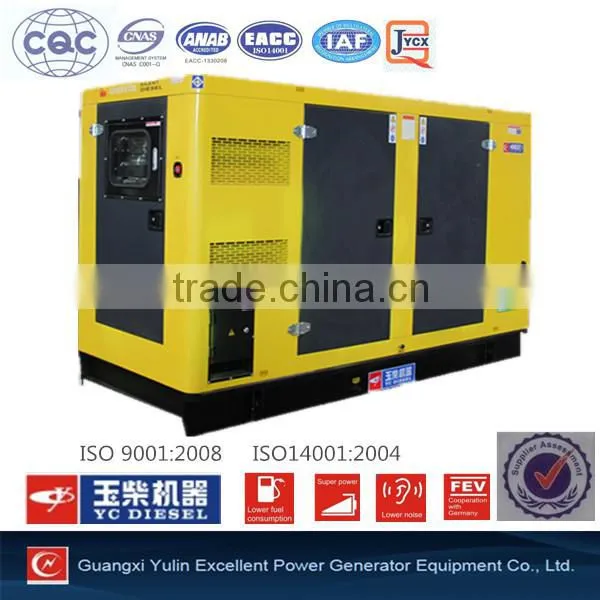

100kw diesel silent generator set
Lowe fuel consumption
Lower noise

100kw diesel silent generator set

Item	Specification
1,diesel generator set
Gen-set brand	Excellent Power
Model	100GF
Manufacturer	Guangxi Yulin Excellent Power Generator Equipment Co., Ltd.
Gen-set Power(KW)	100
Output Voltage(V)	400/230
Frequency(Hz)	50
Power Factor	0.8(Lag)
Rated Current(A)	180
Voltage Changing Ratio(%)	≤0.5
Transient Voltage Regulation(%)	+20~-15
Steady Voltage Variation(%)	≤±1
Voltage Stabilization Time(s)	1.5
Frequency Changing Ratio(%)	≤±0.5
Instant Frequency Timing Ratio(%)	+10~-10
Steady Frequency Timing Ratio(%)	≤±1
Frequency Stabilization Time(s)	1.5
Rated Rotation Speed(rpm)	1500
Gen-set N/W(kg)	1350
Overall Dimension(LWH) (mm)	2240 × 900×1250
2,diesel engine

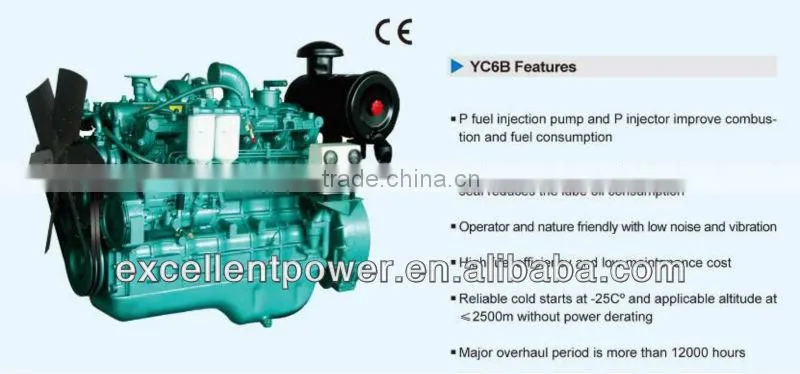

Engine Brand		Yuchai
Engine Model		YC6B155L-D21
Rated Rotation Speed( rpm)		1500
Output Power(KW)		113
Cylinder Number		6 ( in line)
Bore*Stroke		108*125
Displacement(L)		6.871
Compression Ratio		17.5:1
Fuel Consumption(g/kw*h)		≤200
Oil consumption(g/kw*h)		≤1.5
Oil capacity(L)		16
Speed Regulation Mode		Mechanical
Cooling System		Sealed and water Cooling System
Starting Way		24V Electric Start
Noise[dB(A)]		≤102
3,Alternator
Alternator Brand		Kangfu or ENNGA
Alternator Model		KF-W4(.D)-100
Rated Rotation Speed (rpm)		1500
Alternator Power (KW)		100
Excitation		Harmonic Brushless
Class of Insulation		H
Degree of Protection		IP21
Waveform : THD		'<2%
Temperature Rise		≤125K
Voltage Regulation		≤±1
4, Control System
Manufacturer			Smartgen
Display Content			AC phase / line voltage, phase current, battery voltage, frequency, oil pressure, water temperature, run-time power factor, fault alarm, engine speed, etc.
