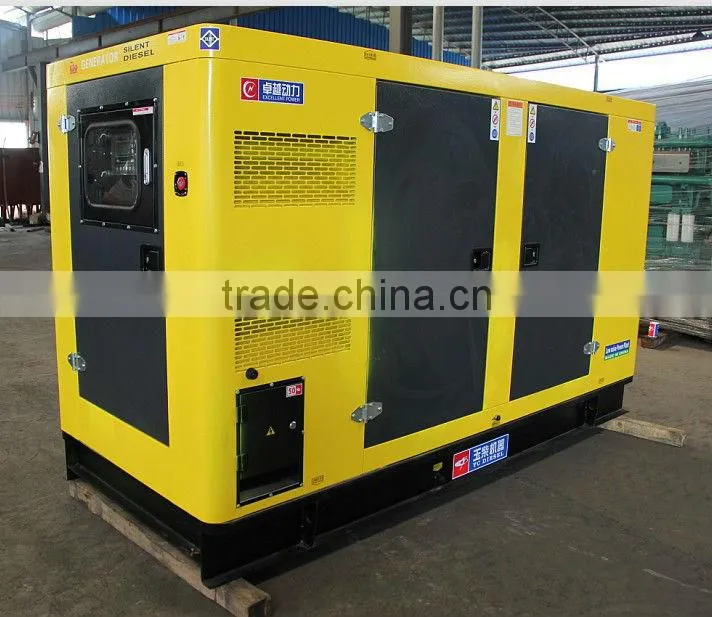

Yuchai 125 KVA silent diesel generator
- 300 Set / Sets per Month
- FOB ShenZhen
- T/T
Product Details
Place of Origin: | Guangxi, China | Brand Name: | EXCELLENT POWER | Model Number: | 100GF |
Output Type: | AC Three Phase | Speed: | 1500rpm | Frequency: | 50hz |
Rated Power: | 100kw | Rated Voltage: | 400/230V | Rated Current: | 180A |
Product Description
Specifications
1.This engine's small,less vibration,lower noise, higher reliability2.Yuchai 125 KVA silent diesel generator
3.for living are
Yuchai 125 KVA silent diesel generator
1. Adopt top grade steel plate.
2. Unique inner structure for effective noise reduction and water-proof.
3. Humanitzed control panel for easy operation.
4. Key control parts adopt panel lock to avoid mis-operation.
5. Compact cabinet structure reduce the trnsport cost.
6. Wide panel door and even wider open space for convenient maintainance.
7. Can be used as power backup generator set.
Technique Parameter of Yuchai 125 KVA silent diesel generator | |||
Parts | Genset model | 100GF | |
genset | Continuous power(kw/kva) | 100/125 | |
Stand by power(kw/kva) | 110/138 | ||
Rated Voltage(V) | 400/230 | ||
Phase | Three phase four line | ||
Rated Current(A) | 180 | ||
Rated Frequency (HZ) | 50 | ||
Speed at rated power(Hr/min) | 1500 | ||
Power factory | 0.8 | ||
Voltage Variation(%) | ≤±1 | ||
Voltage Variation Ratio | ≤±0.5 | ||
Transient Voltage Variation(%) | +20~-15 | ||
Steady Frequency Timing Ratio(%) | ≤±1 | ||
frequency fluctuating(%) | ≤±0.5 | ||
Instant frequency timing fluctuating | +10~-7 | ||
Fuel consumption(g/kw.h) | 200 | ||
Oil consumption(g/kw.h) | ≤1.5 | ||
Auto start time(s) | 1-30(Adjustable) | ||
Noise(db(A)LP7m) | ≤102 | ||
Size(mm) | 2400*720*1250 | ||
Weight(kg) | 1350 | ||
engine | Engine Model | YC6B155L-D20 | |
Cylinder | In-line,6cylinders | ||
Cylinders bore | 108 | ||
Stroke(mm) | 125 | ||
Compresseion ratio | 17.5:1 | ||
Displacement of piston(L) | 6.871 | ||
Out put(kw) | 113 | ||
Type | Water-cooled, four stroke | ||
Intake way | Turbo | ||
Emission | T2 | ||
Speed control | MECHENICAL/Electrical control | ||
Cooling system | Closed Fan,water cooling System | ||
Generator | Protect grade | IP21 | |
Insulation grade | H | ||
Voltage Regulation Mode | Electronic brushless self-exciting | ||
Overload Capacity | 150% in 120 second |
Advanced Technology
Professional&Global Service
Certificated Quality
Yuchai 125 KVA silent diesel generator
