Home > Consumer Electronics > Display & Accessories > Touch Screen > 15 Inch Five-wire Resistive Touchscreen TFT-LCD Monitor

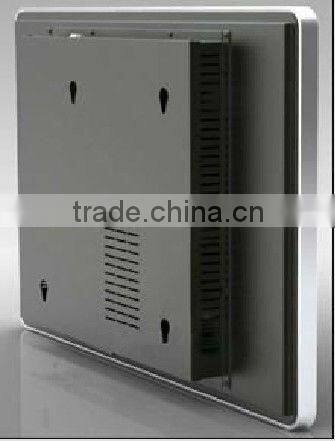

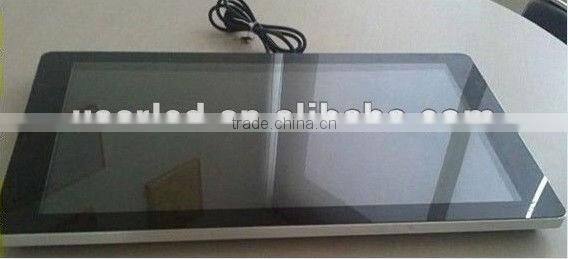

15 Inch Five-wire Resistive Touchscreen TFT-LCD Monitor
US$ 1 - 999
MOQ: 10 Sets
Key Specifications
Get Latest Price
Products Status:
Stock
Screen Size:
Other, 15"
Interface Type:
D-Sub, DVI, Serial, USB
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
17 Inch Resistive Touchscreen TFT-LCD MonitorUS$ 1 - 999MOQ: 10 Sets -
19 Inch Touchscreen LCD MonitorUS$ 1 - 999MOQ: 10 Sets
-
Similar Iphone Ipad Design Touch Screen Kiosk for AdvertisingUS$ 1 - 9,999MOQ: 1 Set
-
46 Inch High Definition 1080P Floor Standing Lcd Advertising PlayerUS$ 1 - 9,999MOQ: 5 Sets
-
65 Inch Full HD 1080p Floor Standing LCD Advertising PlayerUS$ 1 - 9,999MOQ: 5 Sets
Products Status
Stock
Screen Size
Other, 15"
Interface Type
D-Sub, DVI, Serial, USB
Resolution
1024 x 768
Brand Name
User
Model Number
US-T1501R
Place of Origin
Guangdong, China
Specifications
1.LCD industrial touch monitor2.waterproof touch screen monitor
3.CE & FCC
ld rolled steel
5.water-proof &anti-dust

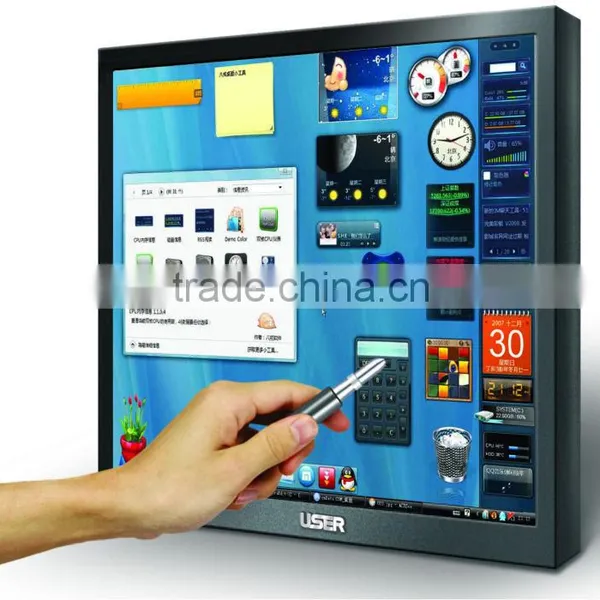

15 inch LCD industrial touch screen water-proof monitor US-T1501R
Products detail:
| Panel | Brand | AU/SAMSUNG/CMO |
| Size | 15” TFT-LCD | |
| Display area | 304(W)×228(H) | |
| Pixel Pitch | 0.297(H)×0.297(V) | |
| Aspect Ration | 4:3 | |
| Resolution | 1024X768 | |
| Color depth | 16.7M | |
| View angle | H160º V160º | |
| Brightness | 350cd/m2 | |
| Contrast ration | 500:1 | |
| Response time | 8ms | |
| Image control | Video decoding | 3D |
| Signal Noise | 3D | |
| Interlaced separation | 3D | |
| Color system | support PAL/NTSC/SECAM | |
| Image Code | Standard / Sports / soft / personal settings | |
| Image adjust | Contrast / brightness / hue / saturation / sharpness | |
| Color temperature mode | Standard / cool / warm color | |
| Zoom | Full Screen / Zoom 1 / Zoom 2 / nonlinearity / 14:9 | |
| Dual screen functionality | PIP/POP 4:3 | |
| Audio system | Speaker | 2×3W(4Ω) (default without speakers) |
| Sound mode | Standard / Music / Movies / Personal settings | |
| Option system | Manu language | Chinese / English |
| Remote control | Dedicated | |
| Button panel | Standby / input / menu / left / right | |
| Input/output interface | USB or serial input | 1 (for touch screen use) |
| Composite video input | 2(BNCX2) | |
| Component (YUV) input | 1(BNCX3) | |
| S-video | no | |
| D-15pin RGB input | 1 | |
| HDMI | 1 | |
| Composite video output | 1 (BNCX1) | |
| AV/YUV audio input | 1 Hole diameter Φ3.5mm | |
| PC audio input | 1 Hole diameter Φ3.5mm | |
| Power consumption | Power consumption | AV 100~240v 50/60HZ |
| Standby power / rated power | ≤3W/≤25W | |
| Hell | Material | SPCC cold rolled steel |
| Exterior color | White / black / custom | |
| Dimensions | 329*258*60((for reference only) | |
| Install | Wall-mounted (default) / Rack -mounted | |
| External conditions |
Operating temperature/humidity | 0°C~50°C/20%~80% |
| Storage temperature/humidity | -10°C~60°C/5--95% | |
| Life time | 60000hours | |
| Certification | CE/FCC/3C/RoHS | |
| Packing | 550x500x320(including 4pcs) | |
We provide servise:
1. Customized requirment is available , OEM&ODM are welcome.
2. Reasonable and satisfactory solutions Provided to you by our professional engineers and staffs .
3. Warranty: one year overall unit ( Non-artificial damage )
Certificate:
Office and Workshop:
Company breif introduction and products range:
ShenZhen User Special Display Technologies CO.,Ltd. As one of the leading providers of special display solution manufactor specialized in development ,production and marketing of LCD monitor 5″-82 ″Various Size. We also provide CCTV LCD monitor,Industrial LCD monitor,Broadcast LCD monitor,medical LCD monitor,Touch screen LCD monitor,Multimedia kiosk, high definition LCD display ,LCD Advertising player,Digital signage,Billboards,LCD video wall, LCD splicing,LCD display wall,video wall processor and so on. Any inquires are warmly welcome!
