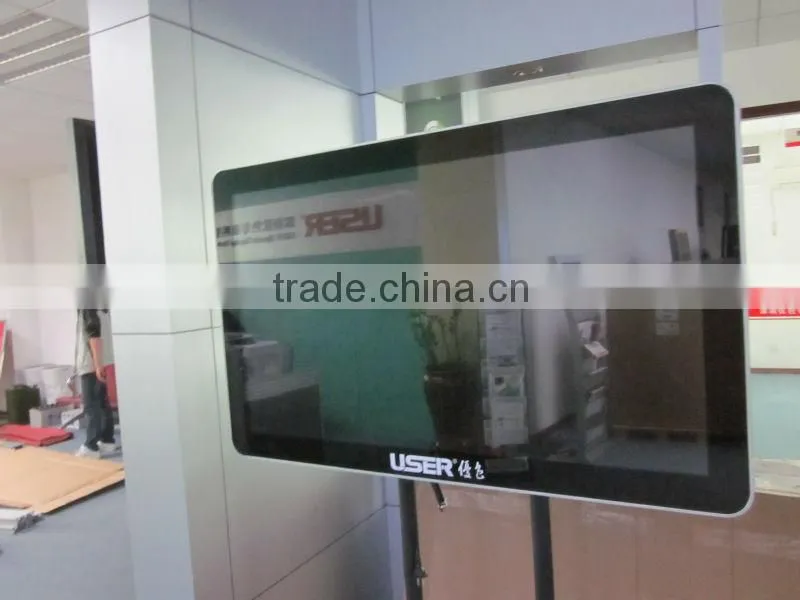

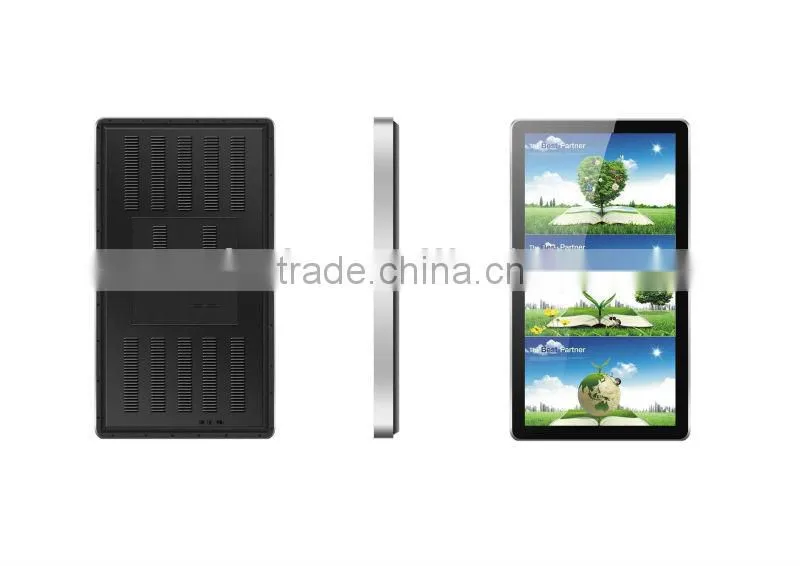

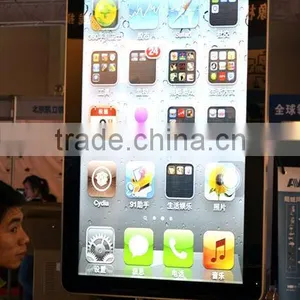

Similar Iphone ipad design touch screen kiosk for advertising

Specifications

Similar Iphone ipad design touch screen kiosk
~IR touch screen
~High definition
~size from 17"-55"
~CE+Rohs+FCC+UL+CCC

Similar Iphone& ipad design 55" touch screen kiosk for advertising



Product Function Brief:

-Support memory card capability: 32MB-16GB, such as CF, SD card and U-disk etc

-support media format: MP4 (AVI: DIVX/XVID), MPG2 (DVD: VOB/MPG2), MPEG1 (VCD: DAT/MPG1), VOB, MP3 and JPG etc.

-Support video playing format: AUTO/NTSC/PAL is optional.

- Support power supply: AC 110V - 240V   50HZ/60HZ



IR touch technology.

 Parameter for IR Multi Dot Touch:

1. Touch Max Resolution: 4096×4096

2. Transparency: > 90%, Up to 100%

3. Scanning Speed: >50Scans/S

4. Response Speed: <12ms

5. Touch Type: Horizontal Multi Dot Touch Screen (Vertical way is optional)

6. Touch precision: 0.625mm

7. Minimum Touch object: ≥5mm

8. Touch Intensity: Over 60,000,000 Single Point Touch

9.Operation System: DOS, WINDOWS9X/ME/2000/XP/2003/VISTA, LINUX

10. perating Voltage: DC 5V ±5%

11. Power Supply: Keyboard Serial Interface

12. Power: <1W (Current<200mA)

13. Communication: RS-232 Interface Port, USB Port

14.Vandal-Proof: Steel Ball (Diameter 63.5mm 1040g Weight) drop from 1040mm, No break

15. Temperature Operating: -41°C ~70°C    Temperature Storage: -50°C ~85°C

16. Altitude: 3000m

17. Noise: None

18. Life Time: >10 Year



Parameter for Mini-PC:

Main Parameter
Model	US-AD550W1
Mother Board	Mini ITX
Supplier of Chip	Intel
CPU	INTEL ATOM N330 duel core 1.6G processor
Quantity of CPU	1 piece
Frequency	533MHz
RAM	DDR2
pattern of channel	Sigal Channel
RAM Slot	1 DDR2 DIMM
Frequency of RAM	DDR2 533MHz,DDR2 667MHz DDR2 800MHz
Capacity of RAM	4G
Integrated Graphics	NVIDIA Geforce 9400
Video	Realtek ALC662 HDA 7.1
Network interface card   Wifi	RTL8111C Gigabit Ethernet Controller for 10/100/1000 Mbits/sec Ethernet Lan Connectivity. 802.11b,b
Extended Parameter
Hard disk interface	ATA 100,ATA 133,S-ATA150,S-ATA II
Quantity of SATAII	1
Hard disk	320GB
Extended slot	1×PCI Express X16
Other slot	1 IDE
Extended interface	USB2.0, RJ45network card interface, Audio,SD card.
Quantity of USB	5 piece



Parameter for LCD panel:

Panel Size: 55 inch real color LCD screen
Aspect Ratio: 16 : 9
Active Area: 1209.6mm(H) x 680.4mm(V)
Max. Resolution:1920 x 1080
DOT Pitch: 0.630mm (H) x 0.630mm (W)
Number of Color: 16.7M
Brightness: 500CD/m2
Contrast Ratio: 2000 : 1
Responsive Time: 8ms
Panel Life: Above 50000 hours





Packing information:

Packing list: 55inch LCD ad player, keys, English manual, remote controller.
Packing size: 1940cm*270m*1030cm
Net weight: About 103kg   Gross weight: About 115kg





Applicable field:

Business Organizations: supermarket, large-scale shopping malls, exclusive agency, chain shops, large-scale sales, star-rated hotels, restaurants, travel agencies, pharmacy.

Financial Organizations: Banks, negotiable securities, funds, insurance companies, pawnshops;

Non-profit Organizations: Telecommunications, post offices, hospital, schools;

Public Places: subway, airports, stations, gas stations, toll stations, bookstores, parks, exhibition halls, stadiums, museums, convention centers, ticket agencies, HR market, lottery centers;

Real Estate Property: Apartments, villas, offices, commercial buildings, model rooms, property brokers;

Entertainments: Movie theaters, fitness halls, country clubs, clubs, massage rooms, bars, cafes, Internet bars, beauty shops, golf course.
