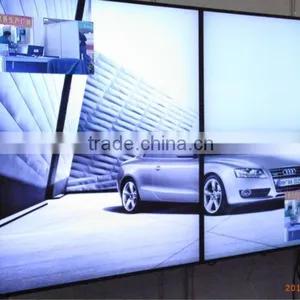

46 inch DID SAMSUNG panel LCD display Video Wall with Super Narrow Bezel

Specifications

- Panel: DID 46" LTI460AA05/04
- Portrait/Landscape type compatible
- Brightness: 450, 700cd/m2
- Splicing Seam: 6.7mm;

LCD video Wall panel / Big panel size video wall, advertising displays, LCD monitor


Features:

High brightness,High definition and high gaumt

Narrow bezel design

Optional joining methods

Environmental & safety

Advanced screen parameter revise functions

Stable operation , long life and low maintenace costs

The LCD video wall bracket adopts steel structure,firm and embedded installation,simple and compact structure,save space



Specifications
Model No.					US-LTI460AA05
Screen size					Different size screen Samsung DID LCD screen(super narrow bezel 7.3mm)
Aspect Ratio					16:9
Resolution					1920x1080
Color					8Bit,16.7M
Brightness (nits)					450cd/m2
Contrast					2000:1
Visual angle (H/V)					178°
Response time					<=6ms
Life(hrs)					>60,000(hrs)
Input and output
Composite Video Input					3(3xBNC)
YUV/YPbPR					1(3xBNC)
S-YC					1(2xBNC)
D-15 RGB Input(VGA)					1
HDMI					1
DVI					1
Audio Input					1
Composite Video Output					2(2xBNC)
Split Screen					Support Picture in Picture(PIP/POP/PAP)
Power
Power supply					AC100V~240V
Maximum power consumption					250W
Standby power consumption					<=3W
Temperature
Working temperature					0°C~50°C
Working humidity					20%-80%
Appearance
Product dimension( W x H x D) mm					1025.65x579.84x126.73
Acessory
Cable					Can supply different kinds of cable
Video Wall Controller(Built-in each screen)
Model No.	US-P816A
Input	CVBS	3*BNC inputs, support PAL/NTSC all formats, 2*BNC loop outputs
	VGA	1*D15 port, support SVGA/XGA/WXGA
	YPbPr/YCbCr	1* YPbPr/YCbCr input, support PAL/NTSC all formats, and 720P,1080I, HDTV
	Y/C	2*BNC inputs, support PAL/NTSC all formats
Output	LVDS	Support signal or double LVDS output, and WUXGA (1920*1080) display
Operate  mode	Panel key operation(needs customization)
	Standard RS232 port( provide free control software)
	Infrared Remote Control Operation
Engineering software	Customized
Working temperature	0~70 °C
working humidity	5~95 %RH
AC voltage power supply	100-240V/50, 60Hz
power consumption	Max 300W,according to different screen models
Dimension	338×295×60(mm)
Weight	About 3.5KG



Install:

Wall-mounted,floor stand, cabinet installation optional



Package:



Application:



The splicing picture combination, can reach the advertising media to the pursuit of large screen . Widly use to Airport, Finacial ,Metro,shopping mall,supermarket,Public place,assembly room ,Enterprise,Goverment ect.







Stable performance for video monitor and production scheduling ensure apply to: Public security,Transportation, Electrical Power , Energy sources,coal mine, Military and so on.







Application case:









We provide servise:



1. Customized requirment is available , OEM&ODM are welcome.



2. Reasonable and satisfactory solutions Provided to you by our professional engineers and staffs .



3. Warranty: one year overall unit ( Non-artificial damage )
