New indoor panel LCD video wall,lcd split wall,tv wall

Specifications

1. Cheapest price with factory
2. High quality and best services
3. A+ LCD panel
4.CE, FCC, CCC, ROHS,UL

LCD video Wall panel / Big panel size video wall, advertising displays, LCD monitor


Features:



1.  Narrow design: the narrowest can reach 5.3mm (55did), and it truly achieves the seamless.
2.  Interface type: VGA, DVI and HDMI connected analog signal and digital high-definition signal
3.  Remote control function: by RS232 port and Ethernet connection for remote operation
4.  Beautiful wall structure design, be convenient for installation and maintenance
5.  Continuous boot for 7 * 24 hours, deserve to trust.
6.  Support 365 days non-stop boot, the backlight life is up to 60,000 hours
7.  Splicing mode is optional.
8.  Support error and compensation function of video wall pictures
9.  Modular design according to customer demand (M * N)
10. Diversification of the display mode

11. Excellent display



Specifications
Model No.					US-LD470DXS
Panel Size					47'' LG LCD Screen(super narrow bezel 6.3mm)
Aspect Ratio					16:9
Max Resolution Support					1366x768
Color					8Bit,16.7M
Brightness (nits)					500cd/m2
Contrast					3000:1
Visual Angle (H/V)					178°
Response Time					less than 6ms
Life(hrs)					more than 60,000(hrs)
Input and output
DVI					1
HDMI					1
D-15 RGB Input(VGA)					1
YUV/YPbPR					1(3xBNC)
S-(YC)					1(2xBNC)
Composite Video Input/(AV)					3(3xBNC)
Composite Video Output					2(2xBNC)
AUDIO INPUT					1
Split Screen					Support Picture in Picture(PIP/POP/PAP)
Power
Power Supply					AC100V~240V
Maximum Power Consumption					250W
Standby Power Consumption					less than 3W
Temperature
Working Temperature					0°C~50°C
Working Humidity					20%-80%
Dimension &Application Condition
Dimension					1046.8x591.6x49.5mm
Backlight System					LED Direct
Coating					Anti-glare Coating
Main Application Conditions					Indoor,semi-Outdoor
Video Wall Controller(Built-in each Screen)
Model No.	US-P816A
Input	CVBS	3*BNC inputs, support PAL/NTSC all formats, 2*BNC loop outputs
	VGA	1*D15 port, support SVGA/XGA/WXGA
	YPbPr/YCbCr	1* YPbPr/YCbCr input, support PAL/NTSC all formats, and 720P,1080I, HDTV
	Y/C	2*BNC inputs, support PAL/NTSC all formats
Output	LVDS	Support signal or double LVDS output, and WUXGA (1920*1080) display
Operate  mode	Panel key operation(needs customization)
	Standard RS232 port( provide free control software)
	Infrared Remote Control Operation
Engineering software	Customized
Working temperature	0~70 °C
working humidity	5~95 %RH
AC voltage power supply	100-240V/50, 60Hz
power consumption	Max 300W,according to different Screen models
Dimension	338×295×60(mm)
Weight	About 3.5KG



Trade terms:

1.Price:  FOB Shenzhen

2.Lead time: Within 5-15working days after payment.

3.Payment terms:T/T,Western union,L/C.

4.Delivery :DHL ,UPS door to door service , by sea,by air , etc. According to your require .



We provide servise:

1. Customized requirment special display of 5-82 inches according to customer need is available, OEM&ODM are welcome.

2. Reasonable and satisfactory solutions Provided to you by our professional engineers and staffs .

3. Warranty: one year overall unit ( Non-artificial damage )



Company breif introduction and products range:

ShenZhen User Special Display Technologies CO.,Ltd. As one of the leading providers of special display solution manufactor specialized in development ,production and marketing of LCD monitor 5″-82 ″Various Size. We also provide CCTV LCD monitor,Industrial LCD monitor,Broadcast LCD monitor,medical LCD monitor,Touch screen LCD monitor,Multimedia kiosk, high definition LCD display ,LCD Advertising player,Digital signage,Billboards,LCD video wall, LCD splicing,LCD display wall,video wall processor and so on. Any inquires are warmly welcome!



Install:

Wall-mounted,floor stand, cabinet installation optional



Package:



Application:



The splicing picture combination, can reach the advertising media to the pursuit of large screen . Widly use to Airport, Finacial ,Metro,shopping mall,supermarket,Public place,assembly room ,Enterprise,Goverment ect.







Stable performance for video monitor and production scheduling ensure apply to: Public security,Transportation, Electrical Power , Energy sources,coal mine, Military and so on.

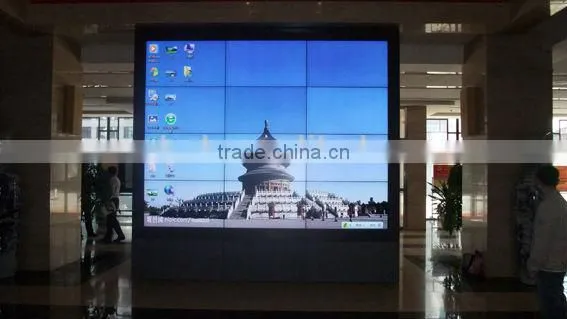

Application case:









We provide servise:



1. Customized requirment is available , OEM&ODM are welcome.



2. Reasonable and satisfactory solutions Provided to you by our professional engineers and staffs .



3. Warranty: one year overall unit ( Non-artificial damage )







Certificate:





Office and Workshop:



Products show:
