2013 top quality 3*4 panel lcd video advertising wall monitor

Specifications

be used for business advocacy , broadcast corporate culture and products ;outdoor and indoor advertising ;exhibition decoration

 50inch indoor advertising lcd video wall,super narrow lcd splicing wall


Features:

High brightness,High definition and high gaumt

Narrow bezel design

Optional joining methods

Environmental & safety

Advanced screen parameter revise functions

Stable operation , long life and low maintenace costs

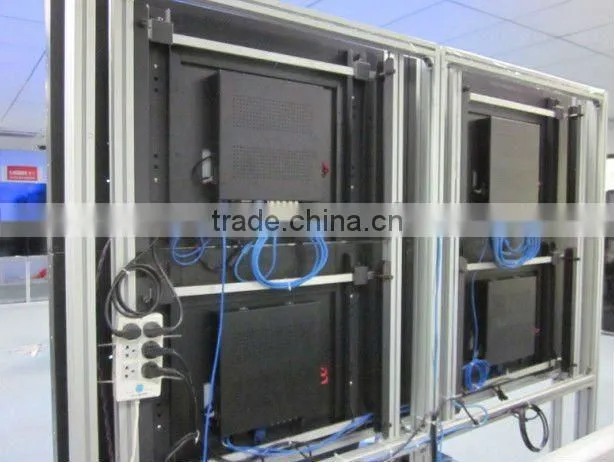

The LCD video wall bracket adopts steel structure,firm and embedded installation,simple and compact structure,save space



Specifications
Model No.					PJ5001
Screen size					50"Samsung DID LCD screen(super narrow bezel 6.7mm)
Aspect Ratio					16:9
Resolution					1920x1080
Color					8Bit,16.7M
Brightness (nits)					450cd/m2
Contrast					2000:1
Visual angle (H/V)					178°
Response time					<=6ms
Life(hrs)					>60,000(hrs)
Input and output
Composite Video Input					3(3xBNC)
YUV/YPbPR					1(3xBNC)
S-YC					1(2xBNC)
D-15 RGB Input(VGA)					1
HDMI					1
DVI					1
Audio Input					1
Composite Video Output					2(2xBNC)
Split Screen					Support Picture in Picture(PIP/POP/PAP)
Power
Power supply					AC100V~240V
Maximum power consumption					250W
Standby power consumption					<=3W
Temperature
Working temperature					0°C~50°C
Working humidity					20%-80%
Appearance
Product dimension( W x H x D) mm					1025.65x579.84x126.73
Acessory
Cable					Can supply different kinds of cable
Video Wall Controller(Built-in each screen)
Model No.	US-P816A
Input	CVBS	3*BNC inputs, support PAL/NTSC all formats, 2*BNC loop outputs
	VGA	1*D15 port, support SVGA/XGA/WXGA
	YPbPr/YCbCr	1* YPbPr/YCbCr input, support PAL/NTSC all formats, and 720P,1080I, HDTV
	Y/C	2*BNC inputs, support PAL/NTSC all formats
Output	LVDS	Support signal or double LVDS output, and WUXGA (1920*1080) display
Operate  mode	Panel key operation(needs customization)
	Standard RS232 port( provide free control software)
	Infrared Remote Control Operation
Engineering software	Customized
Working temperature	0~70 °C
working humidity	5~95 %RH
AC voltage power supply	100-240V/50, 60Hz
power consumption	Max 300W,according to different screen models
Dimension	338×295×60(mm)
Weight	About 3.5KG



Install:

Wall-mounted,floor stand, cabinet installation optional



Package:



Application:



The splicing picture combination, can reach the advertising media to the pursuit of large screen . Widly use to Airport, Finacial ,Metro,shopping mall,supermarket,Public place,assembly room ,Enterprise,Goverment ect.







Stable performance for video monitor and production scheduling ensure apply to: Public security,Transportation, Electrical Power , Energy sources,coal mine, Military and so on.

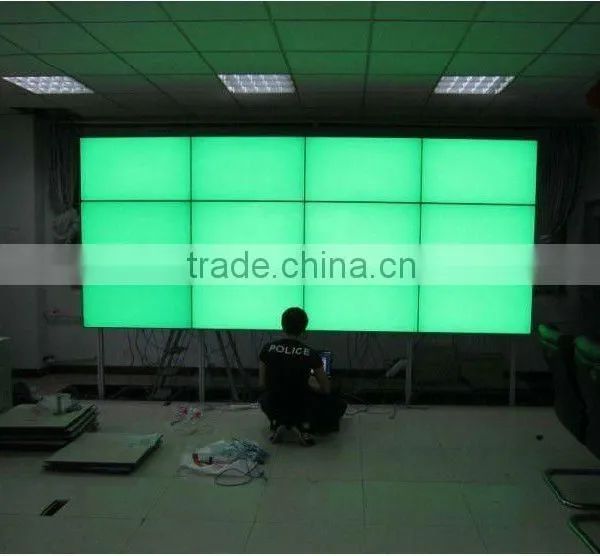

Application case:









We provide servise:



1. Customized requirment is available , OEM&ODM are welcome.



2. Reasonable and satisfactory solutions Provided to you by our professional engineers and staffs .



3. Warranty: one year overall unit ( Non-artificial damage )
