Home > Products > Industrial LCD Monitor > USER latest technology 26'' touch screen open frame

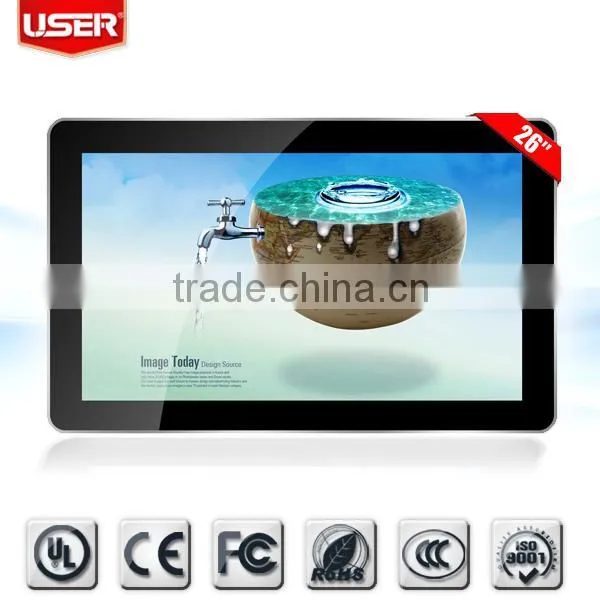

USER latest technology 26'' touch screen open frame
- 5000 Piece / Pieces per Month
- Shenzhen
- T/T Credit Card
- 12.1" SVGA Open Frame Touch Screen Industrial LCD Display (LCD Module)
- 7" Open Type Module (OTM) Touch Screen Industrial LCD Display
- 7" Open Type Module (OTM) Touch Screen Embedded LCD Monitor
- 17" Wide Open Frame Touch Screen LCD Monitor (LCD Module)
- 19" Wide Open Frame Touch Screen LCD Monitor (LCD Module)
- 12.1" XGA Open Frame Touch Screen Embedded LCD Monitor (LCD Module)
Product Details
Products Status: | Stock | Screen Size: | Other, 26'' | Type: | Infrared |
Interface Type: | D-Sub, DVI, USB, Other, D-Sub, DVI, USB, DVI/HDMI/CVBS/YPBPR | Resolution: | Other, 1366*768 | Brand Name: | USER/OEM |
Model Number: | KFS-M2601P | Place of Origin: | Guangdong, China |
Product Description
Specifications | |
Model No. | KFS-M2601P |
Panel size | 26" TFT-LCD |
Display area(mm)/mode | 575.6(W)×325.6(H) 16:9 |
Maximum resolution | 1366×768 |
Display color | 16.7M |
Pixel Pitch(mm) | 0.1405(H)×0.4215(V) |
Brightness (nits) | 400nits |
Contrast | 3000:1 |
Visual angle | 178°/178° |
Response time | 5ms |
Horizontal frequency | 30-75KHZ |
Vertical frequency | 56-75KHZ |
Life(hrs) | 60,000(hrs) |
Input and output | |
Composite video input | 2 (BNC×2) |
YPbPr input | 1 (BNC×3) |
VGA | 1 |
DVI | 1 |
HDMI | 1 |
Composite video output | 1 (BNC×1) |
Video | |
Color system | PAL/NTSC/SECAM |
OSD display( screen menu display) | |
Menu language | Chinese/English |
Power | |
Power supply | AC100V~240V,50/60Hz |
Maximum power consumption | 100W |
Standby power consumption | 3W |
Temperature | |
Working temperature | 0°C~50°C |
Storage temperature | -20°C~60°C |
Working humidity | 10%~75% |
Storage humidity | 85% |
Appearance | |
Body dimension(Lx W x H)mm | 658*386.6*94 |
Panel color/appearance | White,black,customized |
Case Material | Metal |
Net weight | 15kg |
Installation | Open frame |
