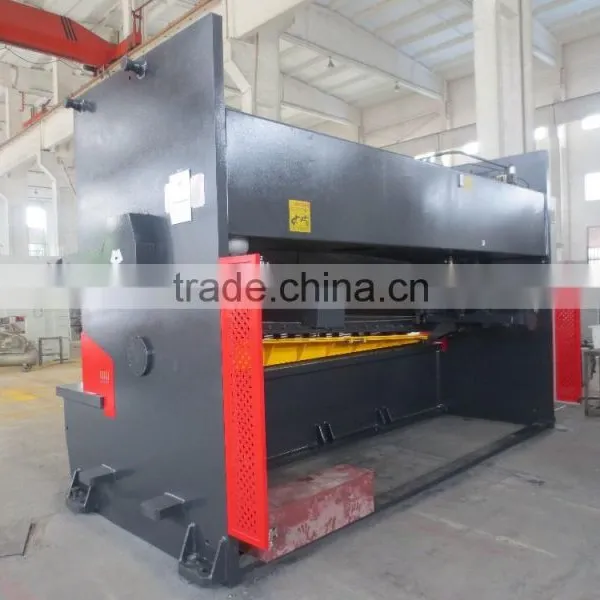

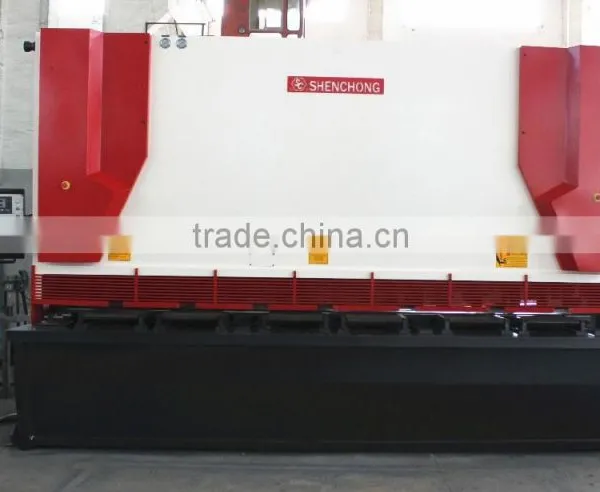

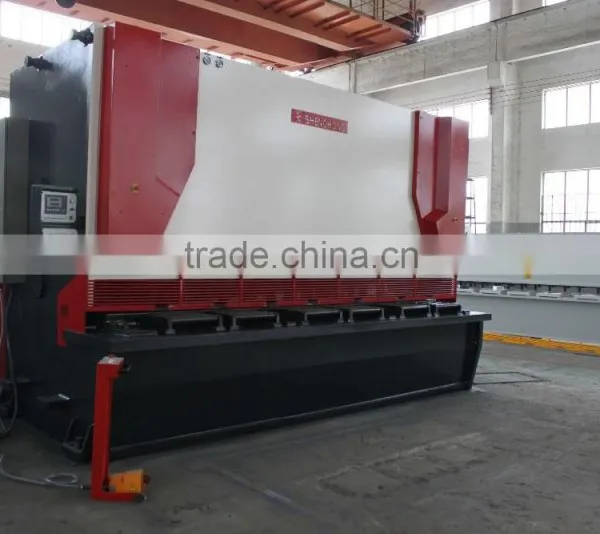

Details of 2015 design jiangsu wuxi shenchong hydraulic cutting machine
QC11Y-25X4000
Advanced Technology And Procedures
(1)This machine belongs to second generation of hydraulic shear, with advanced integrated hydraulic system with an excellent reliability and easy for maintenance.
(2)The shearing angle can not be changed due to the series cylinder.
(3)The rolling guide with 3-point support and improves the shearing quality.
(4)The power storage device returns steadily and quickly.
(5)The rectangular monoblock blades featuring long life with 4 cutting edges.
(6)Rapidly, accurately and conveniently adjusting the blade clearance with the handwheel.
(7)The adjustable rake angle can minimize plate deformation.

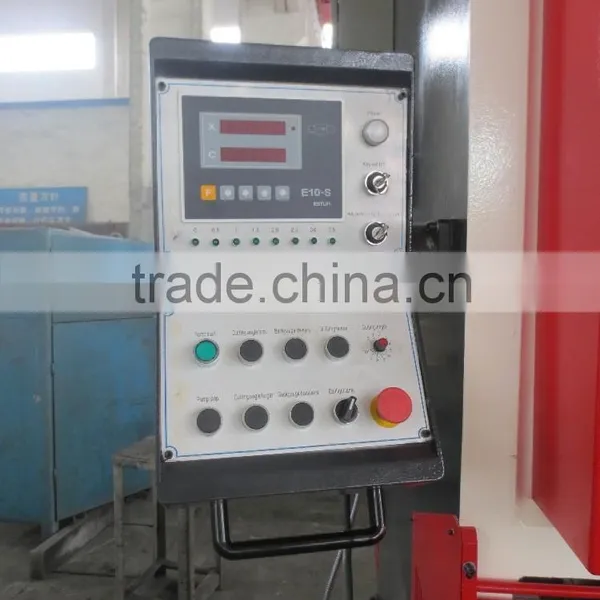

(8)As the cutting beam has been designed in inner-inclined structure, it is easy for plates to fall down and the accuracy of products can also be guaranteed. Shearing in sections (adjust the time displayed on liquid crystal), shadow-line cutting.
(9)for the motorized back gauge, very accurate and convenient.

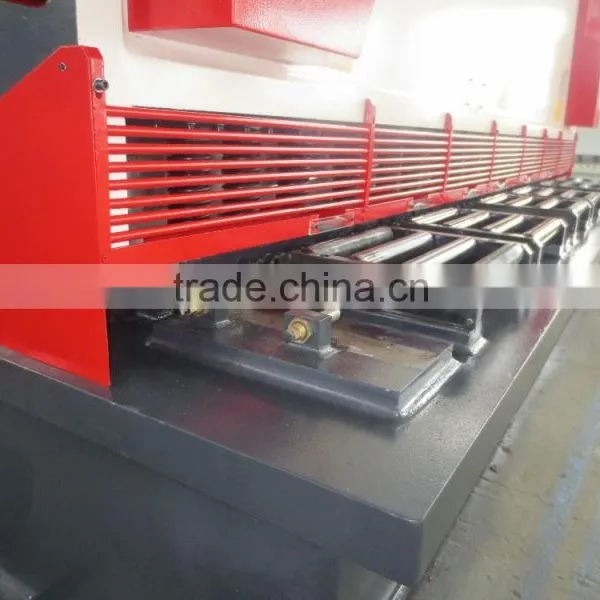

(10)Rolling plate-support of the machine, this can reduce the hurt of the plates and reduce the conflict force.
(11)Cylinder: No. 45# steel treated, inner holes fine machined and extruded.
(12)Valve rods: No. 45# steel treated, nickel and phosphorous coated on the outside.
Technical Parameters:
Model |
Mild Steel (450MPA) |
Cutting Length (mm) |
Depth Of Throat (mm) |
Back Gauge Range(mm) |
Rake Angle Adjustment |
Strokes Per Minute |
Main Motor (kw) |
4×2000 |
4 |
2000 |
80 |
750 |
0.5°~2° |
14 |
5.5 |
4×2500 |
4 |
2000 |
80 |
750 |
0.5°~2° |
14 |
5.5 |
6×2500 |
6 |
2500 |
80 |
750 |
0.5°~1°30′ |
14 |
7.5 |
6×3200 |
6 |
3200 |
80 |
750 |
0.5°~1°30′ |
12 |
7.5 |
6×4000 |
6 |
4000 |
80 |
750 |
0.5°~1°30′ |
10 |
7.5 |
6×5000 |
6 |
5000 |
80 |
750 |
0.5°~1°30′ |
8 |
7.5 |
6×6000 |
6 |
6000 |
80 |
750 |
0.5°~1°30′ |
8 |
7.5 |
8×2500 |
8 |
6000 |
80 |
750 |
0.5°~2° |
14 |
7.5 |
8×3200 |
8 |
3200 |
80 |
750 |
0.5°~2° |
12 |
7.5 |
8×4000 |
8 |
4000 |
80 |
750 |
0.5°~2° |
10 |
7.5 |
8×5000 |
8 |
5000 |
80 |
750 |
0.5°~2° |
7 |
15 |
8×6000 |
8 |
6000 |
100 |
750 |
0.5°~2° |
7 |
15 |
10×2500 |
10 |
2500 |
100 |
750 |
0.5°~2°30′ |
10 |
15 |
10×3200 |
10 |
3200 |
100 |
750 |
0.5°~2°30′ |
8 |
15 |
10×4000 |
10 |
4000 |
100 |
750 |
0.5°~2°30′ |
6 |
15 |
10×5000 |
10 |
5000 |
100 |
750 |
0.5°~2°30′ |
5 |
15 |
10×6000 |
10 |
6000 |
100 |
750 |
0.5°~2°30′ |
5 |
15 |
12×2500 |
12 |
2500 |
100 |
750 |
0.5°~2°30′ |
10 |
15 |
12×3200 |
12 |
3200 |
100 |
750 |
0.5°~2°30′ |
8 |
15 |
12×4000 |
12 |
4000 |
100 |
750 |
0.5°~2°30′ |
5 |
15 |
12×5000 |
12 |
5000 |
100 |
750 |
0.5°~2°30′ |
5 |
30 |
12×6000 |
12 |
6000 |
100 |
750 |
0.5°~2°30′ |
5 |
30 |
16×2500 |
16 |
2500 |
100 |
750 |
0.5°~2°30′ |
8 |
15 |
16×3200 |
16 |
3200 |
100 |
750 |
0.5°~2°30′ |
7 |
15 |
16×4000 |
16 |
4000 |
100 |
750 |
0.5°~2°30′ |
6 |
15 |
16×5000 |
16 |
5000 |
100 |
750 |
0.5°~3° |
5 |
22 |
16×6000 |
16 |
6000 |
100 |
750 |
0.5°~3° |
5 |
37 |
20×2500 |
20 |
2500 |
100 |
750 |
0.5°~3° |
6 |
22 |
20×3200 |
20 |
3200 |
120 |
750 |
0.5°~3° |
5 |
30 |
20×4000 |
20 |
4000 |
120 |
750 |
0.5°~3° |
4 |
30 |
20×5000 |
20 |
5000 |
120 |
750 |
0.5°~3° |
4 |
37 |
20×6000 |
20 |
6000 |
120 |
750 |
0.5°~3° |
5 |
37 |
25×2500 |
25 |
2500 |
120 |
750 |
0.5°~3.5° |
5 |
37 |
25×3200 |
25 |
3200 |
120 |
750 |
0.5°~3.5° |
5 |
37 |
25×4000 |
25 |
4000 |
120 |
750 |
0.5°~3.5° |
4 |
37 |
30×2500 |
30 |
2500 |
120 |
750 |
0.5°~3.5° |
4 |
37 |
30×3200 |
30 |
3200 |
120 |
750 |
1°~3.5° |
3 |
37 |
40×2500 |
40 |
2500 |
80 |
750 |
1°~4° |
4 |
37×2 |
Shenchong Certifications:
Shenchong Factories:

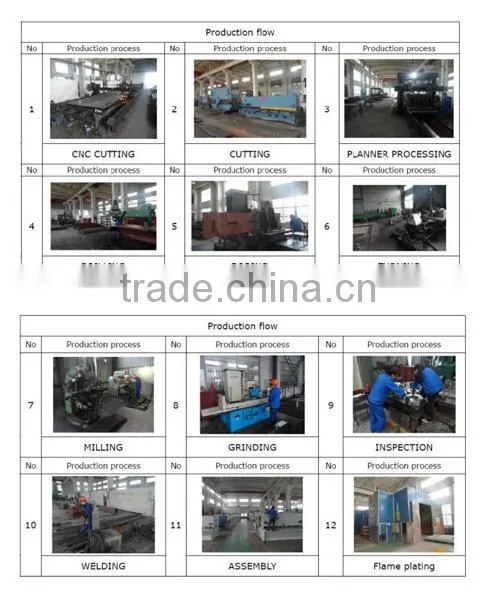

Machines Procedures:
Loading Photos:
Customers in Shenchong:
Shenchong Exhibitions Overseas:
