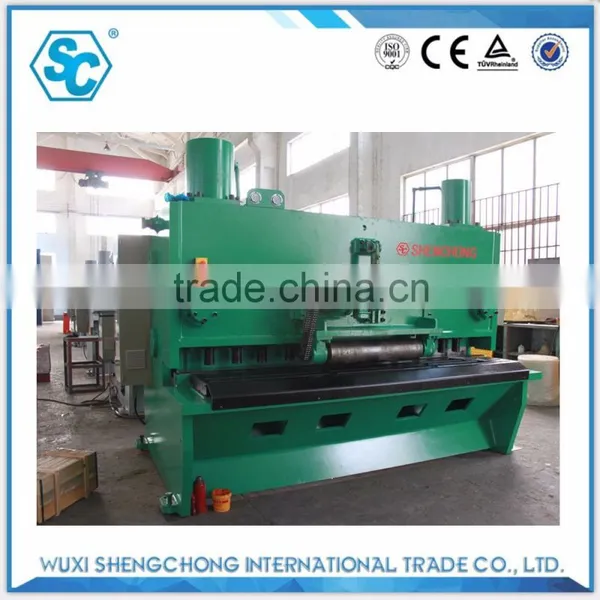

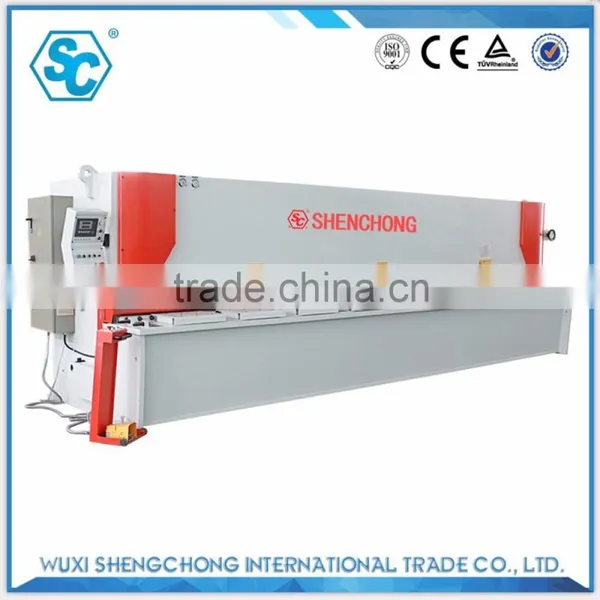

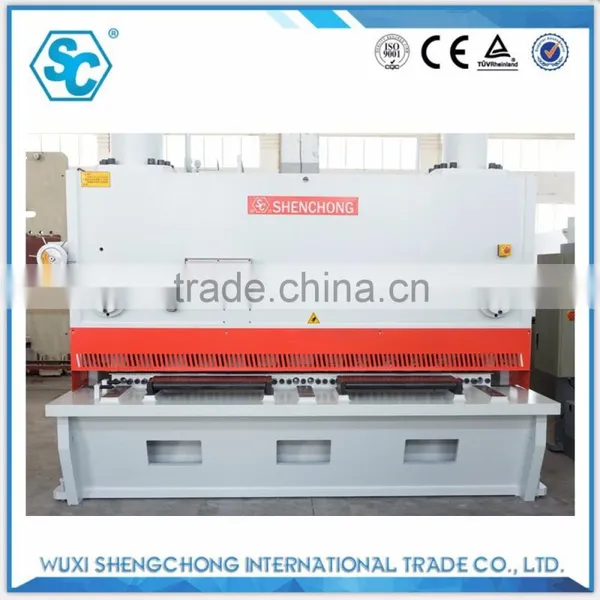

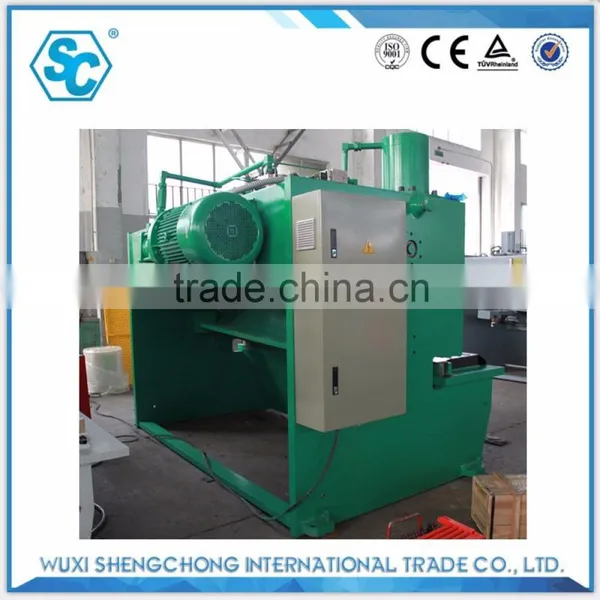

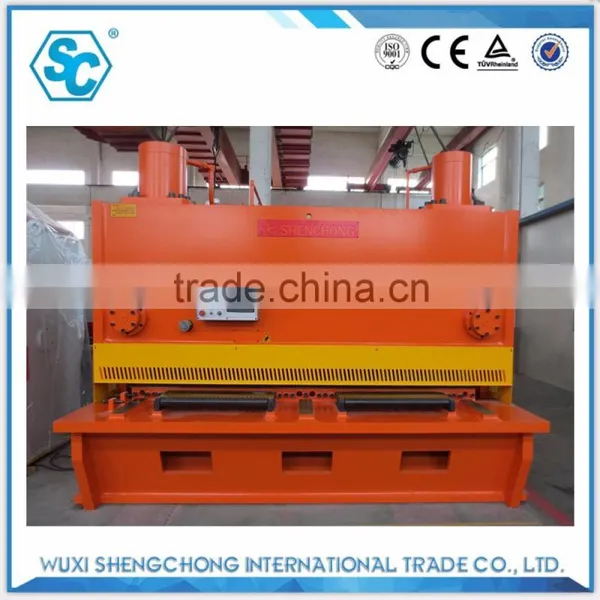

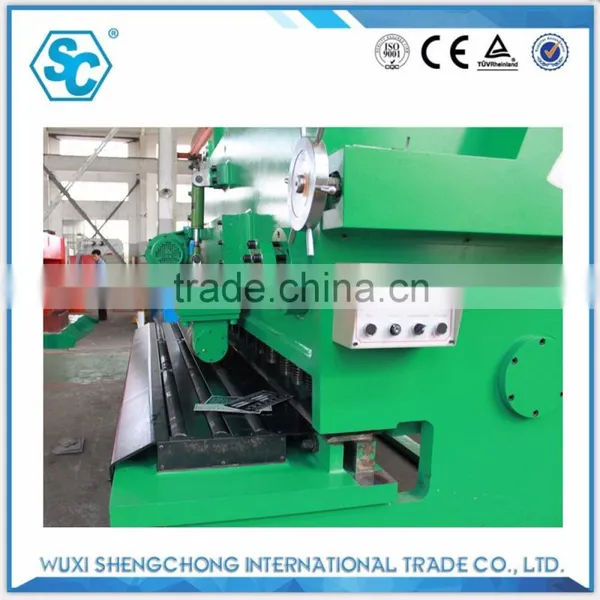

| Equipment name | QC11Y-30X2500 label cutting machine Hydraulic Shearing Cutting Machine |
Operational principle:
Adopting the suitable blade clearance between motorial above blade and fixed under blade, which form shearing force to sheet metal with various thickness and separate the sheet with required size. Shearing machine is one of the forging machinery, which is widely used in aviation, light industry, metallurgy, chemical industry, construction, shipbuilding, automobile, electric power, electrical appliances, decoration and other industries. This equipment is applied to cutting drawing bending extrusion and the form Hydraulic Guillotine Shearing Machine ing process to various strength metal sheets.
| Model |
Cutting Thickness (450Mpa) |
Cutting Length (mm) |
Throat Depth (mm) |
Bac Gauge Range (mm) |
Cut Angle |
Strokes Per Minutes |
Main Motor (KW) |
Dimensions (LxWxH) (MM) |
Gross Weight (Ton) |
| 6x2500 | 6 | 2500 | 80 | 600 | 0.5°~2° | 20 | 5.5 | 3100x1725x1960 | 4.8 |
| 6x3200 | 6 | 3200 | 80 | 600 | 0.5°~1°30′ | 12 | 7.5 | 3935x1840x1995 | 6.8 |
| 6x4000 | 6 | 4000 | 80 | 600 | 0.5°~1°30′ | 10 | 7.5 | 4650x1840x2100 | 8.8 |
| 6x5000 | 6 | 5000 | 80 | 600 | 0.5°~1°30′ | 7 | 11 | 5700x1950x2380 | 13.5 |
| 6x6000 | 6 | 6000 | 80 | 600 | 0.5°~1°30′ | 6 | 11 | 6650x1985x2380 | 16.5 |
| 8x2500 | 8 | 2500 | 80 | 600 | 0.5°~2° | 12 | 11 | 3135x1840x2075 | 6 |
| 8x3200 | 8 | 3200 | 80 | 600 | 0.5°~2° | 10 | 11 | 3850x1990x2050 | 7 |
| 8x4000 | 8 | 4000 | 80 | 600 | 0.5°~2° | 8 | 11 | 4650x1890x2075 | 9.5 |
| 8x5000 | 8 | 5000 | 80 | 600 | 0.5°~2° | 7 | 15 | 5650x2050x2400 | 16 |
| 8x6000 | 8 | 6000 | 80 | 600 | 0.5°~2° | 6 | 15 | 6805x2115x2715 | 21 |
| 10x6000 | 10 | 6000 | 80 | 750 | 0.5°~2°30′ | 5 | 15 | 6905x2215x2715 | 25 |
| 12x2500 | 12 | 2500 | 80 | 750 | 0.5°~2°30′ | 6 | 15 | 3195x2000x2210 | 8.8 |
| 12x3200 | 12 | 3200 | 80 | 750 | 0.5°~2°30′ | 5 | 15 | 3895x1950x2240 | 10 |
| 12x4000 | 12 | 4000 | 80 | 750 | 0.5°~2°30′ | 6 | 15 | 4710x1950x2485 | 14 |
| 12x6000 | 12 | 6000 | 80 | 750 | 0.5°~2°30′ | 5 | 30 | 7150x2300x3100 | 30 |
| 16x2500 | 16 | 2500 | 80 | 750 | 0.5°~2°30′ | 6 | 15 | 3215x1970x2340 | 9.5 |
| 16x3200 | 16 | 3200 | 80 | 750 | 0.5°~2°30′ | 5 | 15 | 3915x1970x2455 | 12 |
| 16x4000 | 16 | 4000 | 80 | 750 | 0.5°~2°30′ | 5 | 15 | 4715x2010x2590 | 16.5 |
| 16x5000 | 16 | 5000 | 80 | 750 | 1°~3° | 5 | 30 | 6000x2300x3000 | 25 |
| 16x6000 | 16 | 6000 | 80 | 750 | 1°~3° | 5 | 37 | 7520x2400x3100 | 38 |
| 20x2500 | 20 | 2500 | 80 | 750 | 1°~3° | 6 | 22 | 3235x2020x2465 | 12.5 |
| 20x3200 | 20 | 3200 | 80 | 750 | 1°~3° | 5 | 30 | 4150x2065x2755 | 18 |
| 20x4000 | 20 | 4000 | 80 | 750 | 1°~3° | 4 | 30 | 4955x2125x2885 | 23 |
| 20x5000 | 20 | 5000 | 80 | 750 | 1°~3° | 4 | 37 | 6000x2300x3050 | 29 |
| 20x6000 | 20 | 6000 | 80 | 750 | 1°~3° | 5 | 37 | 7150x2450x3280 | 43 |
| 25x2500 | 25 | 2500 | 80 | 750 | 1°~3°30′ | 5 | 37 | 3465x2130x2710 | 16 |
| 25x3200 | 25 | 3200 | 80 | 750 | 1°~3°30′ | 5 | 37 | 4120x2200x3000 | 23 |
| 25x4000 | 25 | 4000 | 80 | 750 | 1.5°~3°30′ | 4 | 37 | 4950x2200x3150 | 28 |
| 30x2500 | 30 | 2500 | 80 | 750 | 1.5°~3°30′ | 4 | 37 | 3465x2170x2770 | 18 |
| 35x2500 | 35 | 2500 | 80 | 750 | 1.5°~3°30′ | 3 | 37 | 4000x3000x3100 | 25 |
| 30x3200 | 30 | 3200 | 80 | 750 | 1.5°~3°30′ | 3 | 37 | 4200x2300x3200 | 25 |
| 40x2500 | 40 | 2500 | 80 | 750 | 1.5°~4° | 4 | 37x2 | 3770x3000x3400 | 32 |
| 40x3200 | 40 | 3200 | 80 | 750 | 1.5°~4° | 3 | 37x2 | 4300x3100x3600 | 38 |
| 40x4000 | 40 | 4000 | 80 | 1000 | 1.5°~4° | 3 | 45x2 | 5200x3200x3800 | 46 |
Hydraulic shearing cutting machine also can be called hydraulic cutting machine, which can be divided into hydraulic guillotine shearing machine, CNC hydraulic shearing machine, and hydraulic swing cutting machine.
This shearing equipment can be used for cutting all kinds of metal steel plate, hot rolled steel plate,cold-roll steel sheets,galvanized sheet,galvanized sheet,clad sheet steel,color sheet steel. clad sheet steel, bridge steel plate, boiler steel plate, shipbuilding, armoured steel plate, auto steel plate, structural plate, building, household appliancessteel plate, etc. It also can coordinate with other special equipment to complete cutting and bending process.

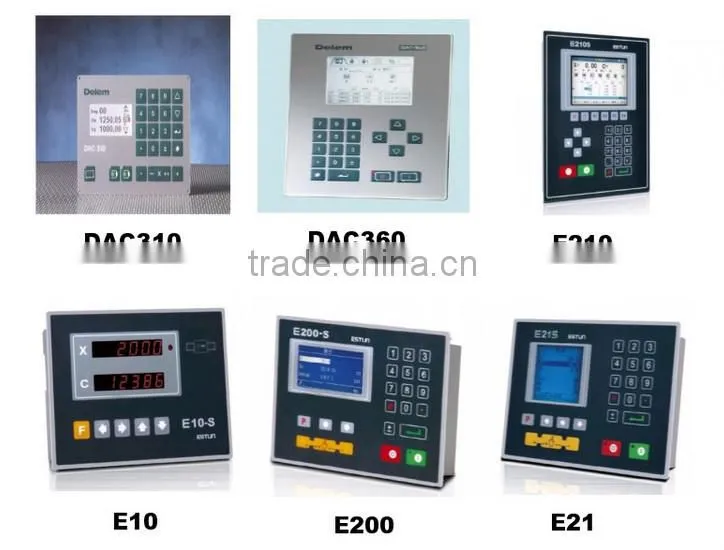

Different configuration according to our customers' requirement
1. All steel welded structure, secondary tempering, eliminate stress, has better rigidity and stability.
2. The gear stopper can be in turn, very easy for shearing the long plate.
3. The gear stopper adopt different size head, which is helpful for shear orientation effect after changed the shearing angle.
4. The blade gap hand adjustment.
5. Y type workbench, equipped with turn automatic compensation function, improve the workbench shear strength.
6. Three points support rolling guide, without guide rail gap, rectangular blade.
7. Oil cylinder adopt 45 # steel modulation process, the forging extrusion, nickel and phosphorus protective plating.
8. The main electrical components adopt Schneider brand.
9. The accumulator using nitrogen return.
1.Our advantage
Shen Chong (SC) is a mature brand in CHINA, after more than 20 years’ research, our design from technology, structure, security and precision has enhanced greatly. And we also obtained the CE and more strict standard certification. Our machines distribute worldwide about 20 countries which penetrate into more metal plate industries.
2.Certification
3.Exhibition
we attend exhibitions to other countries every year. Like Australian, India, Mexico,Russia,Pakistan,etc.
4.Customer visit
Up to now, we have many clients to visit our factory, they are end-user and agency. They are from Australia, India, Chile, Saudi Arabia,etc.
Sheng Chong Machine is a high-tech enterprise integrated by R&D, production and after-sale service in CNC hydraulic forging Machine.
Our factory occupies more than 30,000 m2, it has excellent and professional technical team, 10 R&D personnel with strong developing capability; around 200 workers producing more than 800 sets machines each year, and professional after-sales team to solve various problems which the customer may encounter in using the machine. With new design, fine technology, we get a good evaluation and brand effect in Beijing Machine tool Show, Italy Milan machine tool exhibition, Australia machinery exhibition etc.
Our main products contain QC11K series CNC guillotine cutting machine, QC11Y series hydraulic shearing machine, QC11YK series fast hydraulic shearing machine for metal plate, QC12K series NC hydraulic swing beam shear machine,QC12Y series hydraulic swing beam cutting machine; WC67Y series hydraulic press brake, WC67K series CNC hydraulic bending machine,WE67K series CNC electro-hydraulic synchronization press brake; SW11C series 3 roller rolling machine, W12NC series 4 rollers rolling machine for metal plate; Laser cutting machine, flame & plasma cutting machine; Automatic slitting machine line; Bending mould for press brake, blade for shearing machine etc.
So far, our company has been serving more than thousands of customers in light industry, aviation, metallurgy, instrumentation, electrical, stainless steel products, construction and decoration and other industries.
With high quality hydraulic machine, competitive price and excellent service, we have gained great reputation from more and more domestic and foreign customers!
1. Are you a trading company or factory?
--- We are factory occupying more than 30,000 m2, with excellent and professional technical team, 10 R&D personnel, professional after-sales team, and around 200 workers producing more than 800sets machines each year.
2. Does your company supply and build the machines to suit customer's needs and specifications?
--- Yes, we can custom-made the machine according to your requirements.
3. What is your advantages over your competitors' machine?
--- Our machines can be equipped with high configuration, and main components are from famous brands. We have strict quality control system, process technology system, technology innovate system.
4. Does the machine come with a guarantee?
--- We offer one year of warranty, during this time the technical guidance and accessories are provided for free.
5. Can I go to visit your factory?
--- Welcome to visit our factory to know our processing and technology power. And you will see different sample machine at our workshop.
6. How to get quicker quotation?
--- When you send us inquiry, please offer your requirement information:
• What kind of metal plate and the thickness?
• How about your configuration requirement?
• You also send us your bend products image, our engineer can design for you.
These information is helpful for us to choose suitable equipment solution and price quickly.
More kinds machines you can have a widely choice:
| Number | Model | Forging machinery |
| 1 | QC11Y | hydraulic shearing machine |
| 2 | QC11K | cnc shearing machine |
| 3 | QC11YK | rapid hydraulic shearing machine |
| 4 | WC67Y | hydraulic bending machine |
| 5 | WC67K | cnc bending machine |
| 6 | WE67K | electro-hydraulic synchronous CNC bending machine |
| 7 | WG67K | high speed bending machine |
| 8 | SW11SNC | rolling machine series |
