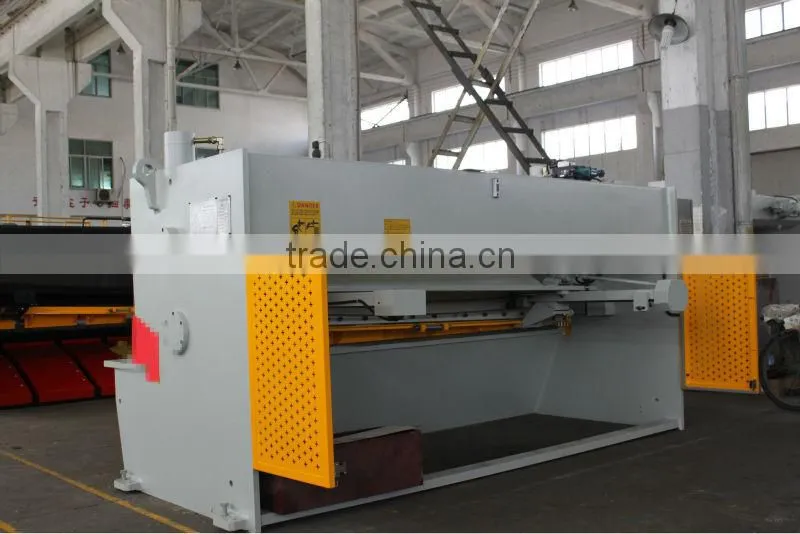

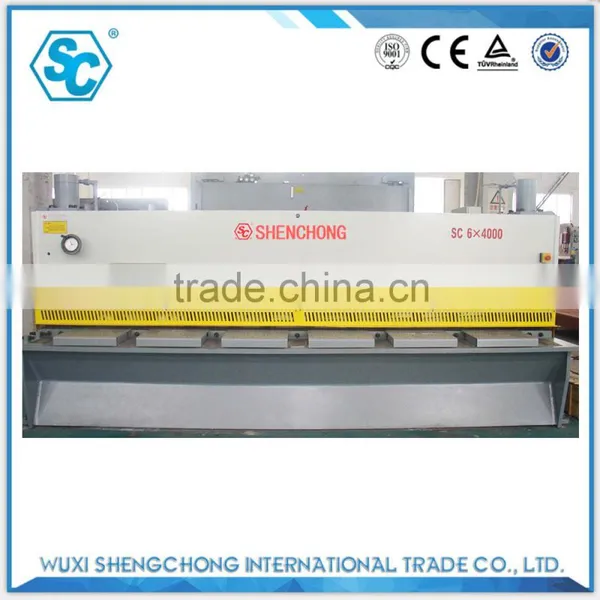

Help CenterHydraulic Shearing Machine, Stainless Steel Cutting Machine QC11Y-6X4000
Related Products
-
Hydraulic Shearing Machine for Precision Metal Structures Manufacturing QC11Y 25X2500US$ 35,000 - 38,000MOQ: 1 Set -
Hydraulic Shearing Machine QC11Y 12X4000mmUS$ 19,360 - 27,660MOQ: 1 Set
-
QC11Y-30X2500 Label Cutting Machine Hydraulic Shearing Cutting MachineUS$ 38,000 - 82,600MOQ: 1 Set
-
Hydraulic Shear Machine 16x6000US$ 52,500 - 75,000MOQ: 1 Set
-
Shear Bag, Shear Control, Small Hydraulic Shear, Hydraulic Metal Sheet CutUS$ 58,000 - 69,600MOQ: 1 Set
The Main Structure Character
Welded steel plates ( wall board, working table , cutting beam tempered twice and stress relieved ).The stress of the welded parts have been eliminated by vibration.
The machine enjoys high accuracy and high strength and good rigidity.
Feature and Advantages:
1.This machine belongs to second generation of hydraulic shear, with advanced integrated hydraulic system with an excellent reliability and easy for maintenance.
2. Cyliner in series fix the cutting angle when the machine working;
3. The rolling guide with 3-point support and improves the shearing quality.
4. The power storage device returns steadily and quickly.
5. Upper and bottom blades are all have 4 cutting edges, which can be turned around to use.So the using life of blade would be much extended.
6. Rapidly, accurately and conveniently adjusting the blade clearance with the handwheel.
7. As the cutting beam has been designed in inner-inclined structure, it is easy for plates to fall down and the accuracy of products can also be guaranteed. Shearing in sections (adjust the time displayed on liquid crystal).
8. Counter for the motorized back gauge, very accurate and convenient.
9. Rolling plate-support of the machine, this can reduce the hurt of the plates and reduce the conflict force.
Technical parameter
Specification |
QC11Y-6x4000 |
Max. Shearing Thickness |
6mm |
Max. Shearing length |
4000mm |
Depth Of Throat |
80mm |
Max. Length of Back Gauge |
750mm |
Reak angle adjustment |
0.5°~1°30’ |
Stroke Number |
10/Min |
Main Motor Power |
7.5KW |
Overall dimension |
4650×1840×2100mm |
Weight |
8.5 TON |
Hydraulic Shear Machine QC11Y series Technical parameter
Standard export backage to protect the machine and spare parts
