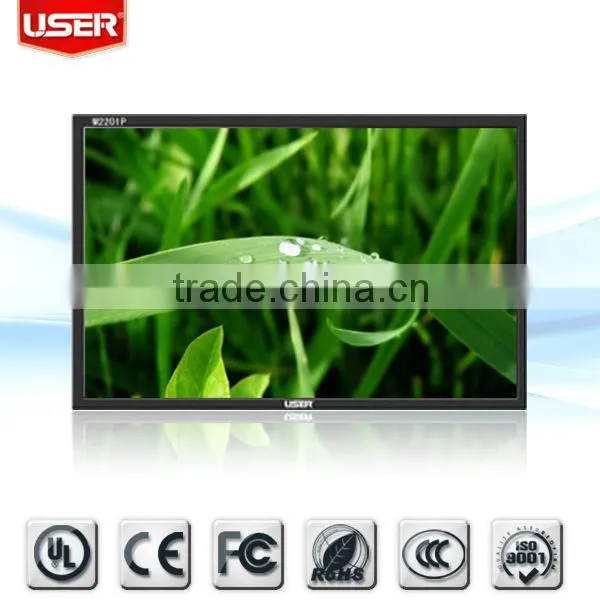

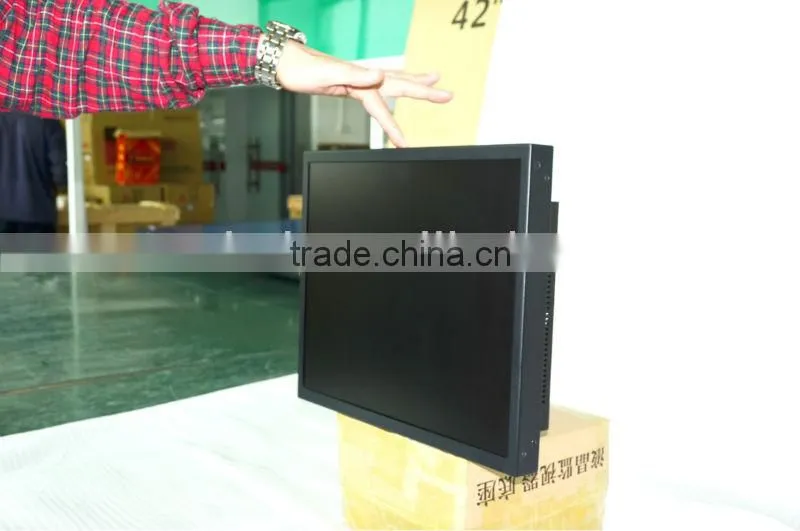

19 " tft cctv monitor
Features:
1.Using durable components to maintain the stability of uninterrupted work.
2.Intelligent Image Enhancement gives you perfect performance on both static and dynamic images.
3.Smart Contrast Ratio Technology provides the high contrast ratio, which can dynamically adjust contrast between black and 4.white to provide sharper and brighter images.
5.16.7 M display colors deliver rich and colorful images.
6.High brightness and Low power consumption.
7.Multi-Language OSD and User Guide.
8.Easy to install and maintain.
| Specifications | ||||||||||
| Model No. | US-M1901P | |||||||||
| Panel size | 19" TFT-LCD | |||||||||
| Display area(mm)/mode | 379(W)×304(H) 4:3 | |||||||||
| Maximum resolution | 1280×1024 | |||||||||
| Display color | 16.7M | |||||||||
| Pixel Pitch(mm) | 0.294(H)×0.294(V) | |||||||||
| Brightness (nits) | 450cd/m2 | |||||||||
| Contrast | 1000:1 | |||||||||
| Visual angle | 170°/170° | |||||||||
| Response time | 5ms | |||||||||
| Horizontal frequency | 30-75KHZ | |||||||||
| Vertical frequency | 56-75KHZ | |||||||||
| Life(hrs) | >60,000(hrs) | |||||||||
| Input and Output | ||||||||||

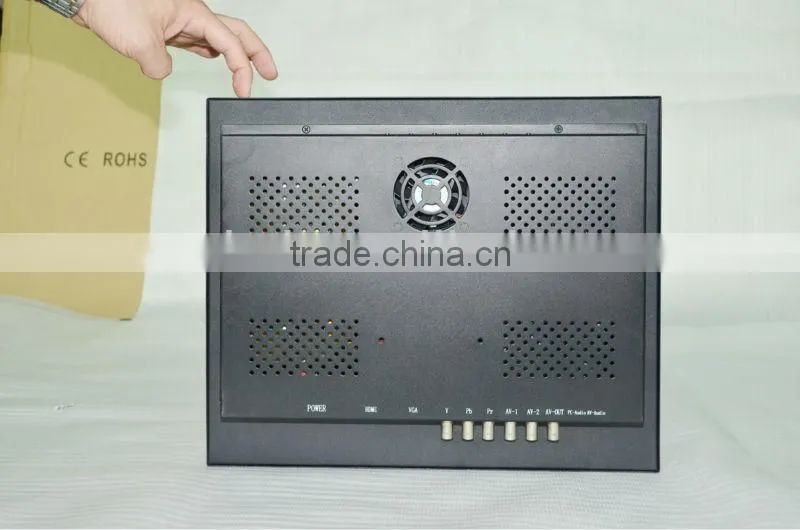

| Composite video input | 2 (BNC×2) | |||||||||
| Y,Pb,Pr/Y,Cb,Cr input | 3 (BNC×3) | |||||||||
| S-video | 1 (optional) | |||||||||
| D-15 pin RGB input | 1 | |||||||||
| DVI/HDMI | 1 (optional) | |||||||||
| Composite video output | 1 (BNC×1) | |||||||||
| Video | ||||||||||
| Color system | PAL/NTSC/SECAM | |||||||||
| OSD display( screen menu display) | ||||||||||
| Menu language | Chinese/English( Multiple Language Supported) | |||||||||
| Power | ||||||||||
| Power supply | AC100V~240V,50/60Hz | |||||||||
| Maximum power consumption | 45W | |||||||||
| Standby power consumption | 3W | |||||||||
| Temperature | ||||||||||
| Working temperature | 0°C~50°C | |||||||||
| Storage temperature | -20°C~60°C | |||||||||
| Working humidity | 60% | |||||||||
| Storage humidity | 60% | |||||||||
| Appearance | ||||||||||
| Body dimension(Lx W x H)mm | 398.8×326.8×66 | |||||||||
| Panel color/appearance | White,black,customized | |||||||||
| Case Material | Steel | |||||||||
| Net weight | 7.1kg | |||||||||
| Installation | Wall-mounted,desktop(optional) | |||||||||
Trade terms:
1.Price: Price coveres cost of controller &software,based on EXW SHENZHEN
2.Lead time:within 5-15working days after payment.
3.Payment terms:T/T,Western union,L/C.
4.Delivery :DHL ,UPS door to door service , by sea,by air , etc. According to your require .
Package:
Office and Factory:
We provide servise:
1. Customized requirment special display of 5-82 inches according to customer need is available, OEM&ODM are welcome.
2. Reasonable and satisfactory solutions Provided to you by our professional engineers and staffs .
3. Warranty: one year overall unit ( Non-artificial damage )
Certificate:(FCC,CCC,CE,RoHs,ISO9001:2008,UL)
Company breif introduction and products range:
ShenZhen User Special Display Technologies CO.,Ltd. As one of the leading providers of special display solution manufactor specialized in development ,production and marketing of LCD monitor 5″-82 ″Various Size. Any inquire from you are warmly welcome!
