15'' Cctv Lcd Monitor (high Brightness)
Negotiable
/ Piece
10 Pieces(Min. Order)
- T/T Money Gram Credit Card PayPal
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | USER | |
| Model Number | M1501P |
Product Description
If you are interest in it, please contact with us freely or call me directly
Features:
on the face can waterproof, anti-dust.
High brightness, sunlight readable.
| Specification model | US-M1501P | |||||||||
| Panel size | 15″TFT-LCD | |||||||||
| Display area(mm)/mode | 304(W)×228(H) 4:3 | |||||||||
| Maximum resolution | 1024x768 | |||||||||
| Display color | 16.7M | |||||||||
| Pixel Pitch(mm) | 0.297(H)×0.297(V) | |||||||||
| Brightness (nits) | 800cd/m2 | |||||||||
| Contrast | 1500:1 | |||||||||
| Visual angle | 170°/170° | |||||||||
| Response time | 5ms | |||||||||
| Horizontal frequency | 31-60KHZ | |||||||||
| Vertical frequency | 56-75KHZ | |||||||||
| Life(hrs) | >60,000(hrs) | |||||||||

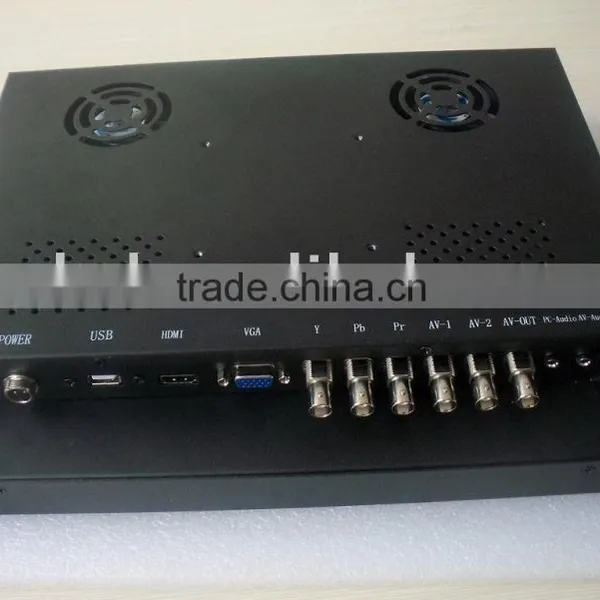

| Input and output | ||||||||||
| Composite video input | 2 (BNC×2) | |||||||||
| Y,Pb,Pr/Y,Cb,Cr input | 3 (BNC×3) | |||||||||
| S-video | 1(option) | |||||||||
| D-15 pin RGB input | 1 | |||||||||
| DVI/HDMI | 1 (option) | |||||||||
| Composite video output | 1 (BNC×1) | |||||||||
| Video | ||||||||||
| Color system | PAL/NTSC/SECAM | |||||||||
| OSD display( screen menu display) | ||||||||||
| Menu language | Chinese/English( multiple language option required) | |||||||||
| Power | ||||||||||
| Power supply | AC100V~240V,50/60Hz | |||||||||
| Maximum power consumption | <=25W | |||||||||
| Standby power consumption | 3W | |||||||||
| Temperature | ||||||||||
| Working temperature | 0°C~50°C | |||||||||
| Storage temperature | -10°C~60°C | |||||||||
| Working humidity | 20%~80% | |||||||||
| Storage humidity | 5%~95% | |||||||||
| Appearance | ||||||||||
| Body dimension(Lx W x H)mm | 329.0×258×60 | |||||||||
| Panel color/appearance | White, black, customized | |||||||||
| Panel material | steel | |||||||||
| Installation | Embedded, wall-mounted, rack-mounted, desktop | |||||||||
