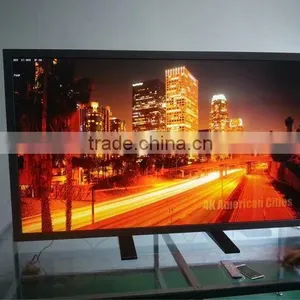

Help Center700 Nit 84INCH LCD CCTV Monitor(4:3) With Resistive Touch Screen
Related Products
-
Modern Most Popular 84" Lcd Cctv Monitor With Bnc InputNegotiableMOQ: 1 Piece -
Supply Professional 55 Inch Cctv Security Tft MonitorNegotiableMOQ: 1 Piece
-
China Cctv Factory 52 Inch Full hd High Quality Security MonitorNegotiableMOQ: 1 Piece
-
46" Surveillance Equipment Led Cctv Monitor With Hdmi InputNegotiableMOQ: 1 Piece
-
40 Inch High Bright Cctv Lcd Monitor With Bnc InputNegotiableMOQ: 1 Piece
Specifications
84 inch LCD cctv monitor
Full HD
High brightness
Professional metal case
CE,FCC,FSC ect.
84 inch lcd cctv monitor
Large LCD monitor series
1. The ultrathin super light narrow frame design, easy to use, beautiful appearance
2. Use A + professional industrial LCD screen
3. 5 ms fast response time, the picture really no trailing
4. Has the VGA state image reproduction rate automatic adjustment function
5. Using the latest 3 d digital comb filter and 3 d digital noise reduction technology
6. Intelligent temperature control fan design, environmental protection mute
7. Equipped with sensitive infrared receiving device, can remote control monitor each parameter
8. With automatic eliminate ghost function, protect the long-term use of liquid crystal screen
9. 178 ° wide Angle of view, display scale 16:9
10. 12 c bus latest control circuit, the stable performance
84 inch product parameter | |
Model no. |
UD-841PA |
Size |
84 inch tft lcd |
Aspect ratio |
16:9 |
Pixel pitch |
0.4845mm×0.4845mm(H,V) |
Max resolution |
1920*1080 |
Contrast |
2000:1 |
Brightness(cd/m2) |
700cd/m2 |
Response time(ms) |
6ms |
Viewing Angle |
178°/178°(H,V) |
Life time(hrs) |
50000(hrs) |
Panel color |
Black(Customized) |
Definition |
3D digital comb filter (PAL / NTSC) |
3D digital noise reduction | |
HD high-definition signals | |
Progressive scan | |
10-bit LCD panel driver a better over-color, smooth vivid | |
WCG-CCFL backlight color | |
Dual-screen function | |
Video Standard |
PAL/NTSC(auto-identification |
Support resolution |
640 X 480 (60/72/75 HZ) |
800 X 600 (60/72/75 HZ ) | |
1024 X 768 (60/72/75 HZ) | |
1280*1024 (60/72/75 HZ) | |
1366*768 (60/72/75 HZ) | |
1920*1080 (60HZ) | |

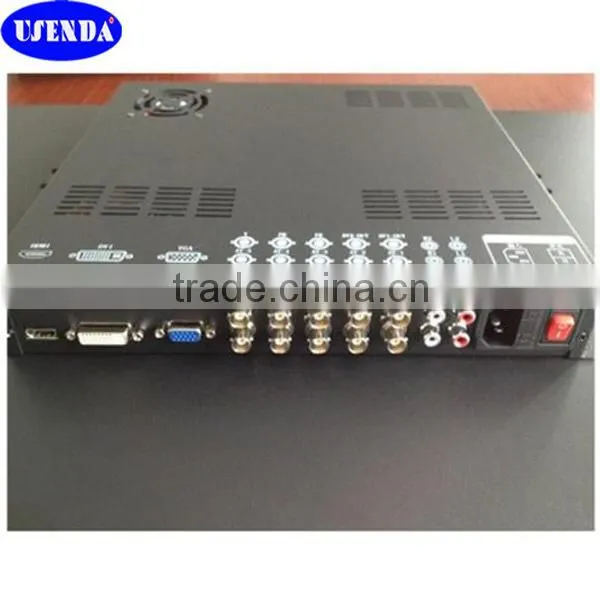

Connector |
The power socket |
VGA input | |
simulate RGB | |
BNC1/BNC2 input | |
NBC output | |
audio input | |
audio output | |
Panel button |
Menu button |
Left Arrow | |
right arrow | |
Video transfer | |
Power switch | |
Power consumption |
Working status:1500W(Max);Standby:3W |
Menu language |
English Chinese;(multi-language for choose) |
Installation |
VESA standard mounting hole or customer's request |
Product Structure |
Strong metal chassis, anti-static, anti-magnetic field, strong anti-interference |
Temperature / humidity |
0°~50°C/20%~80%(no condensation) |
Storage temperature / humidity |
-10°C~60°C/5- -95%(no condensation) |

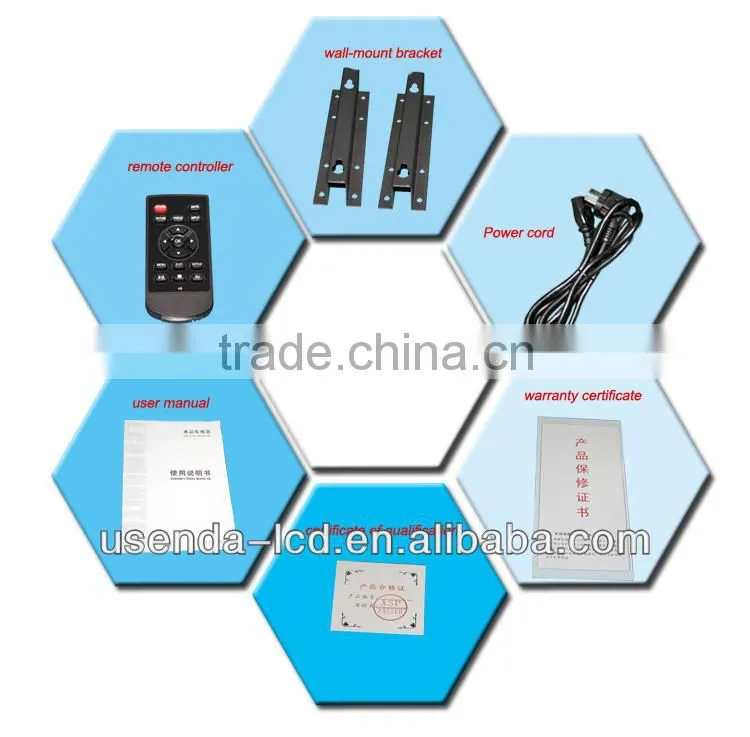

Accessories |
A user manual |
A warranty card | |
AC power cord | |
A VGA cable | |
Wall stent (optional) | |
A power adapter | |
A certificate | |
The appearance of size (steel): |
2112*328*1263 mm |

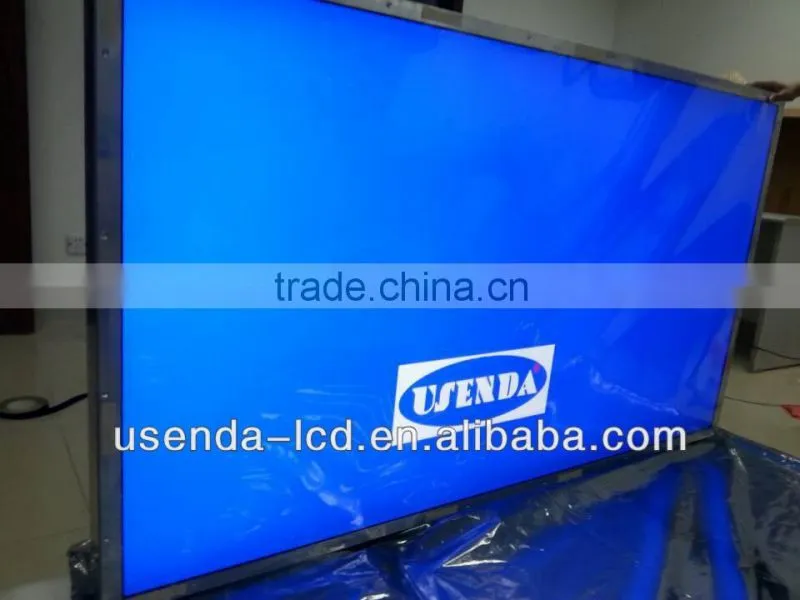

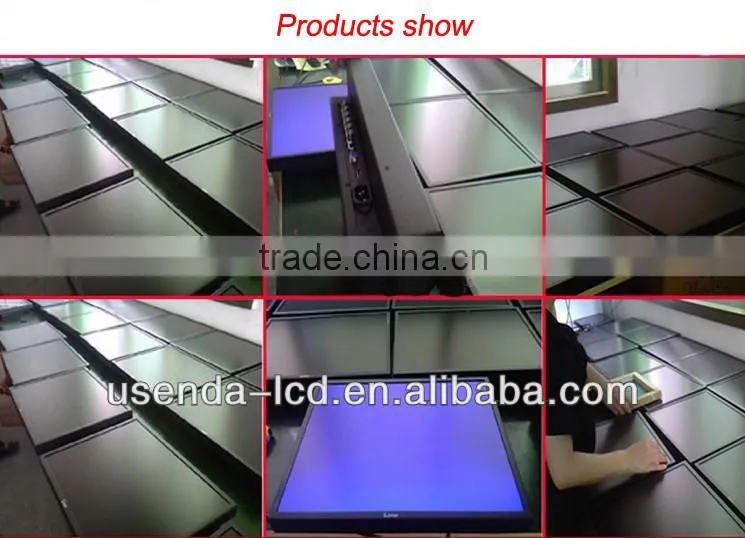

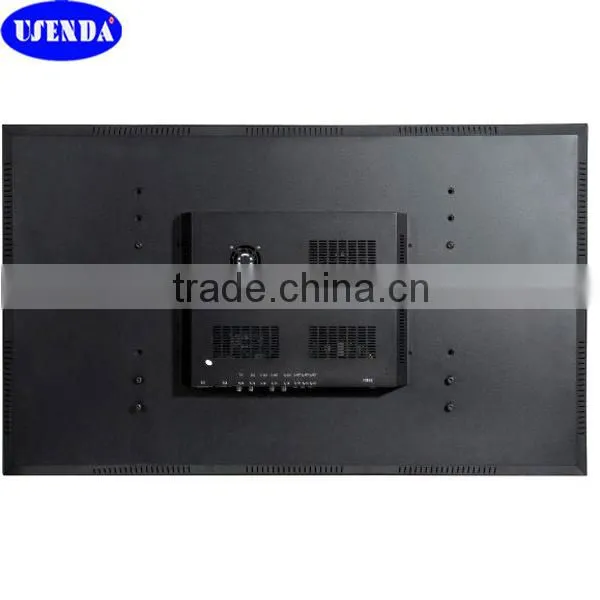

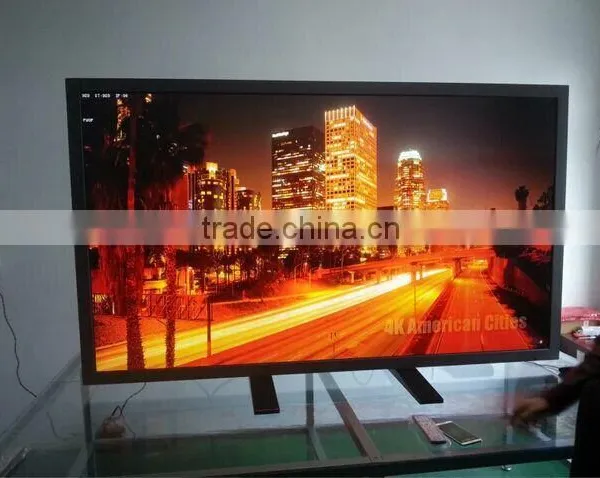

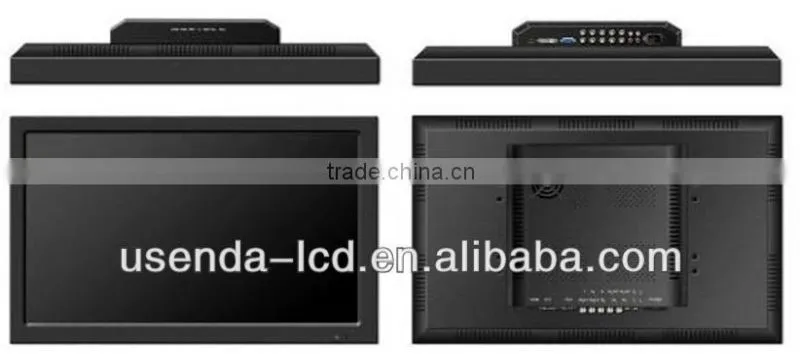

Product detail shows:

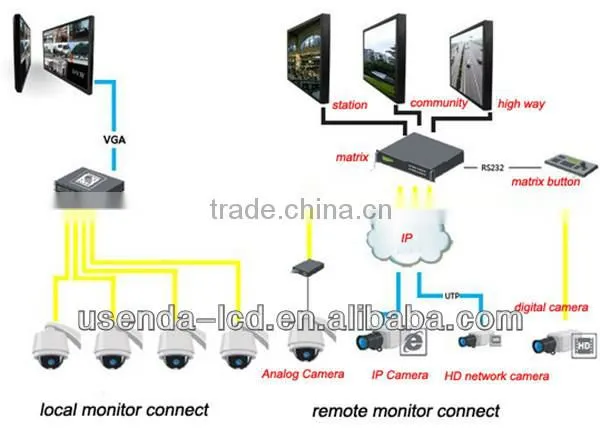

Monitor connect diagram
Shenzhen Usenda Digital Technology Limited Company, also named Tanda Int'l Electronics Limited, is a high-tech enterprise integrating the research and development, production and sales. We are engaged in LCD screens, LCD monitors, advertising players, all-in-one PCs, DID video wall products, etc. Products of our own brand are widely used in highways, railways, civil aviation scheduling command centers, army command centers, oil fields, factories, mines, electric powers, water conservancies, prisons, border defenses, banks, ...
Our Store:
1.Payment: T/T , 35% deposits before production, 65% balance to be paid before dleiverying (Western Union or Moneygram are welcomed)
2.Production lead time for 10~50pcs: 20days, 50~100pcs:35days
3.Sample can be delivered in 3days
4.Shipping freight are quoted under your requests
5.Shipping port: Shenzhen, HK
6.Discounts are offered based on order quantities
7.MOQ:1pc
Package
Contact Information:
Skype:lcd-warehouse
Tel:0755-36965657
