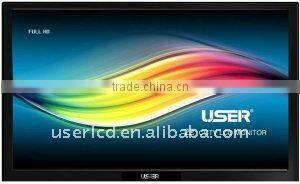

HD 22" Split Screen TFT CCTV LCD Monitor
Specifications
| Model No. | US-M2201P | |||||||||
| Panel size | 22" TFT-LCD | |||||||||
| Display area(mm)/mode | 476(W)×298(H) 16:10 | |||||||||
| Maximum resolution | 1680×1050 | |||||||||
| Display color | 16.7M | |||||||||
| Pixel Pitch(mm) | 0.282(H)×0.282(V) | |||||||||
| Brightness (nits) | 450cd/m2 | |||||||||
| Contrast | 1000:1 | |||||||||
| Visual angle | 178°/178° | |||||||||
| Response time | 5ms | |||||||||
| Horizontal frequency | 30-75KHZ | |||||||||
| Vertical frequency | 56-75KHZ | |||||||||
| Life(hrs) | >60,000(hrs) | |||||||||
Input&Output
| Composite video input | 2 (BNC×2) | |||||||||
| Y,Pb,Pr/Y,Cb,Cr input | 3 (BNC×3) | |||||||||
| S-video | 1 (optional) | |||||||||
| D-15 pin RGB input | 1 | |||||||||
| DVI/HDMI | 1 (optional) | |||||||||
| Composite video output | 1 (BNC×1) | |||||||||
Video
| Color system | PAL/NTSC/SECAM | |||||||||
| Compatible HDMI/DVI input | 480P,576P,720P,1080I,1080P | |||||||||
| 3D Comb filter | Yes | |||||||||
| Video reduction noise | Yes | |||||||||
OSD
| Menu language | Chinese/English( Multiple Language Supported) | |||||||||
Power
| Power supply | AC100V~240V,50/60Hz | |||||||||
| Maximum power consumption | <=52W | |||||||||
| Standby power consumption | 3W | |||||||||
Temperature
| Working temperature | 0°C~50°C | |||||||||
| Storage temperature | -20°C~60°C | |||||||||
| Working humidity | 60% | |||||||||
| Storage humidity | 60% | |||||||||
Appearance
| Body dimension(Lx W x H)mm | 496.7×323.1×66mm | |||||||||
| Panel color/appearance | White,black,customized | |||||||||
| Case Material | Metal | |||||||||
| Net weight | 7kg | |||||||||
| Installation | Wall-mounted,desktop(optional) | |||||||||
