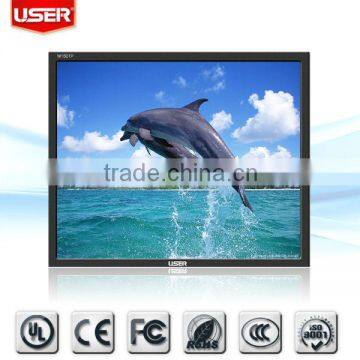

Security field 15" CCTV LCD Monitor
Negotiable
/ Set
10 Sets(Min.Order)
- 2000 Set / Sets per Month
- Shenzhen
- T/T Credit Card
You May Like
Product Details
| Resolution | Other, 1024x768 | Brightness | Other, 350cd/m2 |
Product Description
Specifications
1. Security field 15" CCTV LCD monitor2. CE, FCC,RoHS certified
3. BNC,VGA,HDMI,YPbPr input
4. Metal casing
5.Long life
Security field 15 " CCTV LCD Monitor
Specifications | ||||||||||
| Model No. | US-M1501P | |||||||||
| Panel size | 15" TFT-LCD | |||||||||
| Display area(mm)/mode | 306(W)×230(H) 4:3 | |||||||||
| Maximum resolution | 1024×768 | |||||||||
| Display color | 16.7M | |||||||||
| Pixel Pitch(mm) | 0.297(H)×0.297(V) | |||||||||
| Brightness (nits) | 350cd/m2 | |||||||||
| Contrast | 800:1 | |||||||||
| Visual angle | 150°/160° | |||||||||
| Response time | 5ms | |||||||||
| Horizontal frequency | 30-75KHZ | |||||||||
| Vertical frequency | 56-75KHZ | |||||||||
| Life(hrs) | 60,000(hrs) | |||||||||
| Input and output | ||||||||||
| Composite video input | 2 (BNC×2) | |||||||||
| YPbPrinput | 1 (BNC×3) | |||||||||
| S-video | 1 (optional) | |||||||||
| VGA | 1 | |||||||||
| HDMI | 1 | |||||||||
| Composite video output | 1 (BNC×1) | |||||||||
| Video | ||||||||||
| Color system | PAL/NTSC/SECAM | |||||||||
| OSD display( screen menu display) | ||||||||||
| Menu language | Chinese/English | |||||||||
| Power | ||||||||||
| Power supply | AC100V~240V,50/60Hz | |||||||||
| Maximum power consumption | 25W | |||||||||
| Standby power consumption | 3W | |||||||||
| Temperature | ||||||||||
| Working temperature | 0°C~50°C | |||||||||
| Storage temperature | -20°C~60°C | |||||||||
| Working humidity | 10%-90% | |||||||||
| Storage humidity | 10%-90% | |||||||||
| Appearance | ||||||||||
| Body dimension(Lx W x H)mm | 329x258x57 | |||||||||
| Panel color/appearance | black,customized | |||||||||
| Case Material | Steel | |||||||||
| Net weight | 3.9kg | |||||||||
| Installation | Wall-mounted,desktop(optional) | |||||||||
