Contact Platform Support
Help CenterSecurity 24" CCTV LCD Monitor
Negotiable
MOQ: 5 Sets (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Resolution:
Other, 1920x1200
Brightness:
Other, 500nits
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
24" CCTV MonitorNegotiableMOQ: 5 Sets -
32 Inch Full HD CCTV Monitor With Competitive PriceNegotiableMOQ: 1 Piece
-
42 Inch Cheap Price Full HD CCTV Monitor ScreenUS$ 300 - 600MOQ: 50 Pieces
-
42 Inch HD SDI CCTV MonitorNegotiableMOQ: 50 Pieces
-
42 Inch Cheap Price CCTV MonitorNegotiableMOQ: 1 Piece
Resolution
Other, 1920x1200
Brightness
Other, 500nits
Specifications
1. Security 24" CCTV LCD monitor2. CE, FCC,RoHS certified
3. BNC,VGA,HDMI,YPbPr input
4. Metal casing
5.For cctv monitoring

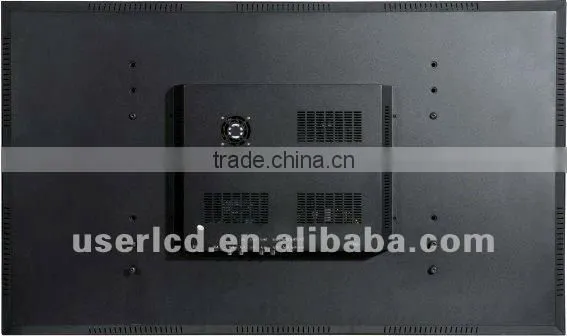

Security 24 " CCTV LCD Monitor
| Specifications | ||||||||||
| Model No. | US-M2401P | |||||||||
| Panel size | 23.6" TFT-LCD | |||||||||
| Display area(mm)/mode | 522(W)x294(H) 16:10 | |||||||||
| Maximum resolution | 1920x1200 | |||||||||
| Display color | 16.7M | |||||||||
| Pixel Pitch(mm) | 0.270(H)×0.270(V) | |||||||||
| Brightness (nits) | 500nits | |||||||||
| Contrast | 1200:1 | |||||||||
| Visual angle | 178°/178° | |||||||||
| Response time | 5ms | |||||||||
| Horizontal frequency | 31-60KHZ | |||||||||
| Vertical frequency | 56-75KHZ | |||||||||
| Life(hrs) | 60,000(hrs) | |||||||||
| Input and output | ||||||||||
| Composite video input | 3 (BNC×3) | |||||||||
| YPbPr input | 1 (BNC×3) | |||||||||
| S-video | 1(BNCx2) | |||||||||
| VGA | 1 | |||||||||
| DVI | 1 | |||||||||
| HDMI | 1 | |||||||||
| Composite video output | ||||||||||
| Video | ||||||||||
| Color system | PAL/NTSC/SECAM | |||||||||
| Compatible HDMI/DVI input | 480P,576P,720P,1080I,1080P | |||||||||
| 3D Comb filter | Yes | |||||||||
| Video reduction noise | Yes | |||||||||
| OSD display( screen menu display) | ||||||||||
| Menu language | Chinese/English | |||||||||
| Power | ||||||||||
| Power supply | AC100V~240V,50/60Hz | |||||||||
| Maximum power consumption | 65W | |||||||||
| Standby power consumption | 3W | |||||||||
| Temperature | ||||||||||
| Working temperature | 0°C~50°C | |||||||||
| Storage temperature | -20°C~60°C | |||||||||
| Working humidity | 10%-90% | |||||||||
| Storage humidity | 10%-90% | |||||||||
| Appearance | ||||||||||
| Body dimension(Lx W x H)mm | 549.8mm*367mm*95mm | |||||||||
| Panel color/appearance | White,black,customized | |||||||||
| Case Material | Metal | |||||||||
| Net weight | 10kg | |||||||||
| Installation | Wall-mounted,desktop(optional) | |||||||||
