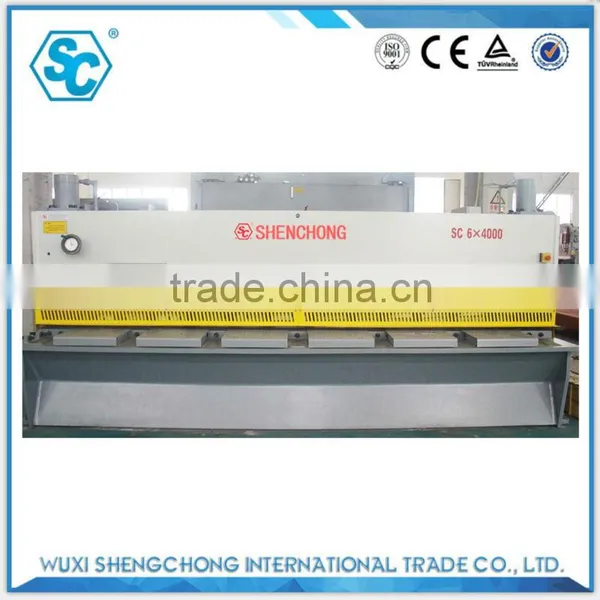

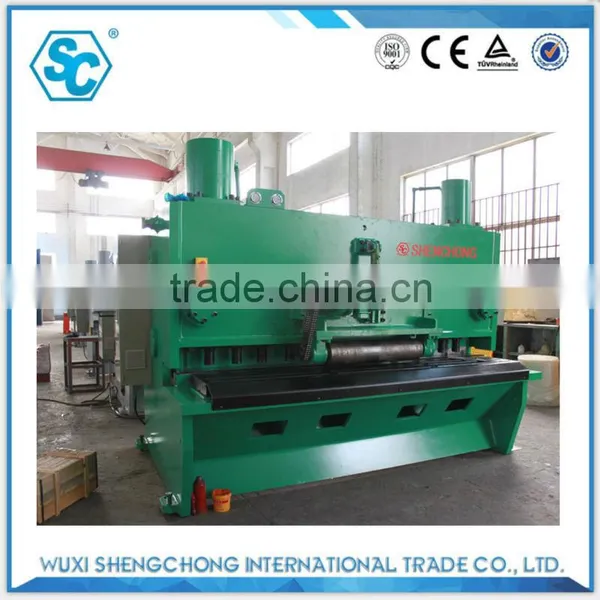

qc11y 8x3200 shear strength aluminum plate

FOB Price

USD $10,000 - $80,000 / Set

1 Set(Min.Order)

Supply Ability 100 Set / Sets per Month
Port SHANGHAI
Payment Terms:T/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Condition:	New	Place of Origin:	Jiangsu, China	Brand Name:	shen chong(SC)
Model Number:	QC series	Voltage:	100/110/115//220/230/240 V	Rated Power:	11 kw
Dimension(LWH):	3850x1990x2050 mm	Weight:	7 Ton	Certification:	CE, ISO
Warranty:	one year	After-sales Service Provided:	Engineers available to service machinery overseas

Product Description

Equipment name

qc11y 8x3200 shear strength aluminum plate

Hydraulic shears is one kind of sheet metal working equipment; It can cut carbon steel, aluminum plate, stainless steel plate, copper plate with different thicknesses to specific length. The working principle is to make use of reasonable blade clearance. It also can shear stainless steel, galvanized steel, general cold rolled steel, aluminum steel and other alloy sheet. This equipment can achieve high precision and high efficiency to cutting sheet metal.

It is widely used in aviation, metallurgy, light industry, construction, shipbuilding, automobiles, electricity, electrical, electronics, medical equipment and other industries, and also combined with other equipment into setsof metal plate working equipment.

Model	Depth Of Throat (mm)	Back Gauge Range	Rake Angle Adjustment	Strokes Per Minute	Main Motor
(thickness X cutting length)	Depth Of Throat (mm)	(mm)	Rake Angle Adjustment	Strokes Per Minute	(kw)
4×2000	80	750	0.5°~2°	14	5.5
4×2500	80	750	0.5°~2°	14	5.5
6×2500	80	750	0.5°~1°30′	14	7.5
6×3200	80	750	0.5°~1°30′	12	7.5
6×4000	80	750	0.5°~1°30′	10	7.5
6×5000	80	750	0.5°~1°30′	8	7.5
6×6000	80	750	0.5°~1°30′	8	7.5
8×2500	80	750	0.5°~2°	14	7.5
8×3200	80	750	0.5°~2°	12	7.5
8×4000	80	750	0.5°~2°	10	7.5
8×5000	80	750	0.5°~2°	7	15
8×6000	100	750	0.5°~2°	7	15
10×2500	100	750	0.5°~2°30′	10	15
10×3200	100	750	0.5°~2°30′	8	15
10×4000	100	750	0.5°~2°30′	6	15
10×5000	100	750	0.5°~2°30′	5	15
10×6000	100	750	0.5°~2°30′	5	15
12×2500	100	750	0.5°~2°30′	10	15
12×3200	100	750	0.5°~2°30′	8	15
12×4000	100	750	0.5°~2°30′	5	15
12×5000	100	750	0.5°~2°30′	5	30
12×6000	100	750	0.5°~2°30′	5	30
16×2500	100	750	0.5°~2°30′	8	15
16×3200	100	750	0.5°~2°30′	7	15
16×4000	100	750	0.5°~2°30′	6	15
16×5000	100	750	0.5°~3°	5	22
16×6000	100	750	0.5°~3°	5	37
20×2500	100	750	0.5°~3°	6	22
20×3200	120	750	0.5°~3°	5	30
20×4000	120	750	0.5°~3°	4	30
20×5000	120	750	0.5°~3°	4	37
20×6000	120	750	0.5°~3°	5	37
25×2500	120	750	0.5°~3.5°	5	37
25×3200	120	750	0.5°~3.5°	5	37
25×4000	120	750	0.5°~3.5°	4	37
30×2500	120	750	0.5°~3.5°	4	37
30×3200	120	750	1°~3.5°	3	37
40×2500	80	750	1°~4°	4	37×2

Application

Hydraulic shearing cutting machine also can be called hydraulic cutting machine, which can be divided into hydraulic guillotine shearing machine, CNC hydraulic shearing machine, and hydraulic swing cutting machine.

This QC11K shearing equipment can be used for cutting all kinds of metal steel plate, hot rolled steel plate,cold-roll steel sheets,galvanized sheet,galvanized sheet,clad sheet steel,color sheet steel. clad sheet steel, bridge steel plate, boiler steel plate, shipbuilding, armoured steel plate, auto steel plate, structural plate, building, household appliancessteel plate, etc. It also can coordinate with other special equipment to complete cutting and bending process.

Main feature

Different configuration according to our customers' requirement

1. Hydraulic drive, nitrogen return, all-steel welded structure, stress relief by Vibration tempering, durable, smooth and fast.

2. Advanced hydraulic systems, precision sliding guide, eliminating the sliding guide gap, adjustable shearing angle to reduce deformation of the sheet, improving cut quality.

3. Travel of tool head can be adjusted according to the width of metal plate. The knife head has four knife blade, which can be flipped for many times using.

4. Shearing clamping device adopts independent oil pressure cylinder, plastic feet is adopted at the bottom to prevent scratching the workpiece.

5. CNC system and position encoder adopt closed loop control system. High speed and accuracy, good stability, ensure feeding displacement accuracy. Also, CNC system has automatic compensation, detection, and other functions.

6. Electric back gauge adopt servo motor and ball screw, seamless transmission, manually fine-tuning, digital display.

7. The cnc system stores 25 manufacturing procedure, call optional choose the processing solution, and automatically carry out , easy to operate.

8. Equipped with automatic concede function, which avoid the friction between the blade and the sheet metal

Basic Configuration

1. The machine structure: Q235A steel material

2. Control system: Optional E200, E210, NC89, DAC310, touch screen and other operating systems

3. Anti-twist device: equipped with anti-twist device and leveling device, enhance the quality and accuracy

4. Safety devices: stainless steel front cover, light electric protector

5. Precision devices: ball screw, linear guide, servo motor, etc.

6. Other Accessories: high-pressure gear pump and cylinder seals from well-known brands

7. The main electrical components adopt Schneider brand

Why choose us?

1.Our advantage

Shen Chong (SC) is a mature brand in CHINA, after more than 20 years’ research, our design from technology, structure, security and precision has enhanced greatly. And we also obtained the CE and more strict standard certification. Our machines distribute worldwide about 20 countries which penetrate into more metal plate industries.

2.Certification

3.Exhibition

we attend exhibitions to other countries every year. Like Australian, India, Mexico,Russia,Pakistan,etc.

Company Information

Sheng Chong Machine is a high-tech enterprise integrated by R&D, production and after-sale service in CNC hydraulic forging Machine.

Our factory occupies more than 30,000 m2, it has excellent and professional technical team, 10 R&D personnel with strong developing capability; around 200 workers producing more than 800 sets machines each year, and professional after-sales team to solve various problems which the customer may encounter in using the machine. With new design, fine technology, we get a good evaluation and brand effect in Beijing Machine tool Show, Italy Milan machine tool exhibition, Australia machinery exhibition etc.

Our main products contain QC11K series CNC guillotine cutting machine, QC11Y series hydraulic shearing machine, QC11YK series fast hydraulic shearing machine for metal plate, QC12K series NC hydraulic swing beam shear machine,QC12Y series hydraulic swing beam cutting machine; WC67Y series hydraulic press brake, WC67K series CNC hydraulic bending machine,WE67K series CNC electro-hydraulic synchronization press brake; SW11C series 3 roller rolling machine, W12NC series 4 rollers rolling machine for metal plate; Laser cutting machine, flame & plasma cutting machine; Automatic slitting machine line; Bending mould for press brake, blade for shearing machine etc.

FAQ

1. Are you a trading company or factory?
--- We are factory occupying more than 30,000 m2, with excellent and professional technical team, 10 R&D personnel, professional after-sales team, and around 200 workers producing more than 800sets machines each year.

2. Does your company supply and build the machines to suit customer's needs and specifications?
--- Yes, we can custom-made the machine according to your requirements.

3. What is your advantages over your competitors' machine?
--- Our machines can be equipped with high configuration, and main components are from famous brands. We have strict quality control system, process technology system, technology innovate system.

4. Does the machine come with a guarantee?
--- We offer one year of warranty, during this time the technical guidance and accessories are provided for free.

5. Can I go to visit your factory?
--- Welcome to visit our factory to know our processing and technology power. And you will see different sample machine at our workshop.

6. How to get quicker quotation?
--- When you send us inquiry, please offer your requirement information:
• What kind of metal plate and the thickness?
• How about your configuration requirement?
• You also send us your bend products image, our engineer can design for you.
These information is helpful for us to choose suitable equipment solution and price quickly.

More choice

More kinds machines you can have a widely choice:

Number	Model	Forging machinery
1	QC11Y	hydraulic shearing machine
2	QC11K	cnc shearing machine
3	QC11YK	rapid hydraulic shearing machine
4	WC67Y	hydraulic bending machine
5	WC67K	cnc bending machine
6	WE67K	electro-hydraulic synchronous CNC bending machine
7	WG67K	high speed bending machine
8	SW11SNC	rolling machine series
