QC11Y-4x3200 Small Hydraulic Guillotine Shearing Machine
US$ 9,210 - 13,160
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Jiangsu, China
Brand Name:
SC
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
QC11Y-6X3200 Hydraulic Shearing Machine, Hydraulic Cutting MachineUS$ 10,150 - 14,500MOQ: 1 Unit -
QC11Y-25X2500 Hydraulic CNC Bending Machine for Door FrameUS$ 25,000 - 38,000MOQ: 1 Set
-
QC11Y-20X6000 Foot Operated Hydraulic Plate ShearsUS$ 38,330 - 98,330MOQ: 1 Set
-
Hydraulic Metal Sheet Shearing Cutting Machine QC11Y-12X6000US$ 19,250 - 27,500MOQ: 1 Set
-
QC12Y Series Hydraulic Shearing Machine, Guillotine MachineUS$ 19,360 - 27,660MOQ: 1 Set
Condition
New
Place of Origin
Jiangsu, China
Brand Name
SC
Model Number
QC11Y-6X2500
Voltage
100/110/115//220/230/240v
Dimension(L*W*H)
3100*1725*1900
Weight
5.3 TON
Certification
CE ,ISO9001:2000,SGS
Warranty
12 months
After-sales Service Provided
Engineers available to service machinery overseas

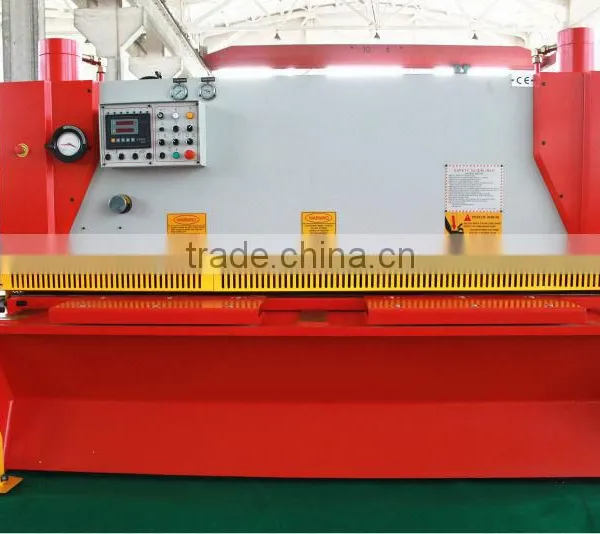

QC11Y-4x3200 Small Hydraulic guillotine shearing machine
Details of Hydraulic guillotine shear QC11Y-4X3200
Welded steel plate construction, eliminate internal stress by heat treatment, with high strength and good rigidity.
Advanced integrated hydraulic system with an excellent reliability.
The rolling guide with 3-point support and improves the shearing quality.
Rapidly, accurately and conveniently adjusting the blade clearance with the handwheel.
The rectangular blades featuring long lifetime with 4 cutting edges
The adjustable rake angle can minmize plate deformation.
As the cutting beam has been designed in inner-inclined structure, it is easy for plates to fall down and the accuracy of products can also be guaranteed.
A light alignment device makes shearing much easier and more efficient
Technical Data
| Models | Mild Steel (450MPa) | Cutting Length (mm) | Back Gauge Range(mm) | Depth Of Thoat(mm) | Rake Angle Adjustment | Strokes Per Minute | Main Motor(KW) | L×W×H (mm) | Weight(T) |
| 6×2500 | 6 | 2500 | 750 | 80 | 0.5°1.5° | 14 | 7.5 | 3100×1725×1960 | 5.3 |
| 6×3200 | 6 | 3200 | 750 | 80 | 0.5°1.5° | 12 | 7.5 | 3650×1750×1980 | 6.5 |
| 6×4000 | 6 | 4000 | 750 | 80 | 0.5°1.5° | 10 | 7.5 | 4650×1780×2075 | 7.5 |
| 6×5000 | 6 | 5000 | 750 | 80 | 0.5°1.5° | 8 | 7.5 | 5650×1830×2250 | 10.5 |
| 6×6000 | 6 | 6000 | 750 | 80 | 0.5°1.5° | 8 | 7.5 | 6650×1890×2380 | 15.2 |
| 8×2500 | 8 | 2500 | 750 | 80 | 0.5°1.5° | 14 | 7.5 | 3100×1725×1960 | 6 |
| 8×3200 | 8 | 3200 | 750 | 80 | 0.5°1.5° | 12 | 7.5 | 3850×1750×1980 | 6.8 |
| 8×4000 | 8 | 4000 | 750 | 80 | 0.5°1.5° | 10 | 7.5 | 4650×1850×2075 | 8.5 |
| 8×5000 | 8 | 5000 | 750 | 80 | 0.5°2° | 7 | 15 | 5805×2000×2500 | 12.5 |
| 8×6000 | 8 | 6000 | 750 | 100 | 0.5°2° | 7 | 15 | 6805×2115×2715 | 19.8 |
| 10×2500 | 10 | 2500 | 750 | 120 | 0.5°2.5° | 10 | 15 | 3195×1800×2210 | 8.2 |
| 10×3200 | 10 | 3200 | 750 | 120 | 0.5°2.5° | 8 | 15 | 3895×1800×2240 | 9.15 |
| 10×4000 | 10 | 4000 | 750 | 120 | 0.5°2.5° | 6 | 15 | 4695×1930×2275 | 11 |
| 10×5000 | 10 | 5000 | 750 | 120 | 0.5°2.5° | 5 | 15 | 5905×2115×2715 | 16 |
| 10×6000 | 10 | 6000 | 750 | 120 | 0.5°2.5° | 5 | 15 | 6905×2215×2800 | 22 |
| 12×2500 | 12 | 2500 | 750 | 120 | 0.5°2.5° | 10 | 15 | 3195×1800×2210 | 8.7 |
| 12×3200 | 12 | 3200 | 750 | 120 | 0.5°2.5° | 8 | 15 | 3895×1800×2240 | 9.8 |
| 12×4000 | 12 | 4000 | 750 | 120 | 0.5°2.5° | 6 | 15 | 4710×1950×2485 | 13.4 |
| 12×5000 | 12 | 5000 | 750 | 120 | 0.5°2.5° | 5 | 18.5 | 5905×2115×2800 | 20 |
| 12×6000 | 12 | 6000 | 750 | 120 | 0.5°2.5° | 4 | 18.5 | 7000×2300×3100 | 29 |
| 16×2500 | 16 | 2500 | 750 | 120 | 0.5°2.5° | 8 | 15 | 3215×1880×2340 | 9 |
| 16×3200 | 16 | 3200 | 750 | 120 | 0.5°2.5° | 7 | 15 | 3915×1880×2445 | 11 |
| 16×4000 | 16 | 4000 | 750 | 120 | 0.5°1.5° | 6 | 15 | 4715×1950×2590 | 15 |
| 16×5000 | 16 | 5000 | 750 | 120 | 0.5°3° | 5 | 22 | 6000×2300×3000 | 23 |
| 16×6000 | 16 | 6000 | 750 | 120 | 0.5°3° | 4 | 37 | 7000×2300×3100 | 36 |
| 20×2500 | 20 | 2500 | 750 | 120 | 0.5°3° | 6 | 22 | 3215×1890×2465 | 11 |
| 20×3200 | 20 | 3200 | 750 | 120 | 0.5°3° | 5 | 30 | 4120×1890×2780 | 18 |
| 20×4000 | 20 | 4000 | 750 | 120 | 0.5°3° | 4 | 30 | 4925×2150×2900 | 21 |
| 20×5000 | 20 | 5000 | 750 | 120 | 0.5°3° | 4 | 37 | 6000×2300×3050 | 29 |
| 25×2500 | 25 | 2500 | 750 | 120 | 0.5°3.5° | 5 | 30 | 3435×2000×2710 | 15.3 |
| 25×3200 | 25 | 3200 | 750 | 120 | 0.5°3.5° | 5 | 30 | 4120×2200×3000 | 21 |
| 25×4000 | 25 | 4000 | 750 | 120 | 0.5°3.5° | 3 | 30 | 4950×2200×3150 | 26 |
| 30×2500 | 30 | 2500 | 750 | 120 | 1°3.5° | 4 | 30 | 3435×2020×2770 | 17 |
| 30×3200 | 30 | 3200 | 750 | 120 | 1°3.5° | 3 | 37 | 4200×2300×3200 | 23 |
Machines parts:
