Help CenterP1.875 Video Large Viewing Angle COB LED Advertising Display
Related Products
-
P2.5 COB LED Display Screen for Advertising Conference RoomNegotiableMOQ: 4 Pieces -
High Precision Wide COB P2.5 Giant Display LED Screen for Conference RoomNegotiableMOQ: 4 Pieces
-
P2.5 COB LED Display Screen Indoor for Conference RoomNegotiableMOQ: 4 Pieces
-
P1.875 HD COB Vedio LED Advertising Screen DisplayNegotiableMOQ: 1 Piece
-
P2.5 COB LED Display Screen Indoor for Conference Room StudioNegotiableMOQ: 4 Pieces
Tech Support: Cedar provides free of charge technical training for customers. You can send your engineers who have knowledge of electronics
and information to our factory and we provide free technical training, which contains training operation, installation and maintenance
of the LED display.
Warranty: 2years
| Item | NP1.875-IM |
| Application | Indoor |
| Pixel Parameters | |
| Pixel Setting | 1R1G1B |
| Pixel Pitch(mm) | 1.875 mm |
| Pixel Density(Pixel/m2) | 284444 |
| Model Parameters | |
| Module Resolution (WxH) | 128 Pixel × 128 Pixel |
| Module Size (WxH) | 240 mm × 240 mm |
| Module Weight(kg) | 0.64 |
| Cabinet Parameters | |
| Cabinet Resolution(WxH) | 256 Pixel × 256 Pixel |
| Cabinet Size(WxH mm) | 480 mm × 480 mm |
| Cabinet Weight(kg) | 11.5 |
| Cabinet Weight(kg/m2) | 46.9 |
| Maintain Mode | Maintain the Front or Back of the Screen |
| System Parameters | |
| Drive Mode | Constant Current 1/32 Scanning |
| Brightness | ≥600 cd/m2 |
| Horizontal Viewing Angle | 160° |
| Vertical Viewing Angle | 160° |
| Recommended Viewing(m) | ≥2 m |
| Max Power Consuption(W/m2) | < 660 |
| Mean Power Consuption(W/m2) | < 220 |
| Uniformity of Luminance | ≥95% |
| Refresh Frequency(Hz) | ≥1200 Hz |
| Colors(14bit) | 4.4 Trillion |
| Dot-by-Dot Calibration | Dot-by-Dot Calibration before Delivery or on Site |
| Brightness Adjustment | 256 Grades Automatically or Manually |
| Color Temperature(K) | 3000 K ~ 10000 K |
| Life Time(h) | ≥100,000 |
| Working Temperature | -10 ℃ ~ +50 ℃ |
| Working Humidity | 10% ~ 90% RH |
| Working Voltage | AC 220 V ± 10% or AC 110 V ± 10% |
| Software | Cedar Studio, Windows XP,Windows 7/8 |
| Level of Protection | IP40 |
High Density
Supper Clarity & Low Gray Level
Energy Saving for High Efficiency
Large Viewing Angle
High Uniformity
High Reliability
Excellent Color Mixing
The Projects of the Products:
Q: Why choose Cedar Electronics?
A: Always provide the better led display & lighting for you.
Q: Who is Cedar Electronics:
A: A pro team of R&D, manufacture, market, service provider, project provider on led display and lighting for more
than a decade.
Q: Is the sample available?
A: Yes, we are very glad to make the samples for your test.
Q: What is your client?
A: wholesaler, import & export company, hotel projects, supermarket chain, trading agent, big retail chains.

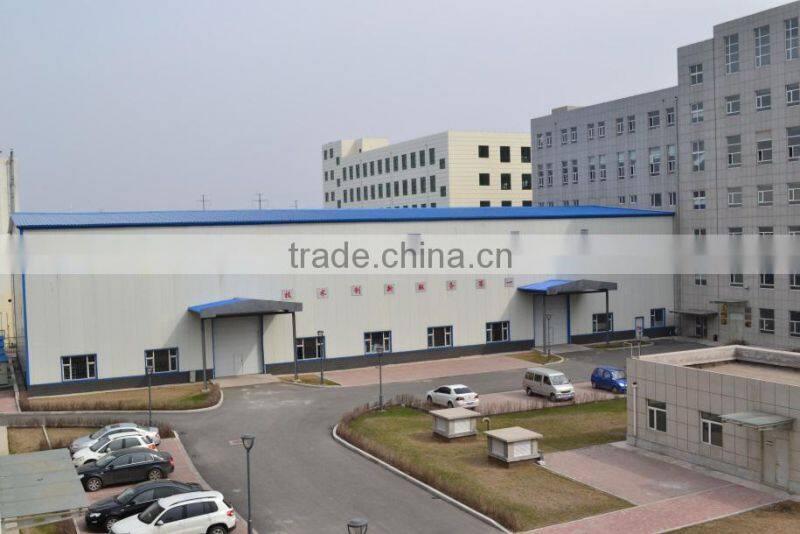

Since 2001, Changchun Cedar Electronics Technology Co., Ltd.
is a professional LED display and lighting manufacturer with 30,000m2 producing base in China. As a business of CIOMP of CAS, Cedar integrates R&D, production, marketing, services and postgraduate education on LED as a whole.
Got Chinese 3C, CE, RoHS, UL, FCC and GOST-R Certificates.
The R&D team,
composed by 3 individual R&D centers, equipped with top facilities of PhD., post grads. and LED display and lighting testing labs, such as luminosity distribution testing lab, high-low temperature and humid environment adaptability lab, electrical characteristics and optical component testing routine lab.
Cedar Show:
