P2.5 COB LED Display Screen Indoor for Conference Room Studio

P2.5 COB LED Display Screen Indoor for Conference Room Studio thumbnail-1
P2.5 COB LED Display Screen Indoor for Conference Room Studio thumbnail-2
P2.5 COB LED Display Screen Indoor for Conference Room Studio thumbnail-3
P2.5 COB LED Display Screen Indoor for Conference Room Studio thumbnail-4
P2.5 COB LED Display Screen Indoor for Conference Room Studio thumbnail-5
P2.5 COB LED Display Screen Indoor for Conference Room Studio thumbnail-6
P2.5 COB LED Display Screen Indoor for Conference Room Studio photo-1
P2.5 COB LED Display Screen Indoor for Conference Room Studio photo-2
P2.5 COB LED Display Screen Indoor for Conference Room Studio photo-3
P2.5 COB LED Display Screen Indoor for Conference Room Studio photo-4
P2.5 COB LED Display Screen Indoor for Conference Room Studio photo-5
P2.5 COB LED Display Screen Indoor for Conference Room Studio photo-6
Negotiable MOQ: 4 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Jilin, China
Brand Name:
Cedar
Model Number:
NP2.5-IM
Contact Supplier Request Quote Chat Now
Changchun Cedar Electronics Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Dalian port Manzhouli port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Jilin, China
Brand Name Cedar
Model Number NP2.5-IM
Usage Indoor
Tube Chip Color Full Color
Display Function Video
Pixels Other, 2.5mm
Screen Dimension 480 X 480mm



Our Services

Tech Support: Cedar provides free of charge technical training for customers. You can send your engineers who have knowledge of electronics

and information to our factory and we provide free technical training, which contains training operation, installation and maintenance

of the LED display.



Warranty: 2years

Tech Parameters
Item NP2.5-IM
Application Indoor
Pixel Parameters
Pixel Setting 3-in-1 COB LED, 1R1G1B
Pixel Pitch(mm) 2.5 mm
Pixel Density(Pixel/m2) 160000
Model Parameters
Module Resolution (WxH) 96 Pixel × 96 Pixel
Module Size (WxH) 240 mm × 240 mm
Module Weight(kg) 0.64kg
Cabinet Parameters
Cabinet Resolution(WxH) 192 Pixel × 192 Pixel
Cabinet Size(WxH mm) 480 mm × 480 mm
Cabinet Weight(kg) 11.5 kg
Cabinet Weight(kg/m2) 47.9kg/m2
Maintain Mode Rear
System Parameters
Drive Mode Constant Current 1/32 Scanning
Brightness ≥600 cd/m2
Horizontal Viewing Angle 160°
Vertical Viewing Angle 160°
Recommended Viewing(m) ≥2.5m
Max Power Consuption(W/m2) ≤660
Mean Power Consuption(W/m2) ≤220
Uniformity of Luminance ≥95%
Refresh Frequency(Hz) ≥1200 Hz
Colors(14bit) 4.4 Trillion
Dot-by-Dot Calibration Dot-by-Dot Calibration before Delivery or on Site
Brightness Adjustment 256 Grades Automatically or Manually
Color Temperature(K) 3000 K ~ 10000 K
Life Time(h) ≥100,000
Working Temperature -10 ℃ ~ +50 ℃
Working Humidity 10% ~ 90% RH
Working Voltage AC 220 V ± 10% or AC 110 V ± 10%
Software Cedar Studio, Windows XP, Windows 7/8



Advantages

High Density

Supper Clarity & Low Gray Level

Energy Saving for High Efficiency

Large Viewing Angle

High Uniformity

High Reliability

Excellent Color Mixing

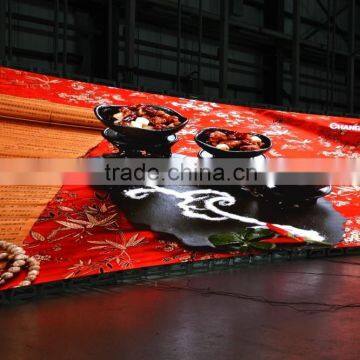

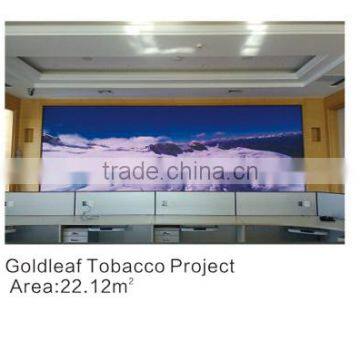

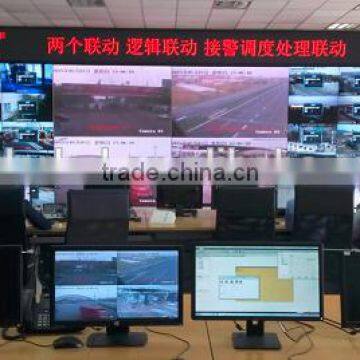

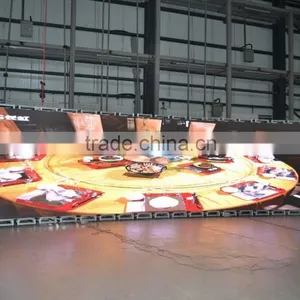

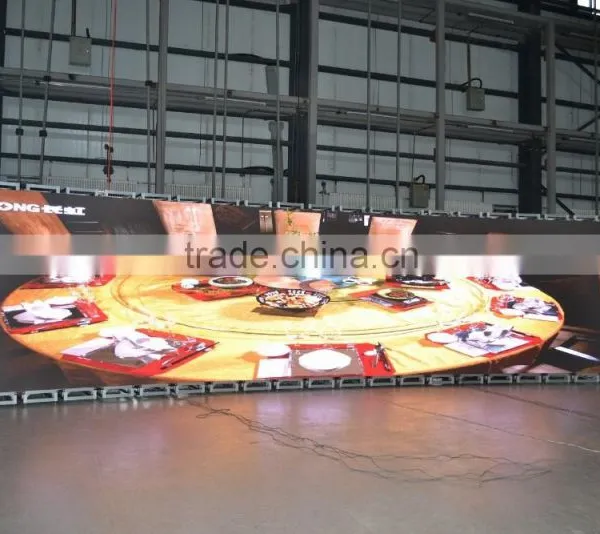

The Projects of the Products:

P2.5 COB LED Display Screen Indoor for Conference Room StudioP2.5 COB LED Display Screen Indoor for Conference Room Studio

FAQ

Q: Why choose Cedar Electronics?

A: Always provide the better led display & lighting for you.

Q: Who is Cedar Electronics:

A: A pro team of R&D, manufacture, market, service provider, project provider on led display and lighting for more

 than a decade.

Q: Is the sample available?

A: Yes, we are very glad to make the samples for your test.

Q: What is your client?

A: wholesaler, import & export company, hotel projects, supermarket chain, trading agent, big retail chains.

Company Information

 Since 2001, Changchun Cedar Electronics Technology Co., Ltd.

 is a professional LED display and lighting manufacturer with 30,000m2 producing base in China. As a business of CIOMP of CAS, Cedar integrates R&D, production, marketing, services and postgraduate education on LED as a whole.



 Got Chinese 3C, CE, RoHS, UL, FCC and GOST-R Certificates.



The R&D team,

composed by 3 individual R&D centers, equipped with top facilities of PhD., post grads. and LED display and lighting testing labs, such as luminosity distribution testing lab, high-low temperature and humid environment adaptability lab, electrical characteristics and optical component testing routine lab.



 Cedar  Show:

P2.5 COB LED Display Screen Indoor for Conference Room StudioP2.5 COB LED Display Screen Indoor for Conference Room StudioP2.5 COB LED Display Screen Indoor for Conference Room StudioP2.5 COB LED Display Screen Indoor for Conference Room Studio
