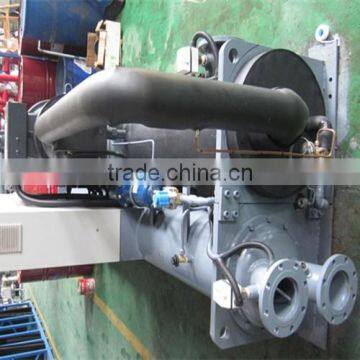

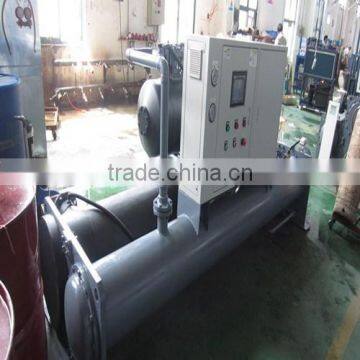

AC-330WS Screw Type Chiller for Industrial

Name: AC-330WS Screw Type Chiller for Industrial
Brand: AODE
SKU: 103425311
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Type:

Water-Cooled

Place of Origin:

Guangdong, China

Shenzhen Aode Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Water-Cooled

Place of Origin Guangdong, China

Brand Name AODE

Model Number AC-100WS

Cooling Capability(kw) 100KW

Voltage 380V

Dimension(L*W*H) 2500*750*1800mm

Weight 800kg

Certification CE

Warranty one year

After-sales Service Provided Engineers available to service machinery overseas

AC-330WS screw type chiller for Industrial Quick Detail:

AC-330WS screw type chiller for Industrial Description:

Compressor high and low voltage protection, internal overheating protection
Low water flow alarm devices: Low water temperature anti-icing alarm
Compressor imported from Europe, America and Japan(Hanbell Levin Beverly)
Oxygen-free welding from refrigeration system, reduce the oxides and smooth the surface
Denmark Danfoss and USA Eco throttle components
Denmark Danfoss solenoid valve filter
Stainless steel plate, coil type, shell and tube, finned high efficiency heat exchanger
RS485 communication function for automated management(optional)
Brands OMRON, FUJI, TE, LG, MOELLER, ABB and WEST for electric appliances
Control mode: imported microcomputer or PLC(optional)
Perfect safety protection, fault display, easy repair and maintenance even without professionals
High-efficiency evaporator and condenser which can save energy by more than 30%
Temperature control range:7-35℃, Temperature control accuracy:±2℃

AC-330WS screw type chiller for Industrial Specifications:

ITEM		UNIT	AC-330WS
Refrigerating capacity		Kcal/h	283800
		KW	330
Input water		KW	70
Maximum Running Current		A	119
Energy adjust range		%	100-75-50-25-0
Power supply			3N-50HZ-380V
R22 Refrigerant	Filling Volume	kg	55
	Control mode		Thermostatic External pressure expansion valve
Compressor	Model		Semi-enclosed screw-type
	Power	Kw	70
Evaporator	Model		Shell and Tube
	Chilled water flow	M3/h	56.8
	Water resistance	Kpa	42
	Water inlet/outlet diameter	DN	100.0
Condenser	Model		Shell and Tube
	Chilled water flow	M3/h	74
	Water resistance	Kpa	45
	Water inlet/outlet diameter	DN	100.0
Protecting equipment			Over/low voltage switch, antifreeze switch, safety valve, overload protection devices, coil overheating protector, temperature automatically switch, reverse phase protector
Size(L×W×H)		mm	3100×900×1900
Weight		kg	1900
Running Weight		Kg	2050
