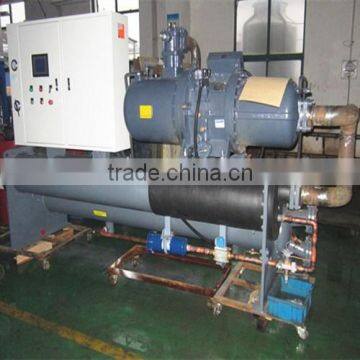

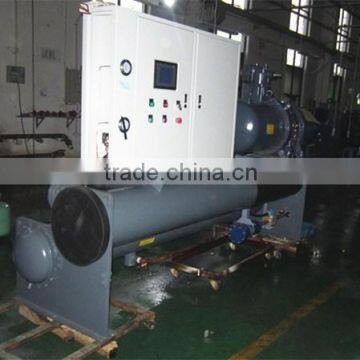

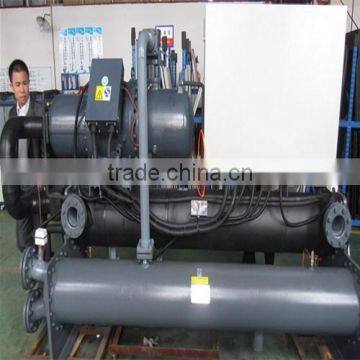

AC-490WS Water Cooled Screw Chiller Machine for Industrial

Name: AC-490WS Water Cooled Screw Chiller Machine for Industrial
Brand: AODE
SKU: 103425367
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Type:

Water-Cooled

Place of Origin:

Guangdong, China

Shenzhen Aode Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Water-Cooled

Place of Origin Guangdong, China

Brand Name AODE

Model Number AC-490WS

Cooling Capability(kw) 490KW

Voltage 380V

Dimension(L*W*H) 3606*1280*1600mm

Weight 2490kg

Certification CE

Warranty one year

After-sales Service Provided Engineers available to service machinery overseas

AC-490WS water cooled screw chiller machine for Industrial Quick Detail:

AC-490WS water cooled screw chiller machine for Industrial Description:

Compressor high and low voltage protection, internal overheating protection
Low water flow alarm devices: Low water temperature anti-icing alarm
Compressor imported from Europe, America and Japan(Hanbell Levin Beverly)
Oxygen-free welding from refrigeration system, reduce the oxides and smooth the surface
Denmark Danfoss and USA Eco throttle components
Denmark Danfoss solenoid valve filter
Stainless steel plate, coil type, shell and tube, finned high efficiency heat exchanger
RS485 communication function for automated management(optional)
Brands OMRON, FUJI, TE, LG, MOELLER, ABB and WEST for electric appliances
Control mode: imported microcomputer or PLC(optional)
Perfect safety protection, fault display, easy repair and maintenance even without professionals
High-efficiency evaporator and condenser which can save energy by more than 30%
Temperature control range:7-35℃, Temperature control accuracy:±2℃

AC-490WS water cooled screw chiller machine for Industrial Specifications:

ITEM		UNIT	AC-490WS
Refrigerating capacity		Kcal/h	421400
		KW	490
Input water		KW	114
Maximum Running Current		A	170
Energy adjust range		%	100-75-50-25-0
Power supply			3N-50HZ-380V
R22 Refrigerant	Filling Volume	kg	82
	Control mode		Thermostatic External pressure expansion valve
Compressor	Model		Semi-enclosed screw-type
	Power	Kw	114
Evaporator	Model		Shell and Tube
	Chilled water flow	M3/h	84.3
	Water resistance	Kpa	40
	Water inlet/outlet diameter	DN	125.0
Condenser	Model		Shell and Tube
	Chilled water flow	M3/h	110
	Water resistance	Kpa	45
	Water inlet/outlet diameter	DN	125.0
Protecting equipment			Over/low voltage switch, antifreeze switch, safety valve, overload protection devices, coil overheating protector, temperature automatically switch, reverse phase protector
Size(L×W×H)		mm	3606×1280×1600
Weight		kg	2490
Running Weight		Kg	2650
