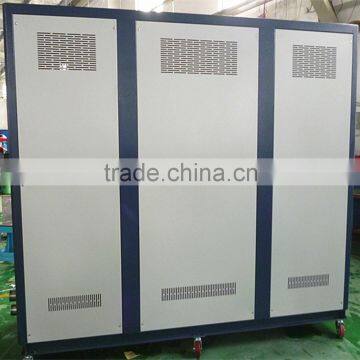

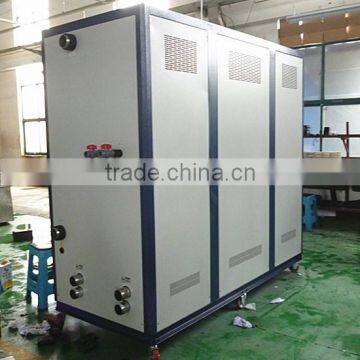

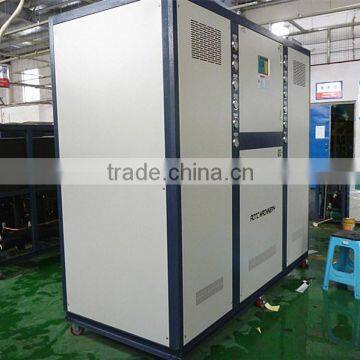

AC-60WE Carrier Water Cooled Chillers for Industry

Name: AC-60WE Carrier Water Cooled Chillers for Industry
Brand: AODE
SKU: 103424931
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Type:

Water-Cooled

Place of Origin:

Guangdong, China

Shenzhen Aode Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Water-Cooled

Place of Origin Guangdong, China

Brand Name AODE

Model Number AC-60WE

Cooling Capability(kw) 198.12KW

Voltage 380V

Dimension(L*W*H) 2400*1150*2200mm

Weight 1100kg

Certification CE

Warranty one year

After-sales Service Provided Engineers available to service machinery overseas

AC-60WE carrier water cooled chillers for Industry Quick Detail:

High/Low pressure protection for the compressor and overheating protection inside the machine
Low water level alarm and low water temperature alarm
Certification:CE & ROHS
Compressor type: Totally closed vortex type or piston type
Refrigerating capacity: 170383Kcal/h(50HZ)
Warranty:1 year

AC-60WE carrier water cooled chillers for Industry

Description:

High/low pressure protection for the compressor and overheating protection inside the machine
Low water level alarm and low water temperature alarm
Imported compressor from Europe, US and Japan
Refrigerating system welded with oxygen free method, to reduce oxides and ensure the smooth surface
Throttle components from Danfoss (Denmark) and Alco (US)
SUS304 stainless steel water tank, to avoid corrosion or water leak
Stainless plate, coil, shell and tube or fin type efficient heat exchanger
RS485 communication function, to realize automatic management(optional)
Electrical devices supplied from OMRON, FUJI, TE, LG, MOELLER and SCHNEIDER
Control mode: imported micro-computer or PLC(optional)
Perfect safety protection, failure display, and not requiring professional personnel for maintenance
Highly efficient evaporator and condenser, to save over 30% energy
2 compressor heads for over AC-08, for individual or joint operation

AC-60WE carrier water cooled chillers for Industry Specifications:

ITEM		UNIT	AC-60WE
Cooling capacity		KW50HZ	198.12
		Kcal/h 50HZ	170383
Total input		KW	59
Maximum Running Current		A	101.92
Power supply			3N-380V 50HZ
Refrigerant	Name		R22
	Charge	Kg	6.24×5
	Control Type		External Balanced Thermostatic Expansion Valve
Compressor	Type		Hermetic scroll or piston
	Power	Kw	9×5
Cooling water	Flow	M3/h	41.6
	P.D.	Kpa	45
	In/Out Pipe Size		G3”
Chilled water	Flow	M3/h	33.28
	Tank	M3	0.61
	In/Out Pipe Size		G3”
water Pump	Power	Kw	4
	Pressure	Kpa	250
Size(L×W×H)		mm	2400×1150×2200
Weight		Kg	1100
