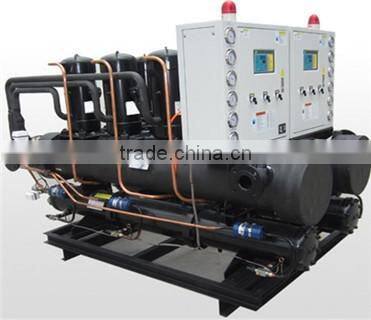

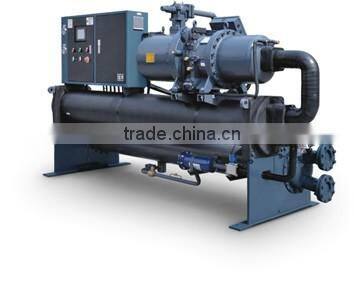

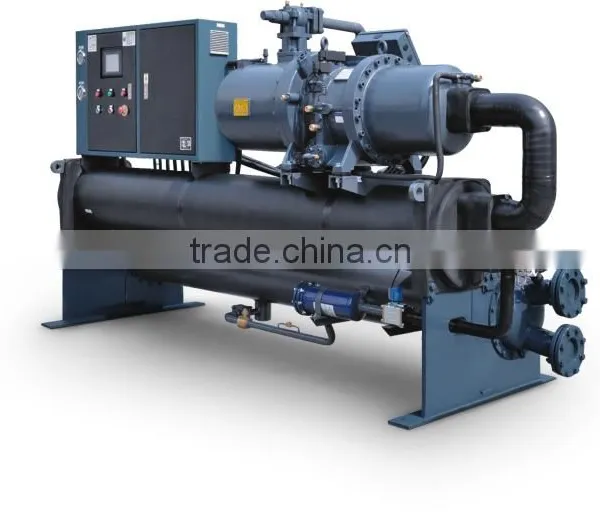

Refrigerating Capacity From 100000 Kcal to 1500000 Kcal Industrial Screw Water Cooled Chiller

Refrigerating Capacity From 100000 Kcal to 1500000 Kcal Industrial Screw Water Cooled Chiller thumbnail-1
Refrigerating Capacity From 100000 Kcal to 1500000 Kcal Industrial Screw Water Cooled Chiller thumbnail-2
Refrigerating Capacity From 100000 Kcal to 1500000 Kcal Industrial Screw Water Cooled Chiller thumbnail-3
Refrigerating Capacity From 100000 Kcal to 1500000 Kcal Industrial Screw Water Cooled Chiller thumbnail-4

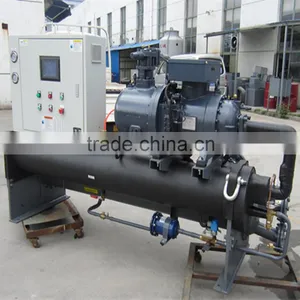

Refrigerating Capacity From 100000 Kcal to 1500000 Kcal Industrial Screw Water Cooled Chiller thumbnail-5
Refrigerating Capacity From 100000 Kcal to 1500000 Kcal Industrial Screw Water Cooled Chiller thumbnail-6
Refrigerating Capacity From 100000 Kcal to 1500000 Kcal Industrial Screw Water Cooled Chiller photo-1

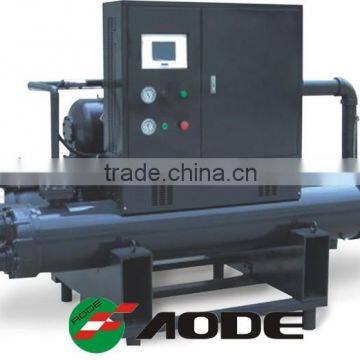

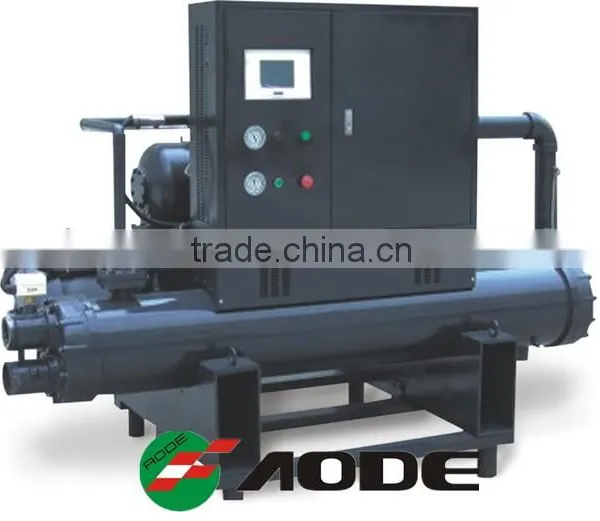

Refrigerating Capacity From 100000 Kcal to 1500000 Kcal Industrial Screw Water Cooled Chiller photo-2

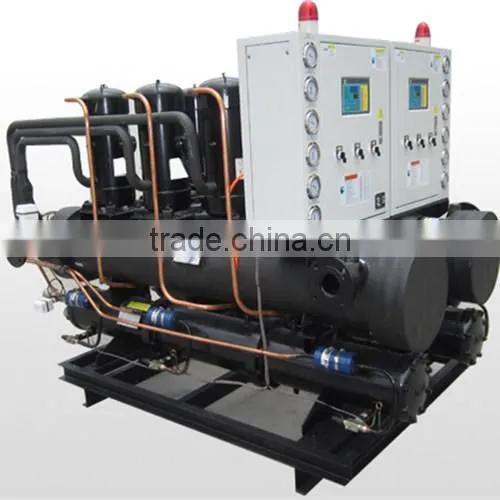

Refrigerating Capacity From 100000 Kcal to 1500000 Kcal Industrial Screw Water Cooled Chiller photo-3

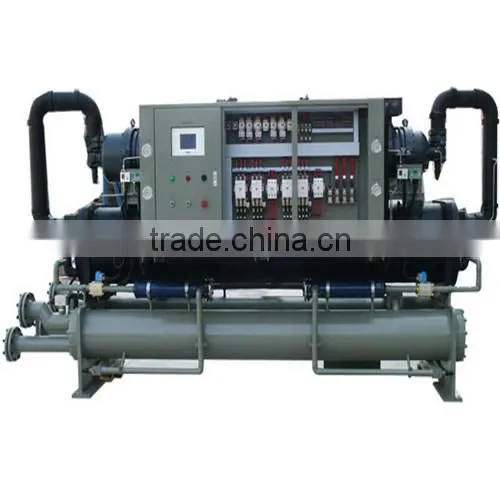

Refrigerating Capacity From 100000 Kcal to 1500000 Kcal Industrial Screw Water Cooled Chiller photo-4

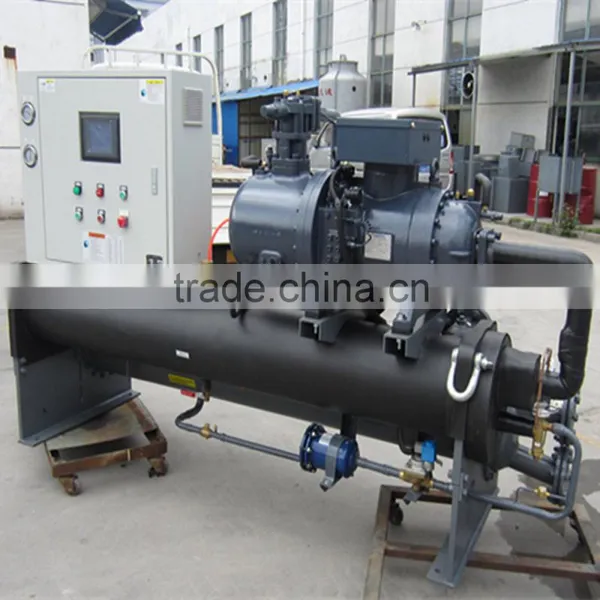

Refrigerating Capacity From 100000 Kcal to 1500000 Kcal Industrial Screw Water Cooled Chiller photo-5

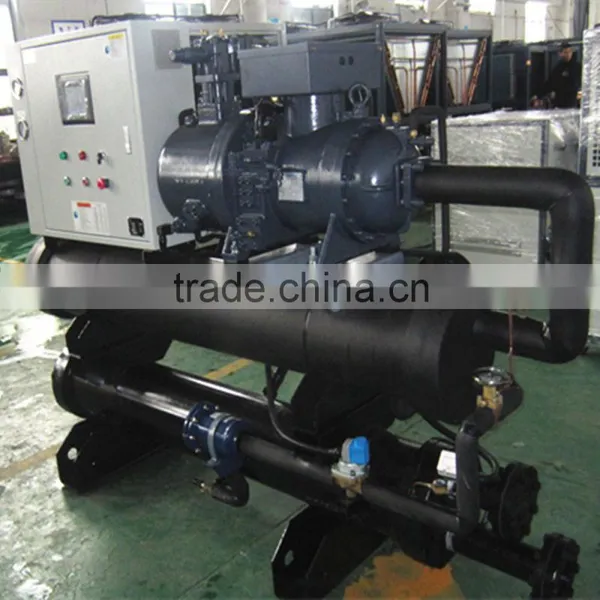

Refrigerating Capacity From 100000 Kcal to 1500000 Kcal Industrial Screw Water Cooled Chiller photo-6
US$ 800 - 20,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Water Temperature Machine
Application:
Industry
Contact Supplier Request Quote Chat Now
Shenzhen Aode Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shan Hai;Tian Jin;Shen Zhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Water Temperature Machine
Application Industry
Place of Origin Jiangsu, China
Brand Name AODE
Model Number AC-140WS/200WS/370WS/510WS/620WS
Temperature Range normal temperature to -80℃ degree
Temperature Control Accuracy PID 1
Dimension(L*W*H) 2000*1000*1500MM
Weight 840kg-6000kg
Internal Piping Size 1/2 INCH
Voltage 380V/50Hz/3Phase
Power(W) 30kw-343kw
Certification ISO9001 /CE
After-sales Service Provided Engineers available to service machinery overseas
Product Description

Product Features

◆ Compressor high and low voltage protection, internal overheating protection

◆ Low water flow alarm devices: Low water temperature anti-icing alarm
◆ Compressor imported from Europe, America and Japan(Hanbell Levin Beverly)
◆ Oxygen-free welding from refrigeration system, reduce the oxides and smooth the surface
◆ Denmark Danfoss and USA Eco throttle components
◆ Denmark Danfoss solenoid valve filter
◆ Stainless steel plate, coil type, shell and tube, finned high efficiency heat exchanger
◆ RS485 communication function for automated management(optional)
◆ Brands OMRON, FUJI, TE, LG, MOELLER, ABB and WEST for electric appliances
◆ Control mode: imported microcomputer or PLC(optional
◆ Perfect safety protection, fault display, easy repair and maintenance even without professional
◆ High-efficiency evaporator and condenser which can save energy by more than 30%
◆ Temperature control range:7-35℃, Temperature control accuracy:±2℃



Parameter/ Model
AC-140WS
AC-200WS
AC-370WS
AC-510WS
AC-620WS
AC-830WS
AC-280WD
 Refrigerating capacity
      kw     50HZ
120.3
171.9
339.2
469.2
577.7
788.9
268
      Kcal/h    50HZ
103458
147834
291712
403512
496822
678454
230480
Total input
              kw
30.7
42.2
79.6
108.5
130.6
177.3
63
Power supply
3N-380V 50HZ
R22 Refrigerant
Filling volume
kg
24
36
60
84
108
132
48
Control mode
Thermostatic external pressure expansion valve
Compressor
        Type
Semi-enclosed screw-type
Power
Kw
30.7
42.2
79.6
108.5
130.6
177.3
31.5
Model
Shell and Tube



Evaporator
Flow rate
m3/h
20.8
29.7
58.5
80.9
99.6
136
46.2
Pressure Drop
Kpa
33
39
45
45
44
44
45
input/output pipe size
65
80
100
125
125
150
80
Condenser
Flow rate
m3/h
30.2
42.9
83.8
115.5
141.7
193.2
66.2
Pressure Drop
m3
43
45
48
49
49
49
48
input/output pipe size
65
80
100
125
125
150
80
Pretecting equipement
Over/low voltage switch, antifreeze switch, safety valve, overload protection devices, coil overheating protector, temperature automatically switch, reverse phase protector

Size(L*W*H)

mm
2150*780*1350
2400*885*1440
2720*1010*1750
2770*1100*1950
3070*1100*2000
3500*1210*2200
2430*1370*1723
Weight
kg
840
1130
1800
2430
2720
3477
1500
Detailed Images

Excellent R&D team

Technical core concept：rigorous，meticulous，responsiblity，passion

Technical strategic direction:innovation,pursuit of quality,foucus on temperature control


After more than 10 years accumulation,we have a professional and responsible technical team,they laid the foundation of our company's progress

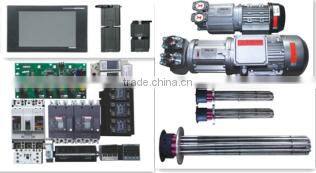

Main Accessories

All accessories we choose are from Europe and Germany brand.

Contactor,breaker,PLC from Germany Siemens

Pump from Germany Speck and Danmark Grandfos and so on.

Pipe component from Janpan KITZ,NIU DUN,ANIX

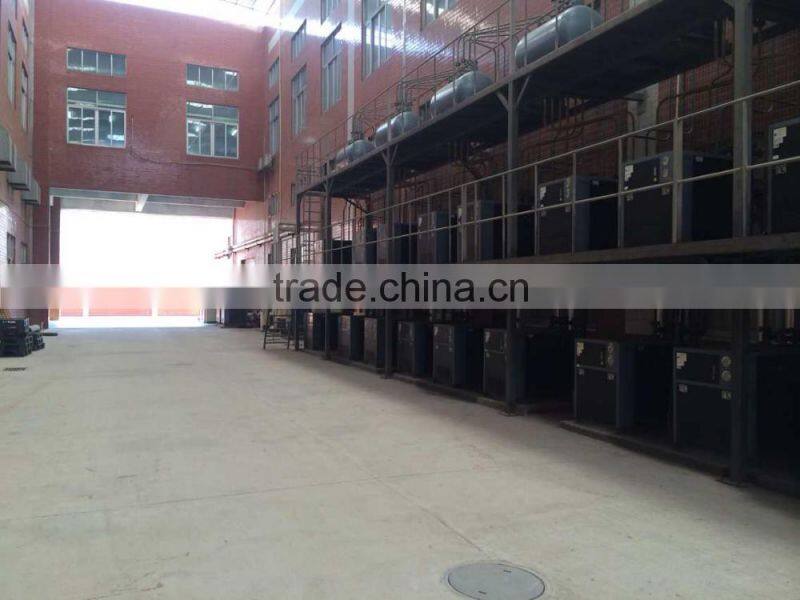

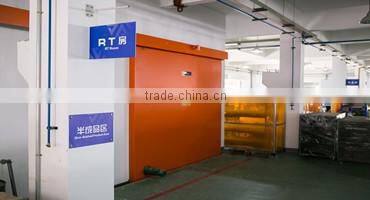

Good manufacturing system

Production core concept:  Quality,lead time,efficiency,consolidation,safe


Standard process control,assurance perfect quality:

 Fast and efficient supply chain,perfect production processes controlling,advanced production equipment,strict operating standards and professional workforce ensure our service quality

Strict quality control system

Quality Policy: Strict testing standard,strenthen source control,go deep in to the core of quality
Qulity System: Follow the ISO9001;2008 qulity management system
Rigorous work attitude,Creat the "perfect quality"
Rigorous design quality,strict process controlling,manufacture customer satisfaction products

Continous pursuing "zero defect" to create perfect quality

Certifications

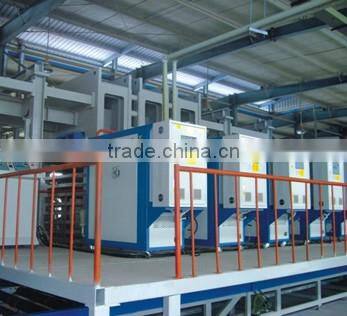

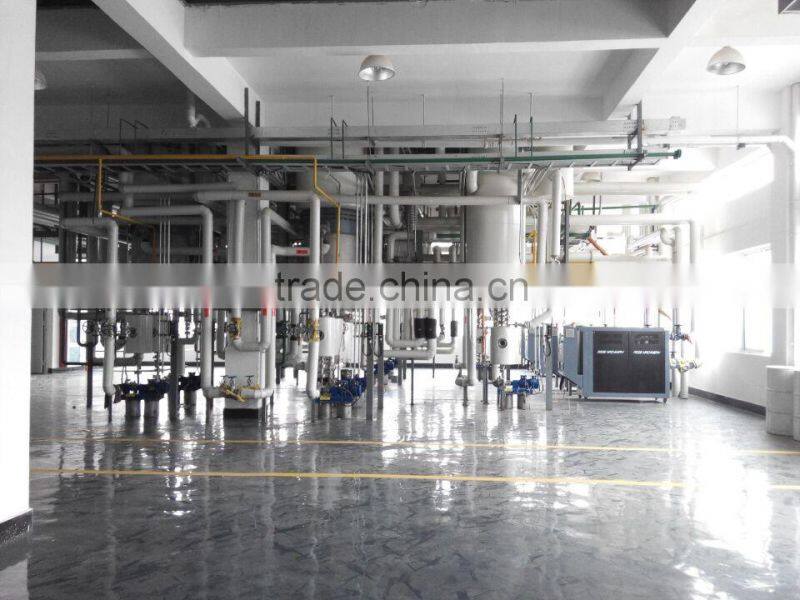

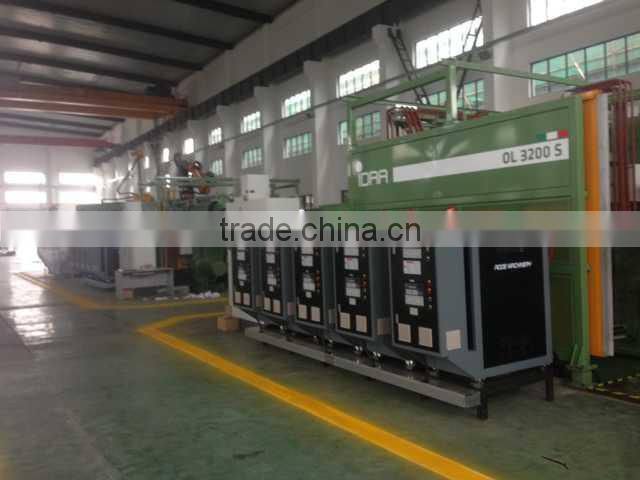

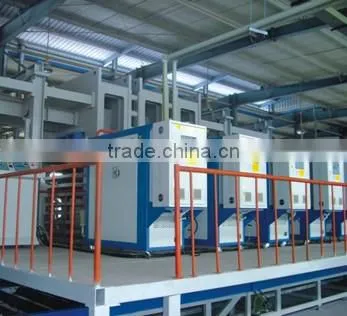

Successfull projects

The temperature control of reaction kettles

The temperature control in the compression casting of magnesium aluminum alloy

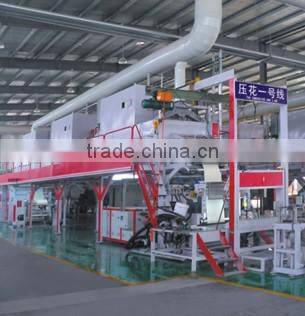

Cardboard embossing production line temperature control

Laminate temperature control

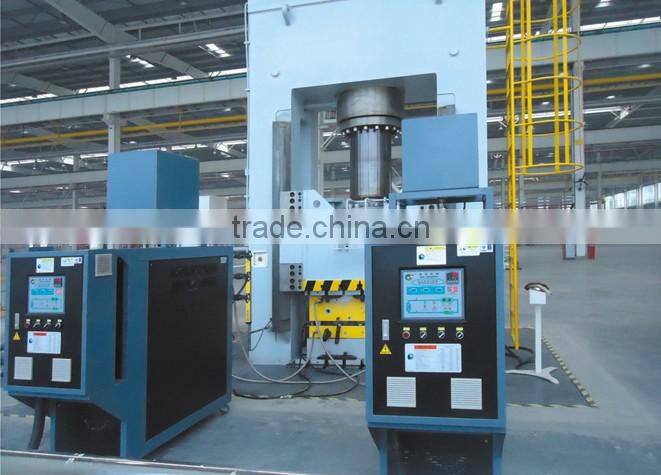

Temperature control for forging and pressing

Vacuum equipment control temperature

The temperature control for Biaxial stretching film production line

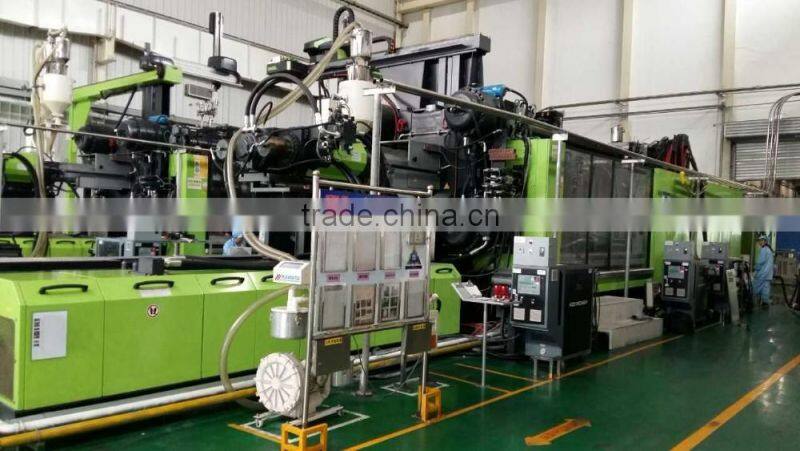

The temperature for plastic injection machine

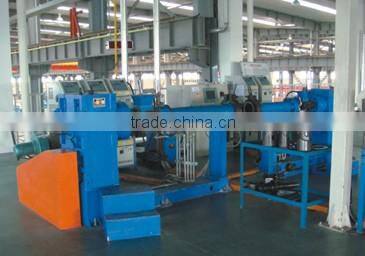

The temperature control of extrusion production lines

Exhibition
Our Company

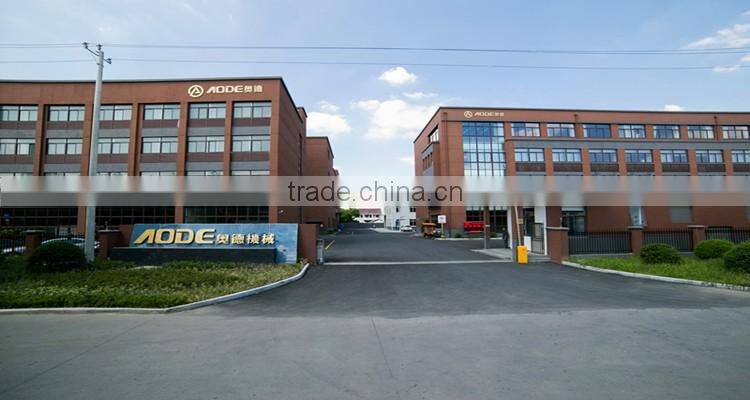

The Su Zhou headquater Factory

AODE Machinery Group set up its headquarter in Kunshan,Jiangsu provice in 2012,The headquater covers an area of 14000 square meters,it is  comprehensive industrial park integrates R&D,production,office and life.

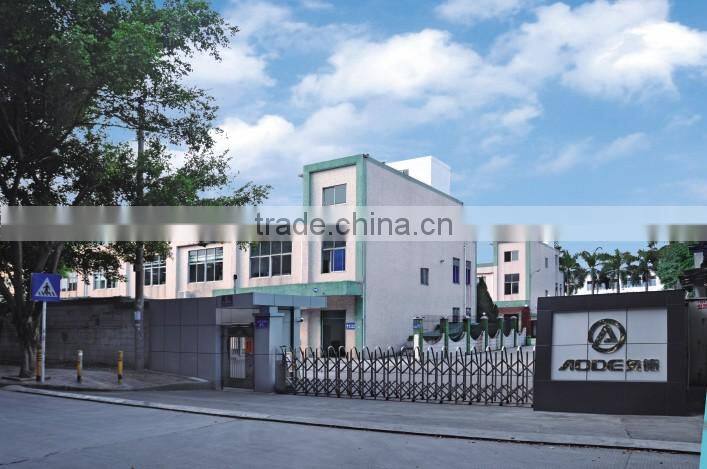

Shen Zhen Factory.

To meet the needs of customers better,Aode found the Shen zhen factory in 2004

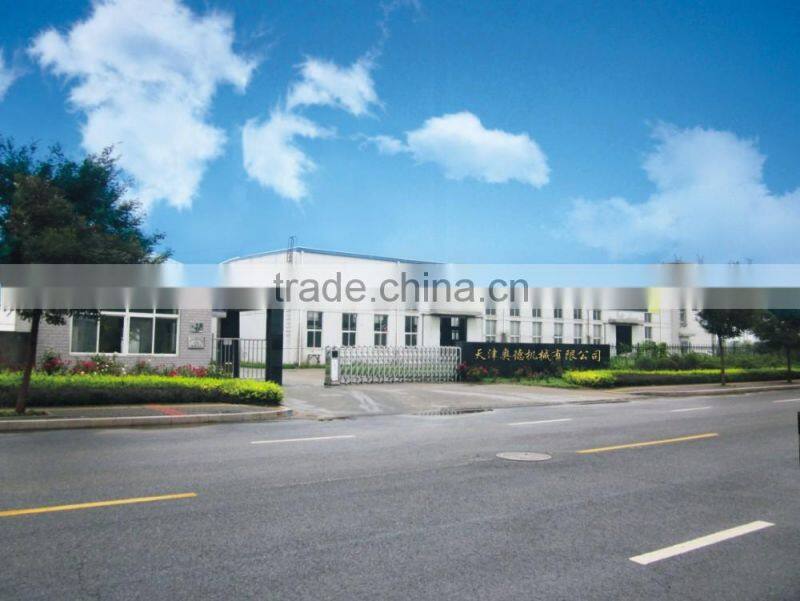

Tian Jin Factory.

To meet the northen market of China ,Aode founded  the Tian Jin factory in 2007

Our Service

Aode Machinery provides customers with professional and high-speed before sales,sales,after sales service.service detail are as follows:

1)Provides customers with a full range of technical support and technical trainning.anytime,anywhere

2)The whole equipment free one-year warranty,and lifetime mainenance

3)Provides customers with the thoughtful usage of maintenance tips and perfect after-sales service management system.

4)Receive after-sales requirement,technicians will handle the equipment failure immediately.
