3 Chips 5050 Led Smd Module,DC12V, for Sign,light Box

3 Chips 5050 Led Smd Module,DC12V, for Sign,light Box thumbnail-1
3 Chips 5050 Led Smd Module,DC12V, for Sign,light Box photo-1
US$ 0.3 - 0.5 MOQ: 200 Pieces
Key Specifications
Get Latest Price
Model Number:
LG20-SMDX5050WP3LH
Chip Material:
AlGaInP
Emitting Color:
Cool White
Contact Supplier Request Quote Chat Now
Shenzhen Ledladygaga Lighting Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Model Number LG20-SMDX5050WP3LH
Chip Material AlGaInP
Emitting Color Cool White
Luminous Intensity 1,000-13000mcd
Luminous Flux(lm) 72/pcs
Optical Attenuation(%) 3
Power Other, 0.72W
Power Dissipation ≤0.24W
Color Rendering Index(Ra) 85
Color Temperature 2500-12000k
Operating Temperature(℃) -20, 60
Storage Temperature(℃) -30, 50
Place of Origin Guangdong, China
Brand Name Ledladygaga
Certification CE

Specifications

3 chips 5050 led smd module
1.Waterproof:IP 68
2.Warrany:2 years with CE& RoHS
3.High brightness
4.Fast delivery:3~5 days

3 chips 5050 led smd module

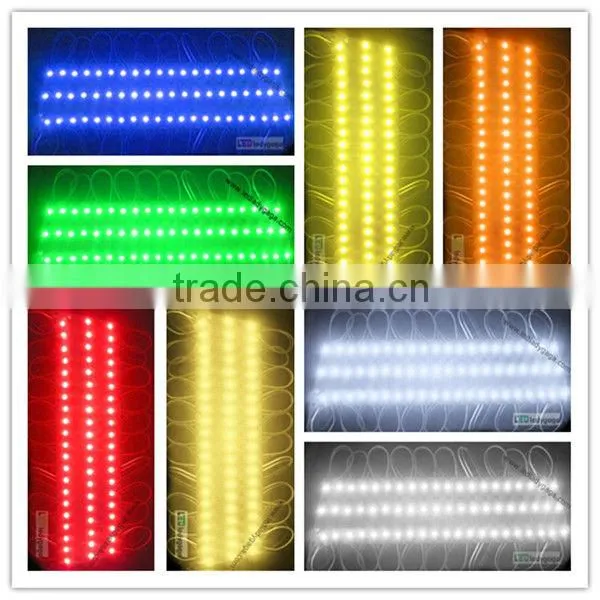

DC12V,Waterproof IP20,IP65,IP68 ,SMD5050 3 chips Led module,with color White/Cool White/Red/Green/Blue/Yellow



Specifications:

Model NO. : LG20-SMDX5050WP3LH

Product Details:
Product Name 3 chips 5050 led smd module
Light Source LED
Item Type LED Module
LED Chip SMD5050
LED Quantity 3LEDs
Input Voltage(V) DC12V
Lamp Power 0.72W/pcs(0.24/LED)

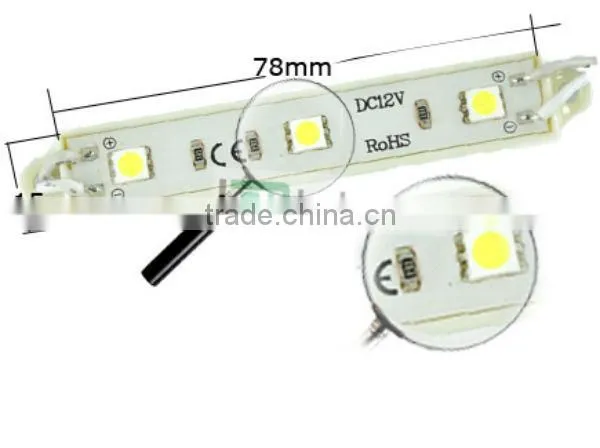

Dimension(MM) 78*15*7.5mm
LED Color White/Warm White
Cool White/Red/Green
Blue/Yellow
Beam Angle 120°
Luminous Flux(lm):
White/Cool White 72lm/pcs
Red 21lm/pcs
Green 48lm/pcs
Blue 18lm/pcs
Yellow 15lm/pcs
Wavelength(nm)/ Color Temperature(K):
White 6000-6500K
Warm White 3000-3500K
Cool White 8000-12000K
Red 619-635nm
Green 512-528lm
Blue 463-475nm
Yellow 584-595nm
CRI(Ra>) 85
Color Temperature(CCT) 2500-12000K
Working Temperature -40-60°C
Working Lifetime 30,000-50,000 hours
Certification CE,RoHS,FCC
Brand Name LEDLadygaga
Storage Temperature .-20°C to +50°C
Warranty 2 years
IP Rating IP20/IP65/IP68
LED Chip Epistar
Payment &Shipping Terms
Minimum Order Quantity 200pcs
Port Shenzhen
Packaging Details: 1.Standard Packing:
20pcs/group,200pcs/anti-static bag
2.Carton Size:
12bags in a inner box
(40*35*30 cm)
Weight 5KG/200pcs, 18KG/Carton
Delivery Time: 5-7 working days after
reciept of the payment.
Payment Terms: T/T,Paypal,Western Union,
MoneyGram
Supply Ability: 1,000,000 pcs/ Month





Applications:

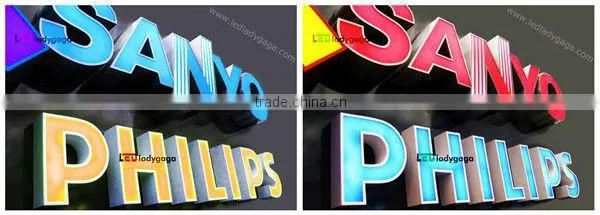

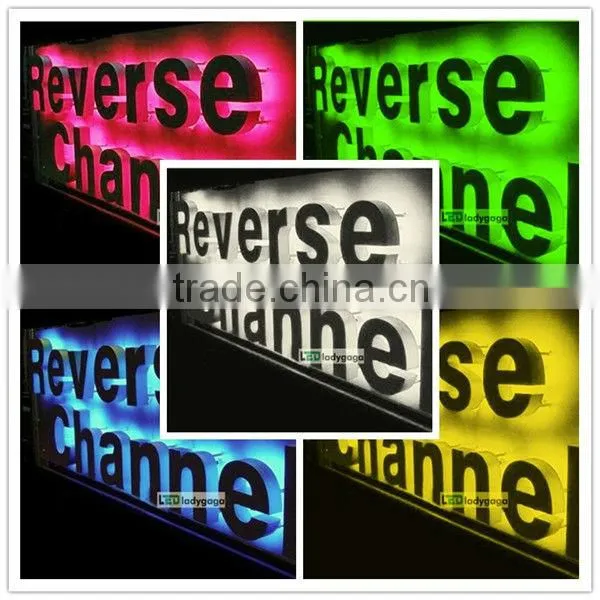

1.LED backlighting channel letter signs;
2.LED lighting BOX;
3.LED light signages;
4.Decorating the building , office , Club bar , KTV ETC.;





Details:

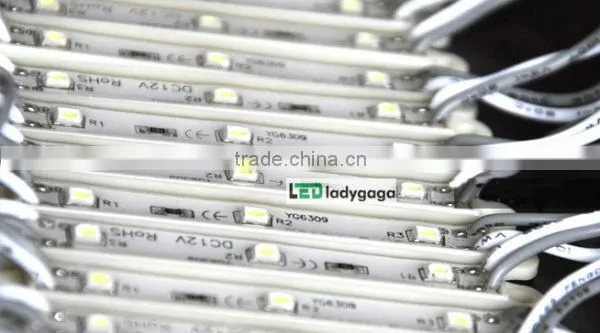

3 chips 5050 led smd module,DC12V, for sign,light box

3 chips 5050 led smd module,DC12V, for sign,light box





3 chips 5050 led smd module,DC12V, for sign,light box





3 chips 5050 led smd module,DC12V, for sign,light box





3 chips 5050 led smd module,DC12V, for sign,light box3 chips 5050 led smd module,DC12V, for sign,light box3 chips 5050 led smd module,DC12V, for sign,light box





3 chips 5050 led smd module,DC12V, for sign,light box



3 chips 5050 led smd module,DC12V, for sign,light box





3 chips 5050 led smd module,DC12V, for sign,light box
