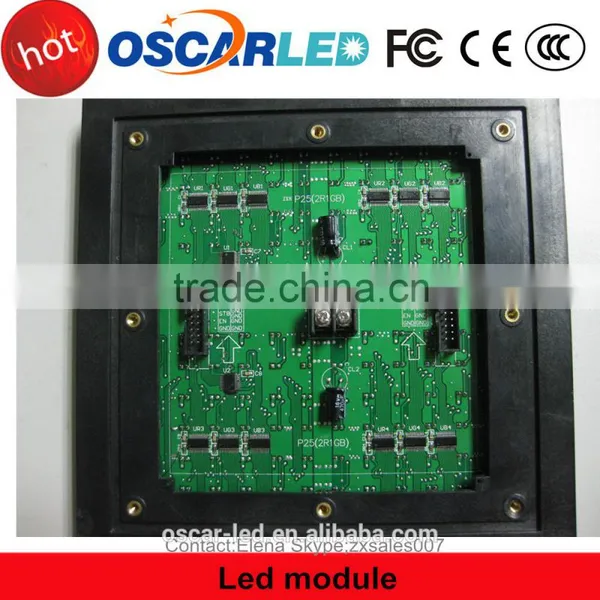

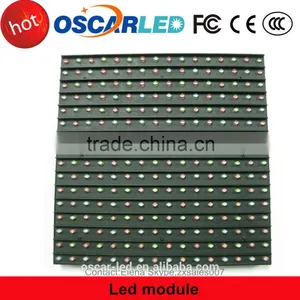

P25 DIP full color led screen module
| Pixel configuration | DIP546 2R1G1B |
| LEDs configuration | Red: wave length: 625~630nm;1100-1300mcd Green: wave length: 525~530nm;1900-2400mcd Blue: wave length: 470~475nm;500-700mcd |
| Pixel pitch(mm) | 20 |
| Pixel density | 1600 |
| Calibrated brightness | 3500 nits(adjustable) |
| View angle | Horizontal: 120° (60° off center); Vertical: 70° (+25°/-45° off center) |
| Refresh rate | >800 Hz |
| Frame frequency | >60 Hz |
| Input signal | VGA, Video, AVI, MOV, MPG, DAT, VOB etc. |
| Protection grade | IP65 front side/IP54 backside |
| LED Drive | Constant-current drive |
| Lifetime | 100,000 hours |
| Servicing | Front and back serving optional |
| Control mode | Synchronous & asynchronous available |
| Communication options | Wire Ethernet, Fiber Ethernet,RF wireless,GPRS |
| Power | 120/240 V AC single phase(50-60Hz) |
| Maximum power consumption(W/SQM) | 850 |
| Average power consumption(W/SQM) | 400 |
| Screen operation mode(scan/static) | 1/4 |
| Module configuration(Pixels quantities of the module) | Length: 8 Height: 8 |
| Module dimensions(mm) |
Length: 200 Height: 200 |
Factory introduction: Automatic DIP Assembly Machine, Wave-peak soldering Machine, Hot Air Reflow Soldering Machine, Glue Aging Room, Module and Complete Displays Aging Workshop, Waterproof Test Room, Light Intensity Tester and so on.
Our LED displays have been mainly sold to USA, Canada, Europe, and other countries, and have won good reputation from domestic and overseas customers. We always implement our philosophy: Good quality and after-sales service with competitive price.
Our products include: outdoor and indoor full color LED display, all kinds of moving message display, stage curtain LED display, outdoor SMD, rental LED screen, traffic LED sign and so on. The products are widely used for outdoor advertising and for message display at bank, hospital, school, expressway, etc.
Except good quality, we provide 2 years quality warranty and full technical support to every customer, including suggestion of CAD graphic of the steel structure for installation, remote assist to help user test the display.
Payment terms:
T/T, L/C, western union, moneygram, ect.
30% T/T in deposit, balance 70% T/T before shipment.
Lead time: Below 50sqm, it will take about 2-3 weeks after receiving deposit.
Notes:
1. The unit price depends on the quantity, we can offer you at a competitive price.
2. Your inquiry related to our products or prices will be replied in 24hrs. My Skype: zxsales007
3. Well-trained and experienced staffs to answer all your enquires in fluent English.
4. Distributorship are offered for your unique design and some our current models.
5. Protection of your sales area, ideas of design and all your private information.
Conclusion
Welcome you inquiry to me at any time ,I 'm confident we will have a happy cooperation, you can also add my skype zxslaes007 or whatsapp13714503640, have a good time,this is Elena.
