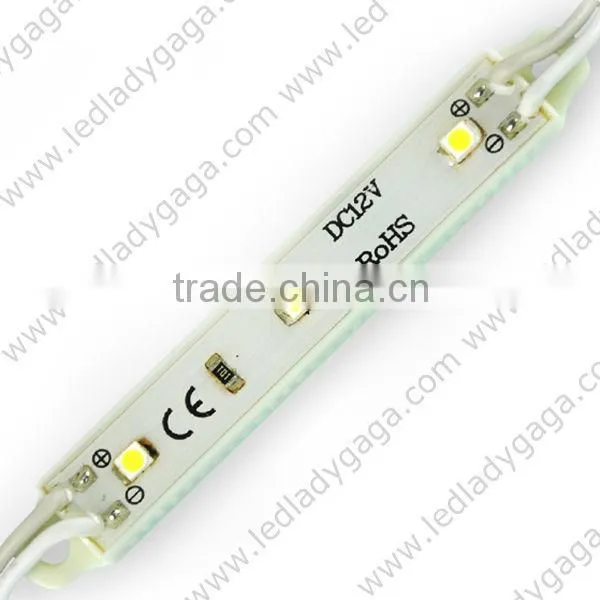

12V CE and RoHS Approved led module 3528
USD $0.2 - $0.3
/ Piece
200 Pieces(Min.Order)
- 1000000 Piece / Pieces per Month
- Shenzhen
- Credit Card PayPal
You May Like
Product Details
Model Number: | LG20-SMDX3528WP3LH | Chip Material: | AlGaInP | Emitting Color: | Cool White |
Luminous Intensity: | 1,000-1,300mcd | Luminous Flux(lm): | 24lm/pcs | Optical Attenuation(%): | 3 |
Power: | Other, 0.24W | Power Dissipation: | ≤0.24W | Color Rendering Index(Ra): | 85 |
Color Temperature: | 2500-12000K | Operating Temperature(℃): | -20, 60 | Storage Temperature(℃): | -30, 50 |
Place of Origin: | Guangdong, China | Brand Name: | Ledladygaga | Certification: | CE |
Product Description
Specifications
led module 35281.Waterproof:IP68/IP65
2.Warrany:2 years with CE&RoHS
3.High brightness
4.Fast delivery:3-5 days
led module 3528
3 chips 3528 led smd module ,DC12V,Waterproof IP20,IP65,IP68 ,SMD3528 3 chips Led module,with color White/Cool White/Red/Green/Blue/Yellow
Specifications:
Model NO. : LG20-SMDX3528WP3LH
Product Details: | |
Product Name | led module 3528 |
Light Source | LED |
Item Type | LED Module |
LED Chip | SMD3528 |
LED Quantity | 3LEDs |
Input Voltage(V) | DC12V |
Lamp Power | 0.24W/pcs(0.08W/LED) |
Dimension(MM) | 66*12*6.5mm |
LED Color | White/Warm White Cool White/Red/Green Blue/Yellow |
Beam Angle | 120° |
Luminous Flux(lm): | |
White/Cool White | 24lm/pcs |
Red | 7.5lm/pcs |
Green | 16.5lm/pcs |
Blue | 6lm/pcs |
Yellow | 5.4lm/pcs |
Wavelength(nm)/ | Color Temperature(K): |
White | 6000-7000K |
Warm White | 3000-3500K |
Cool White | 8000-12000K |
Red | 621-624nm |
Green | 466-469lm |
Blue | 515-525nm |
Yellow | 590-592nm |
CRI(Ra>) | 85 |
Color Temperature(CCT) | 2500-12000K |
Working Temperature | -40-60°C |
Working Lifetime | 30,000-50,000 hours |
Certification | CE,RoHS,FCC |
Brand Name | LEDLadygaga |
Storage Temperature | -20°C to +50°C |
Warranty | 2 years |
IP Rating | IP20/IP65/IP68 |
LED Chip | Epistar |
Payment | &Shipping Terms |
Minimum Order Quantity | 200pcs |
Port | Shenzhen |
Packaging Details: | 1.Standard Packing: 20pcs/group,200pcs/anti-static bag 2.Carton Size: 12bags in a inner box (40*35*30 cm) |
Weight | 5KG/200pcs, 18KG/Carton |
Delivery Time: | 5-7 working days after reciept of the payment. |
Payment Terms: | T/T,Paypal,Western Union, MoneyGram |
Supply Ability: | 1,000,000 pcs/ Month |
Applications:
1.LED backlighting channel letter signs;
2.LED lighting BOX;
3.LED light signages;
4.Decorating the building , office , Club bar , KTV ETC.;
Details:
