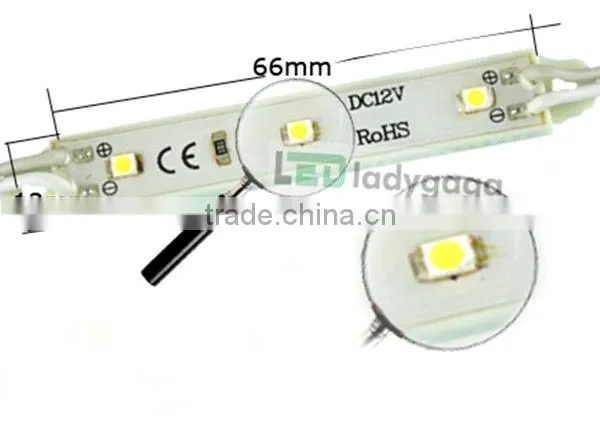

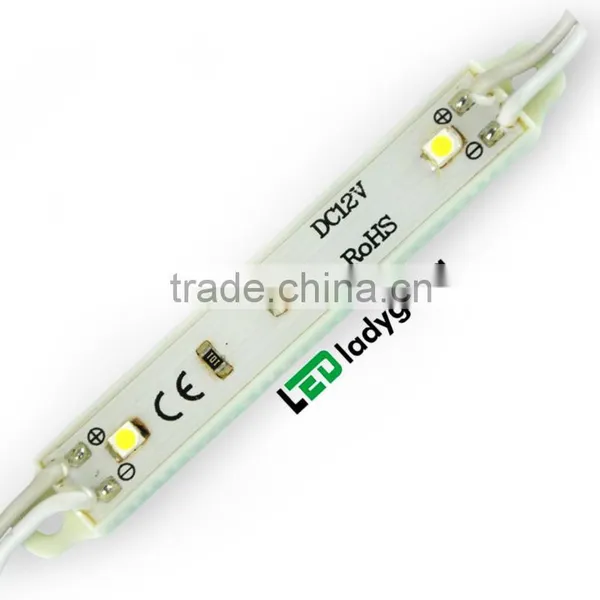

Cheapest 12V Taiwan LED Chip 3528 Led Module

Name: Cheapest 12V Taiwan LED Chip 3528 Led Module
Brand: Ledladygaga
SKU: 103415503

US$ 0.2 - 0.3 MOQ: 200 Pieces

Key Specifications

Model Number:

LG20-SMDX3528WP3LH

Chip Material:

AlGaInP

Emitting Color:

Cool White

Shenzhen Ledladygaga Lighting Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Model Number LG20-SMDX3528WP3LH

Chip Material AlGaInP

Emitting Color Cool White

Luminous Intensity 1,000-1,300mcd

Luminous Flux(lm) 24lm/pcs

Optical Attenuation(%) 3

Power Other, 0.24W

Power Dissipation ≤0.24W

Color Rendering Index(Ra) 85

Color Temperature 2500-12000K

Operating Temperature(℃) -20, 60

Storage Temperature(℃) -30, 50

Place of Origin Guangdong, China

Brand Name Ledladygaga

Certification CE

Specifications

3528 led module
1.Waterproof:IP68/IP65
2.Warrany:2 years with CE&RoHS
3.High brightness
4.Fast delivery:3-5 days

3528 led module

3 chips 3528 led smd module ,DC12V,Waterproof IP20,IP65,IP68 ,SMD3528 3 chips Led module,with color White/Cool White/Red/Green/Blue/Yellow

Product Details:
Product Name	3528 led module
Light Source	LED
Item Type	LED Module
LED Chip	SMD3528
LED Quantity	3LEDs
Input Voltage(V)	DC12V
Lamp Power	0.24W/pcs(0.08W/LED)
Dimension(MM)	66126.5mm
LED Color	White/Warm White Cool White/Red/Green Blue/Yellow
Beam Angle	120°
Luminous Flux(lm):
White/Cool White	24lm/pcs
Red	7.5lm/pcs
Green	16.5lm/pcs
Blue	6lm/pcs
Yellow	5.4lm/pcs
Wavelength(nm)/	Color Temperature(K):
White	6000-7000K
Warm White	3000-3500K
Cool White	8000-12000K
Red	621-624nm
Green	466-469lm
Blue	515-525nm
Yellow	590-592nm
CRI(Ra>)	85
Color Temperature(CCT)	2500-12000K
Working Temperature	-40-60°C
Working Lifetime	30,000-50,000 hours
Certification	CE,RoHS,FCC
Brand Name	LEDLadygaga
Storage Temperature	-20°C to +50°C
Warranty	2 years
IP Rating	IP20/IP65/IP68
LED Chip	Epistar
Payment	&Shipping Terms
Minimum Order Quantity	200pcs
Port	Shenzhen
Packaging Details:	1.Standard Packing: 20pcs/group,200pcs/anti-static bag 2.Carton Size: 12bags in a inner box (403530 cm)
Weight	5KG/200pcs, 18KG/Carton
Delivery Time:	5-7 working days after reciept of the payment.
Payment Terms:	T/T,Paypal,Western Union, MoneyGram
Supply Ability:	1,000,000 pcs/ Month
