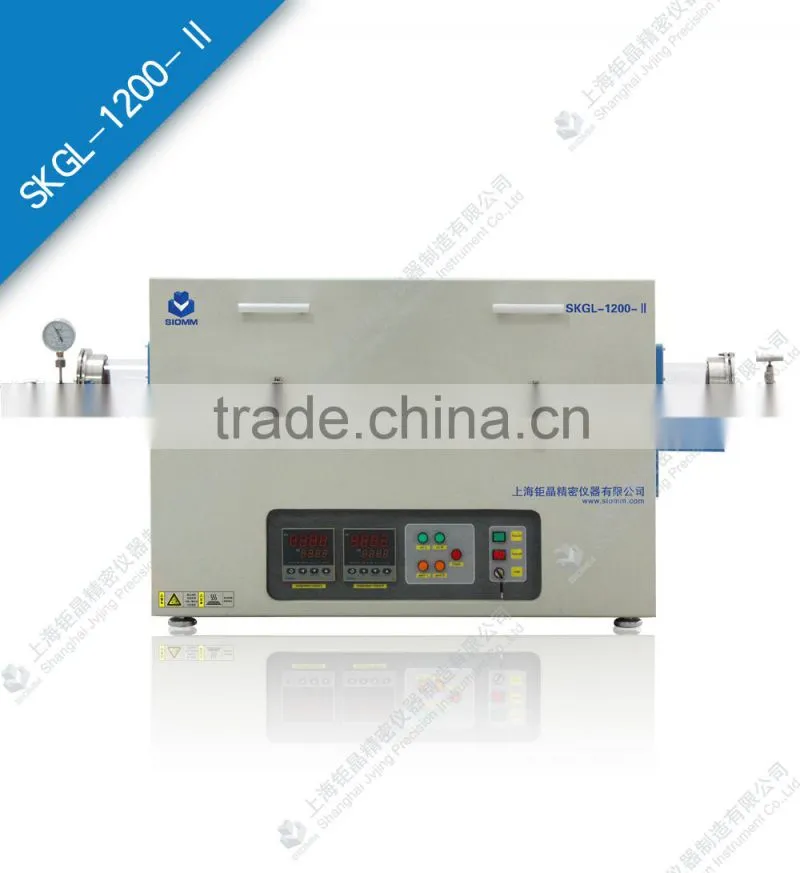

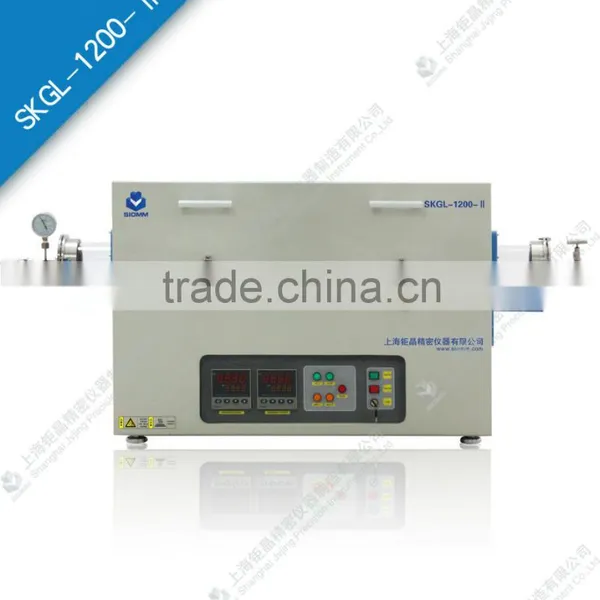

Open Type Single and Dual Heating Zones Vacuum Atmosphere Furnace(SKGL-1200/SKGL-1200II)

Name: Open Type Single and Dual Heating Zones Vacuum Atmosphere Furnace(SKGL-1200/SKGL-1200II)
Brand: SIOMM
SKU: 103403553
Availability: InStock

Open Type Single and Dual Heating Zones Vacuum Atmosphere Furnace(SKGL-1200/SKGL-1200II) thumbnail-1

Open Type Single and Dual Heating Zones Vacuum Atmosphere Furnace(SKGL-1200/SKGL-1200II) photo-1

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Brand Name:

SIOMM

Model Number:

SKGL-1200-II

Place of Origin:

Shanghai, China

Contact Supplier Request Quote Chat Now

Shanghai Jinwei Instrument Manufacturing Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai port

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Brand Name SIOMM

Model Number SKGL-1200-II

Place of Origin Shanghai, China

Specifications

1. Reserved vacuum, gas road fast interface
2. Single/dual heating zone tube furnace
3. KF flange, fast install

Product Intruction

SKGL-1200/1200-Ⅱ open type tube with resistance wire as heating elements, adopted double shell structure and intelligent program temperature control system, phase trigger, SCR control. Furnace chamber adopted imported polycrystalline alumina fiber material, the double furnace shell with air cooling system, fast heating and cooling, and can open the lid for rapid cooling. Reasonable structure, beautiful appearance.

Main Function and Features

1. Adopted KF quick flange sealing, only need a clamp flange the connection can be done. It is very convenient to put and take the specimen. Avoiding bolt leakage by artificial operation and reduced the ratio of heating tube damaging which caused by installation flanges;

2. Furnace lid can be opened, real-time observation of the heated material, and can rapidly cool to meet the material suddenly cold and hot experiments;

3. Adopt imported polycrystalline fiber vacuum absorption furnace chamber; the resistance wire is used high quality resistance alloy silk 0Cr27Al7Mo2, servicing time more longer. Max temperature can reach 1200℃;

4. Reserved vacuum, gas road fast interface, could working with our vacuum system or mixed gas system;

5. Reserved 485 convert interface, can be connected with PC through software. It has remote control, real time tracking, history recorder, and output report function. And can be installed the paperless recorder for data storage and output;

6. Built - in thermocouple, real-time monitoring the temperature of the heated material;

7. Cover open automatically power off, over-temperature alarm, leakage protection, safe and reliable operation.

Main Application

Used for universities, research institutions, industrial and mining enterprises to do high temperature sintering

atmosphere, atmosphere restoring, CVD experimental and vacuum annealing.

Technical Specification

Model	SKGL-1200	SKGL-1200-Ⅱ
	Approved by CE certificate, ensure the safety operation of the machine. Certificate No.: GB/1067/4189/12 Issue 1
Temperature zone settings	Single heating zone	Two heating zone
Heating zone length	440mm (Customizable)	220mm/220mm (Customizable)
Constant temperature zone length	200mm	100mm/100mm
Rated power	4KW	4.5KW
Overall size	690410600mm	700480600mm
Weight	80KG	120KG
Furnace chamber	Imported high pure polycrystalline alumina fiber, excellent heat preservation
Furnace tube size	Φ40/60/80/100*1000mm
Heating elements	0Cr27Al7Mo2
Thermometric component	N-mode thermocouple
Temperature control mode	The temperature control system uses artificial intelligence technology, with PID control, self - tuning function, 30 the heating and cooling program
Seal mode	Stainless steel the KF quick flange extrusion seal
Standard vacuum degree	≤50Pa (If need more high vacuum degree, can purchase different vacuum system)
Working temperature	≤1150℃
Max temperature	1200℃
Constant temperature accuracy	±1℃
Max. Temperature rising rate	30℃/min
Recommend temperature rising rate	10℃/min
Working power	AC220V 50HZ/60HZ
Standard accessories	Sealed flanges 1 pcs, O-rings 4 pcs, quartz tube 1 pcs, vacuum pump 1 set, pipe plug 4 pcs, oven gloves, crucible tongs each 1 pcs
Optional purchase accessories	Furnace hobs; Mixed gas system; Low, medium and high vacuum system; All kinds of alumina crucibles; Alumina tube or quartz tube; Computer control software; Paperless recorder, etc.
