Specifications
1.CE,1 year warranty2.Big factory direct supply
3.Operation at any angle
4.Latest technique
5.1 year warranty,CE approved

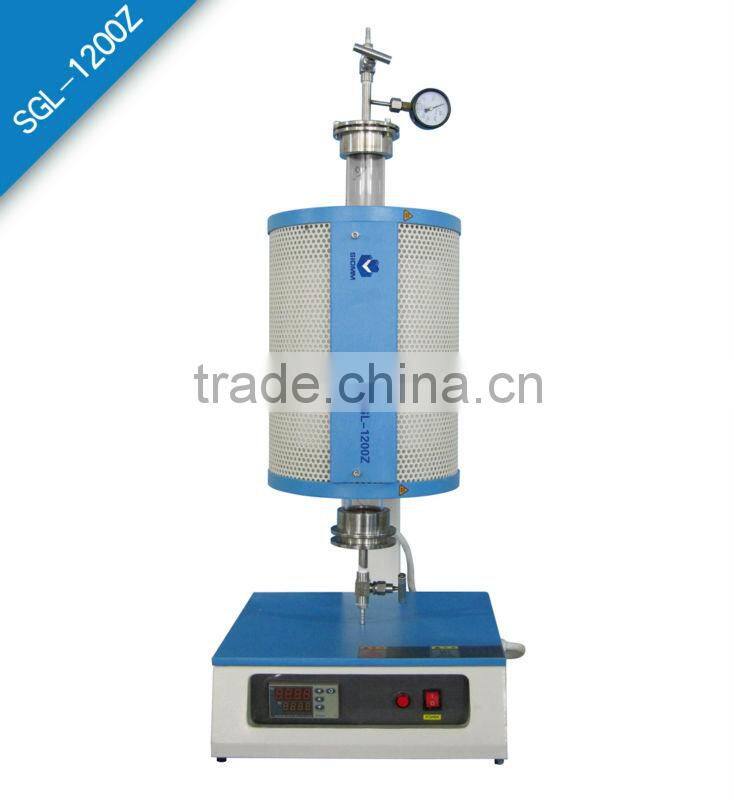

Mut-position vacuum tube furnace SGL-1200Z
Products Introduce:
SGL- 1200L vertical type vacuum tube furnace with imported resistance wire as heating elements, adopted
intelligent program temperature control system, furnace chamber used Polycrystalline alumina fiber, thermal
insulation and energy saving. With a vacuum device, can be working vertical in atmosphere or vacuum.
Main function and features:
1. Adopted KF quick flange sealing, only need a clamp flange the connection can be done. It is very convenient to put and take the specimen. Avoiding bolt leakage by artificial operation and reduced the ratio of heating tube damaging which caused by installation flanges;
2. Furnace tube vertically, the furnace cover open or not open for selectable;
3. Adopt imported polycrystalline fiber vacuum absorption furnace chamber; the resistance wire is used high quality resistance alloy silk 0Cr27Al7Mo2, servicing time more longer. Max temperature can reach 1200°C;
4. Reserved vacuum, gas road fast interface, could working with our vacuum system or mixed gas system.
Reserved 485 convert interface, can be connected with PC through software. It has remote control, real time tracking, history recorder, and output report function. And can be installed the paperless recorder for data storage and output;
5. Built - in thermocouple, real-time monitoring the temperature of the heated material;
6. Over-temperature alarm and power failure, leakage protection, safe and reliable operation.
Main applications:
Used for universities, research institutions, industrial and mining enterprises to do high temperature sintering
atmosphere, atmosphere restoring, CVD/CVI experimental and vacuum annealing.

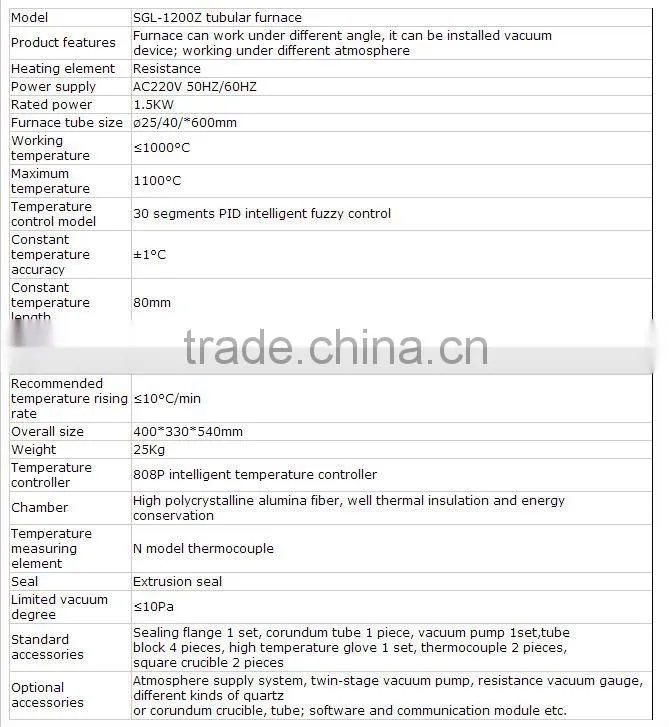

Specifications:

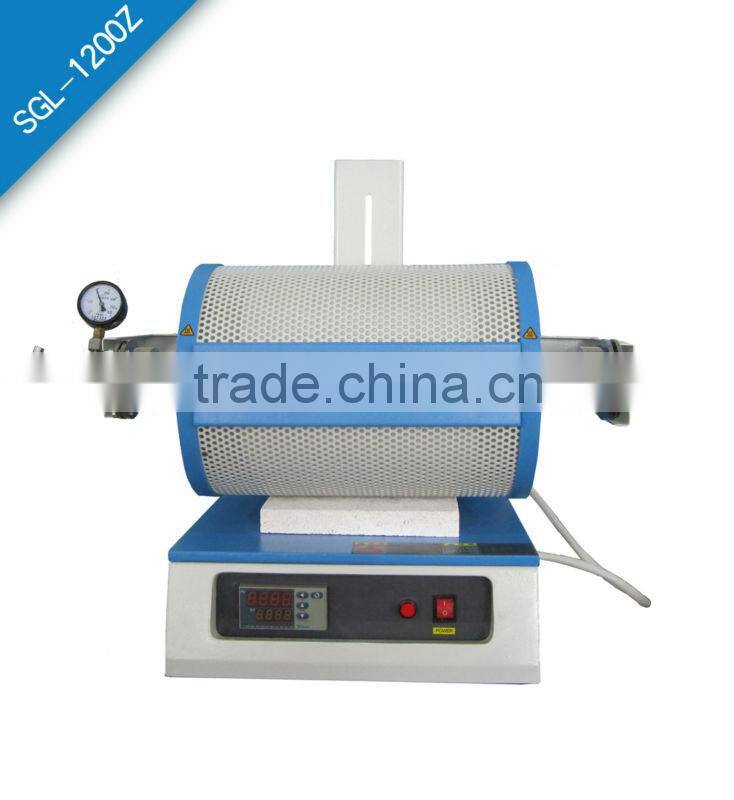

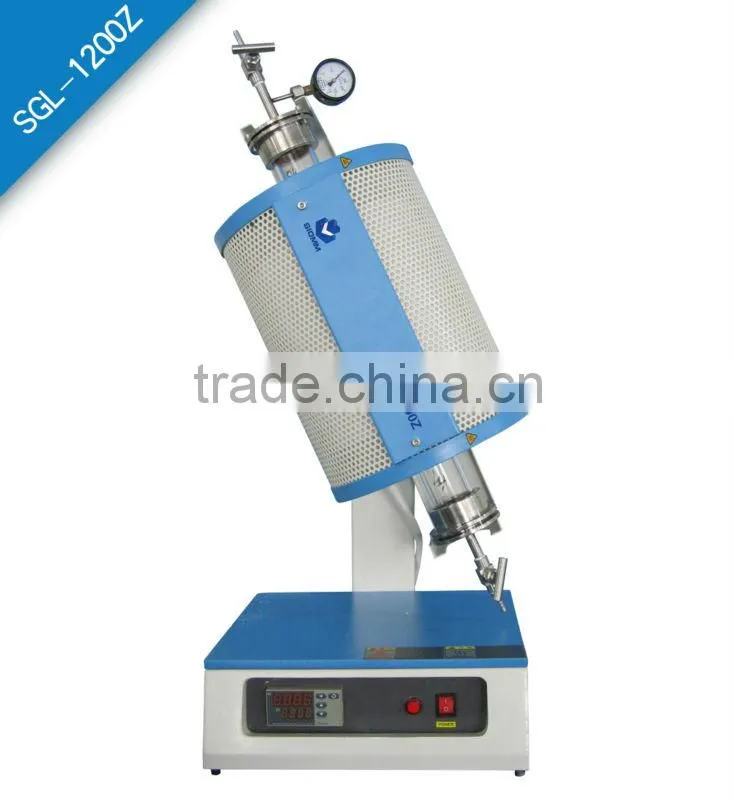

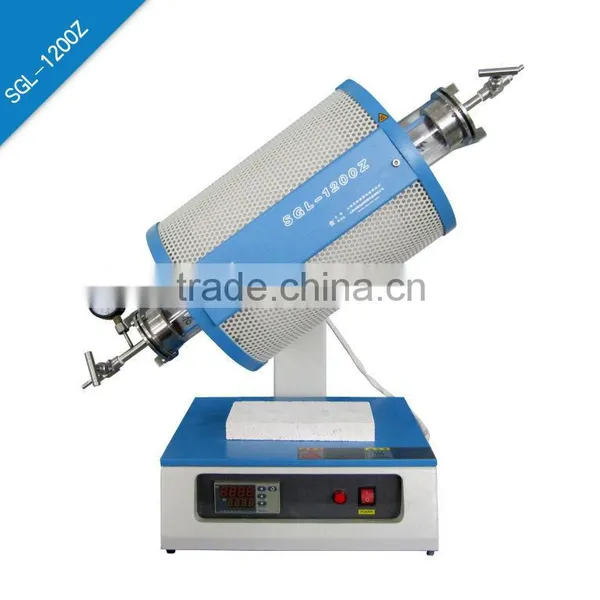

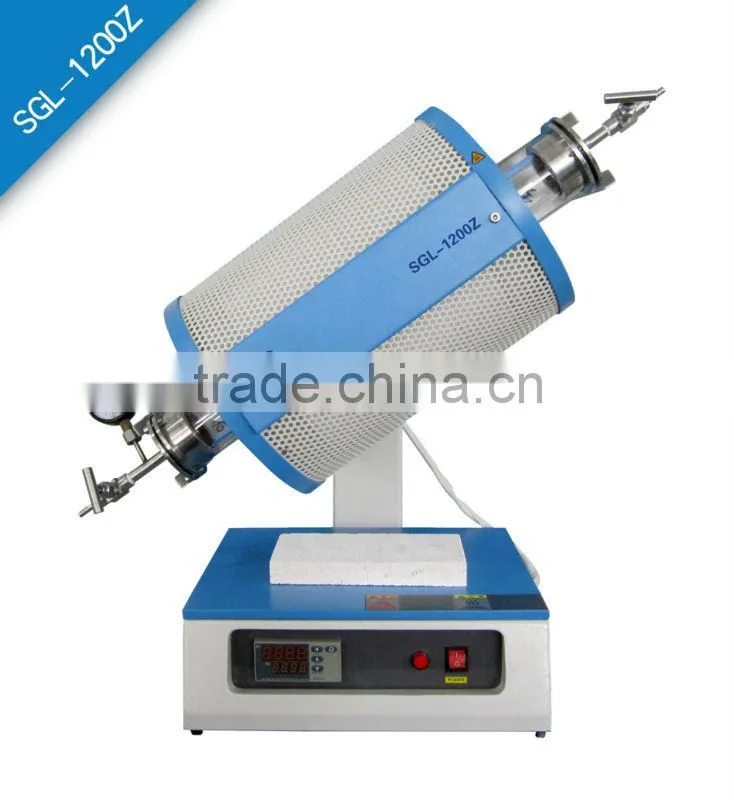

The overview picture from different side:
1. Packing: Plywood box with foam
