Specifications
1.CE,1 year warranty2.Big factory direct supply
3.Adopted KF quick flange sealing
4.Latest technique
5.1 year warranty,CE a

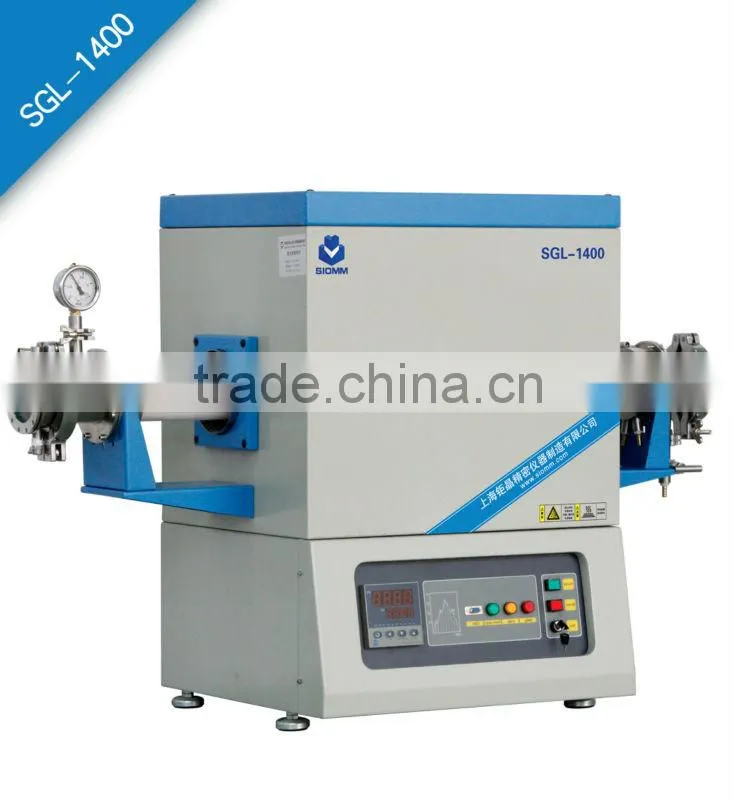

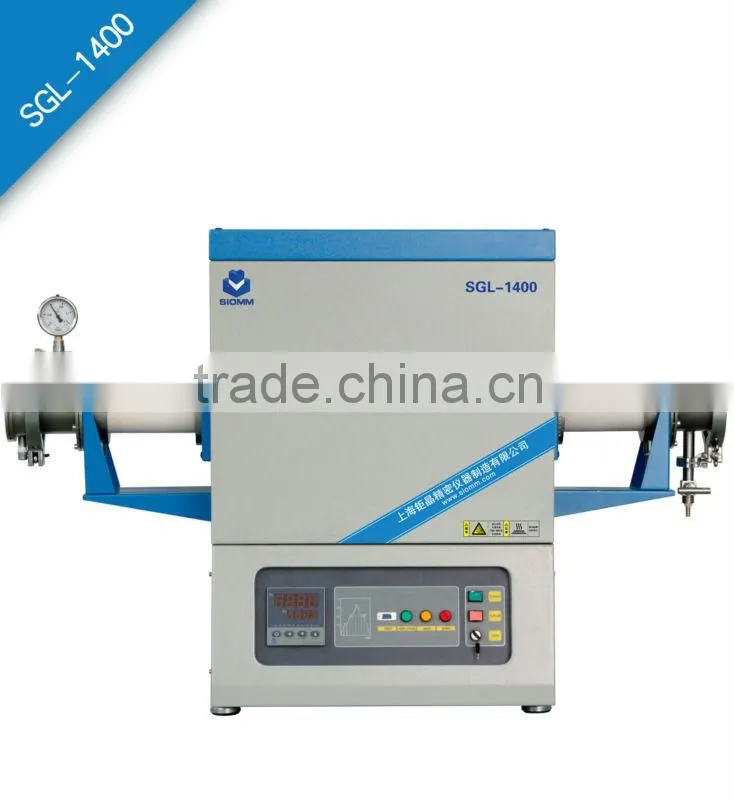

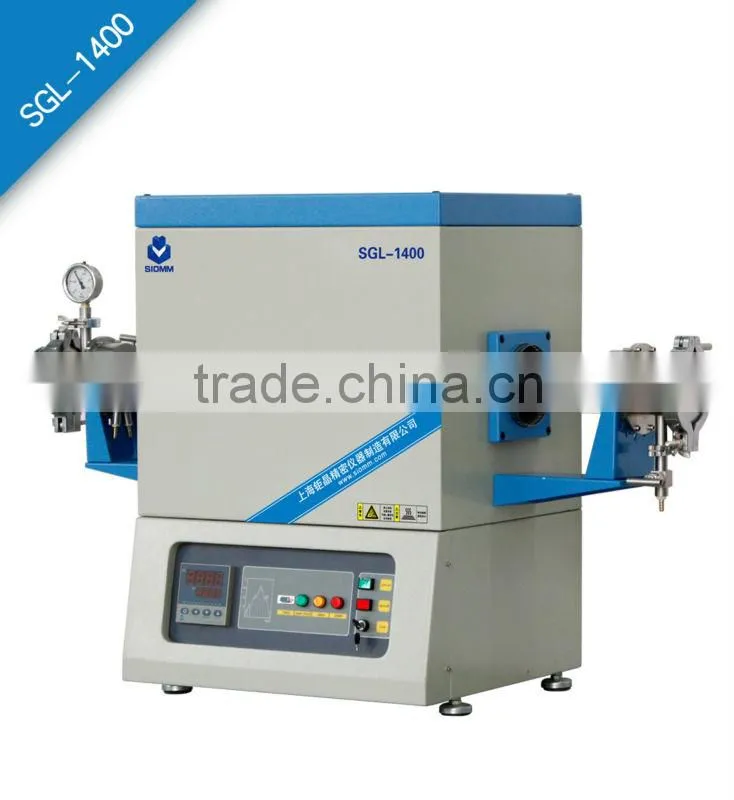

High temperature vacuum tube furnace SGL-1400
Products Introduce:
SGL - 1400 vacuum tube furnace with imported silicon carbide rode as heating elements, adopted double-shellstructure and intelligent program temperature control system, phase-shift trigger, SCR control, furnace chamberadopted polycrystalline alumina fiber material. Between double furnace shell equipped with air cooling system for fast heating and cooling, with vacuum device, can be working in protective gas or vacuum.
Main function and features:
1. Adopted KF quick flange sealing, only need a clamp flange the connection can be done. It is veryconvenient to put and take the specimen. Avoiding bolt leakage by artificial operation and reduced the ratio of heating tube damaging which caused by installation flanges;
2. Furnace chamber adopted imported alumina polycrystalline fibers, effective insulation and energy saving. Imported silicon carbide as heating element, greatly improving its service life, high density imported alumina tube, durable use and not easy break;
3. Reserved vacuum, gas road fast interface, could working with our vacuum system or mixed gas system;
4. Reserved 485 convert interface, can be connected with PC through software. It has remote control, real time tracking, history recorder, and output report function. And can be installed the paperless recorder for data storage and output;
5. Built - in thermocouple, real-time monitoring the temperature of the heated material;
6. Optional with the observation window flange, real-time observation of the sintered material conditions;
7. Over-temperature alarm and power failure, leakage protection, safe and reliable operation.
Main applications:
Used for universities, research institutions, industrial and mining enterprises to do high temperature sintering
atmosphere, atmosphere restoring, CVD experimental and vacuum annealing.
Specifications:

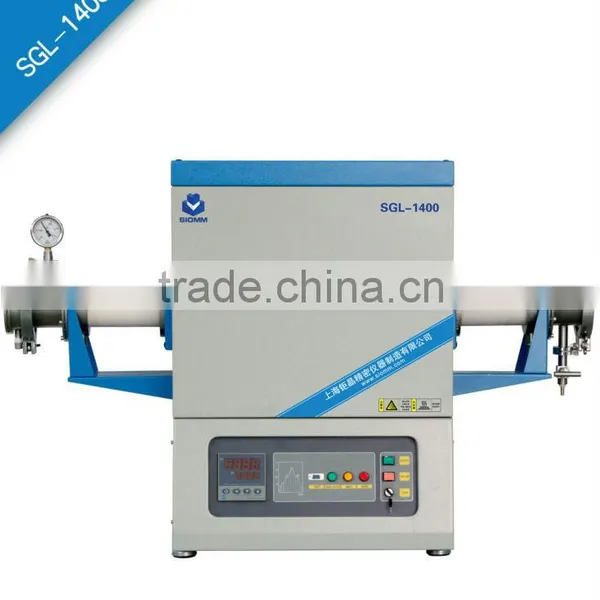

The overview picture from different side:
1. Packing: Plywood box with foam
