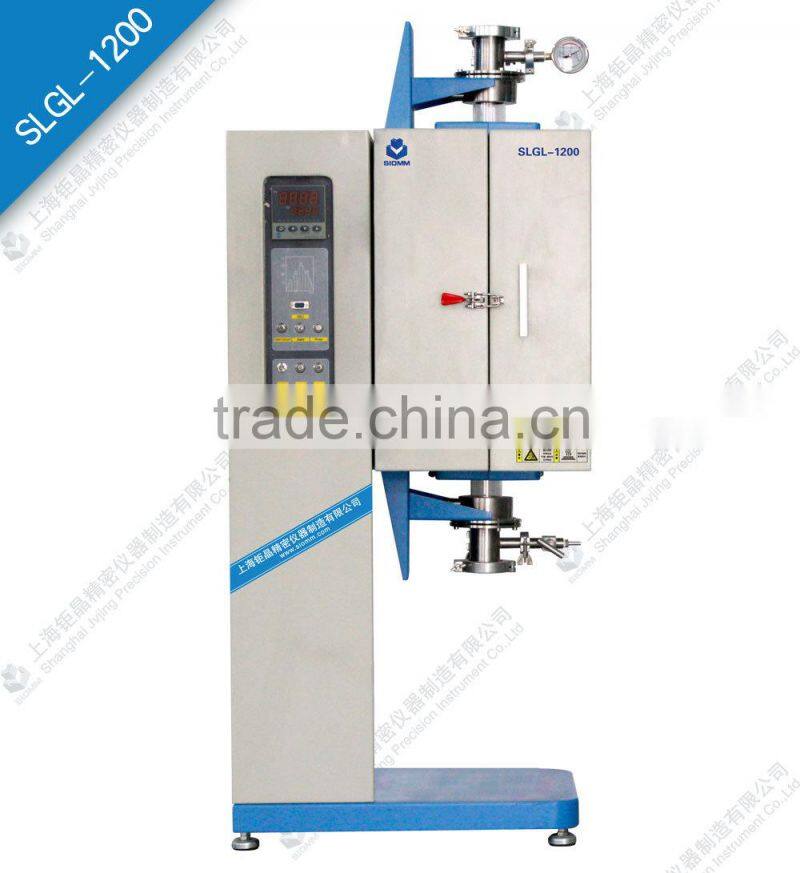

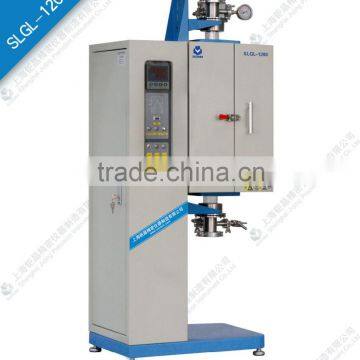

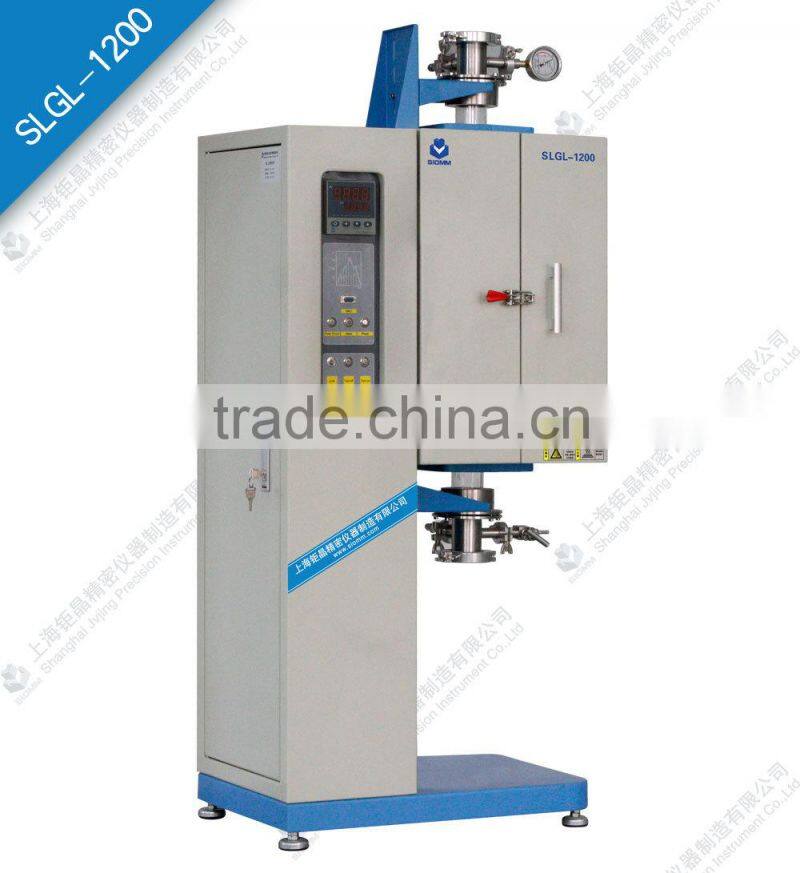

Help CenterMini Vertical Tube Furnace by Chinese Manufacturer
Related Products
-
1200C Vertical Vacuum Tube Furnace Price From China ManufacturerNegotiableMOQ: 1 Set -
Short Vertical Tube FurnaceNegotiableMOQ: 1 Set
-
Laboratory Heating Equipment Quartz Furnace Tubes 1200 Deg CNegotiableMOQ: 1 Set
-
Scientific Vertical Tube Furnace ManufacturerNegotiableMOQ: 1 Set
-
Fluidized Bed Vertical Tube Furnace With 1'' O.D Quartz Tube and Flange for Powder CVDNegotiableMOQ: 1 Set
Specifications
1) Best value Mini vertical tube furnace by Chinese manufacturer2)Single/more/lengthen heating zone
3)CE & ISO9001 Approved
We are 100% manufacturer, give you Mini vertical tube furnace by Chinese manufacturer factory direct price,save your cost !

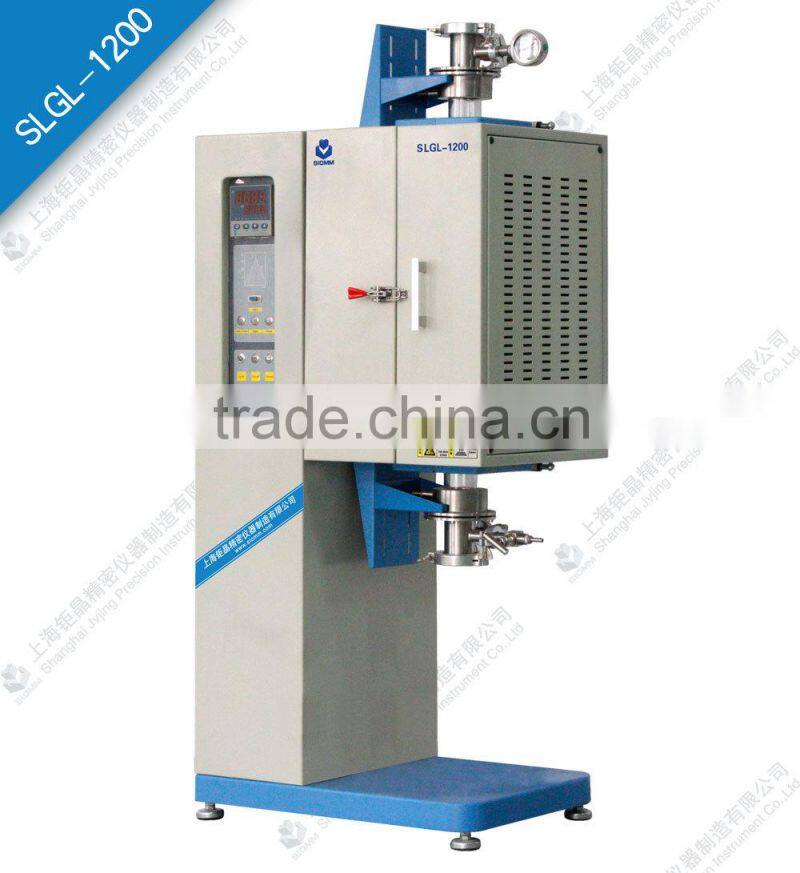

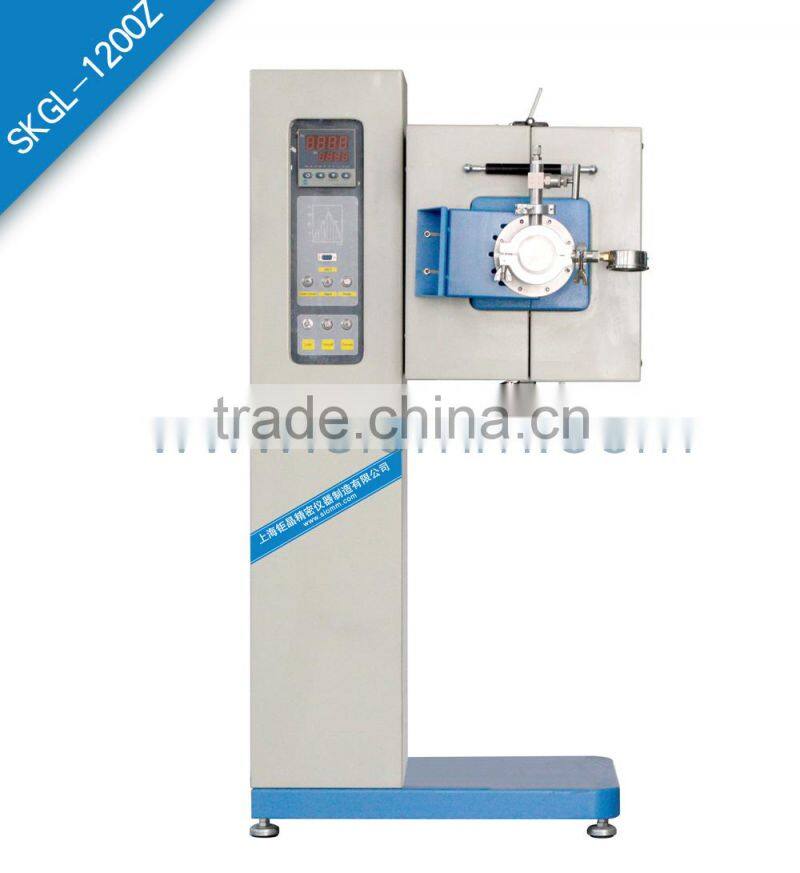

SZGL-1200C Multi-position vacuum tube furnace adopted imported polycrystalline alumina fiber curing furnace chamber with good insulation properties. And equipped with resistance wire as heating elements, intelligent program temperature control system, phase-shift trigger and SCR control. It can working at vertical or horizontal status can meet different experimental requirement. And it can working in vacuum or atmosphere, so used more widely.
1. Adopted KF quick flange sealing, only need a clamp flange the connection can be done. It is very convenient to put and take the specimen. Avoiding bolt leakage by artificial operation and reduced the ratio of heating tube damaging which caused by installation flanges;

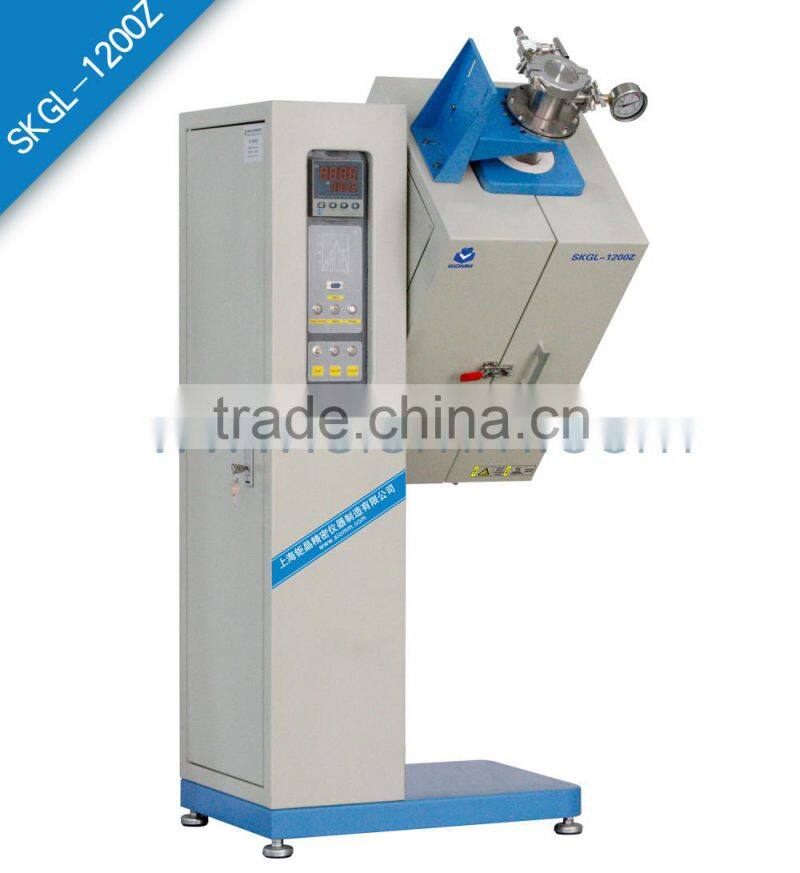

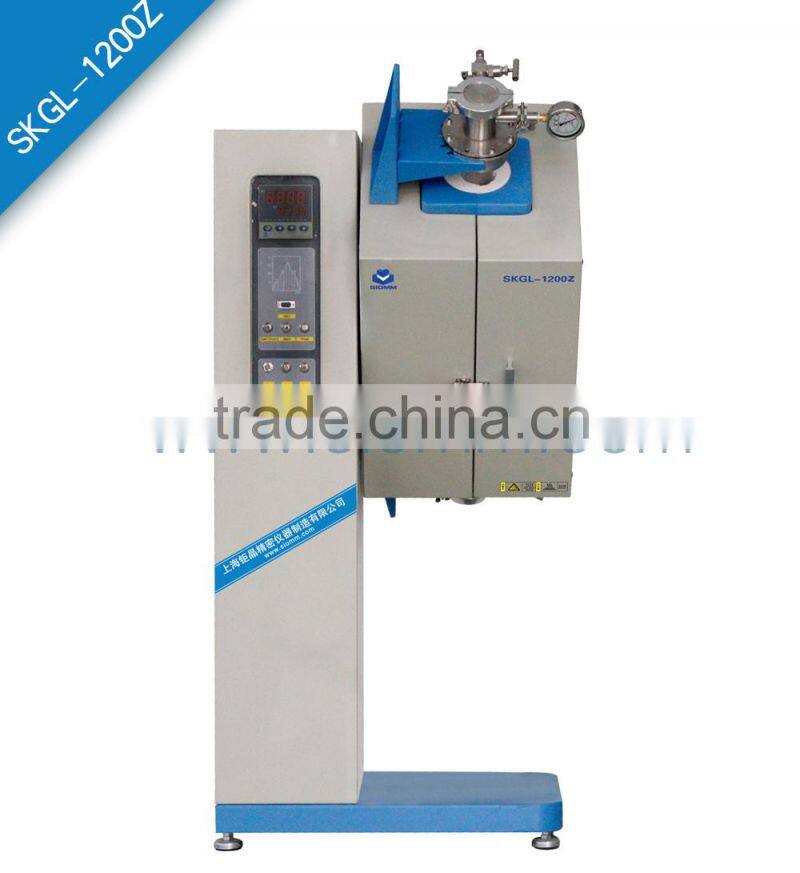

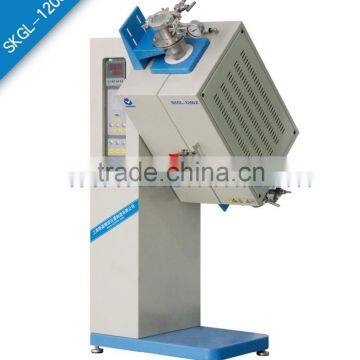

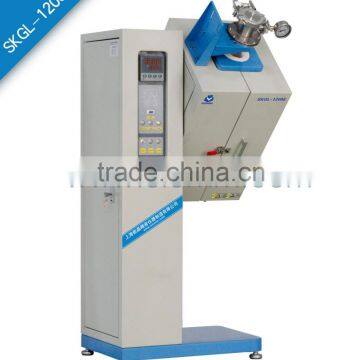

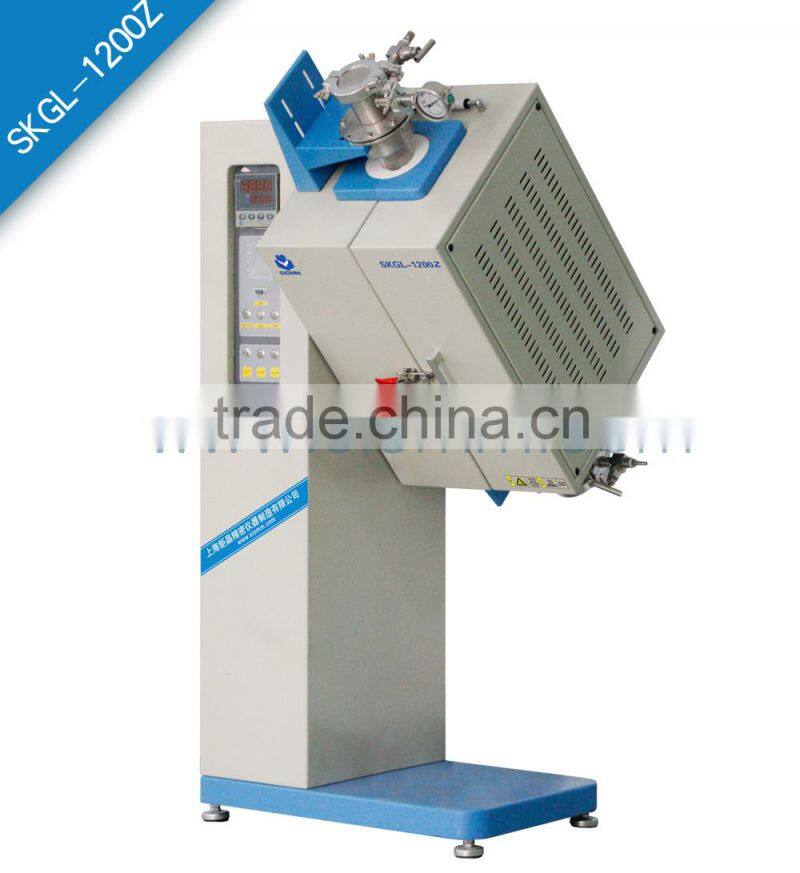

2. The furnace tube can be working at any angle, vertical, horizontal or any else angle. Used more widely;
3. Adopt imported polycrystalline fiber vacuum absorption furnace chamber; the resistance wire is used high quality resistance alloy silk 0Cr27Al7Mo2, servicing time more longer;
4. Reserved vacuum, gas road fast interface, could working with our vacuum system or mixed gas system;
5. Reserved 485 convert interface, can be connected with PC through software. It has remote control, real time tracking, history recorder, and output report function. And can be installed the paperless recorder for data storage and output;
6. Built - in thermocouple, real-time monitoring the temperature of the heated material;
7. Over-temperature alarm and power failure, leakage protection, safe and reliable operation.
Used for universities, research institutions, industrial and mining enterprises to do high temperature sintering
atmosphere, atmosphere restoring, CVD/CVI experimental and vacuum annealing.
Model | SZGL-1200C(Approved by CE certificate, ensure the safety operation of the machine. Certificate No.: GB/1067/4189/12 Issue 1) |
Furnace Chamber | Imported high pure polycrystalline alumina fiber from Japan, excellent heat preservation |
Furnace tube size | Φ40/60*600mm,Φ80/100*700mm |
Heating elements | Doped molybdenum resistance wire |
Thermometric component | N-mode thermocouple |
Temperature control mode | The temperature control system adopted artificial intelligence technology, PID regulation, self-tuning capabilities, 30 section temperature control program |
Seal mode | Stainless steel the KF quick flange extrusion seal |
Standard vacuum degree | ≤50Pa (If need more high vacuum degree, can purchase different vacuum system) |
Working temperature | ≤1150℃ |
Max temperature | 1200℃ |
Constant temperature accuracy | ±1℃ |
Heating zone length | 350mm |
Max. Temperature rising rate | ≤30℃/min |
Recommend temperature rising rate | ≤10℃/min |
Rated power | 2.5KW |
Working power | AC220V 50HZ/60HZ |
Weight | About 25kg |
Standard accessories | Sealed flanges 1 pcs, O rings 4 pcs, quartz tube 1 pcs, vacuum pump 1 set, pipe plug 4 pcs, oven gloves, crucible tongs each 1 pcs |
Optional purchase accessories | Furnace hobs; Mixed gas system; Low, medium and high vacuum system; All kinds of alumina crucibles; Alumina tube or quartz tube; Computer control software; Paperless recorder, etc. |
