Specifications
1)Best value alloy melting furnace.2) CE, ISO9001 certificate
3) 100% Chinese manufactruer, factory direct price

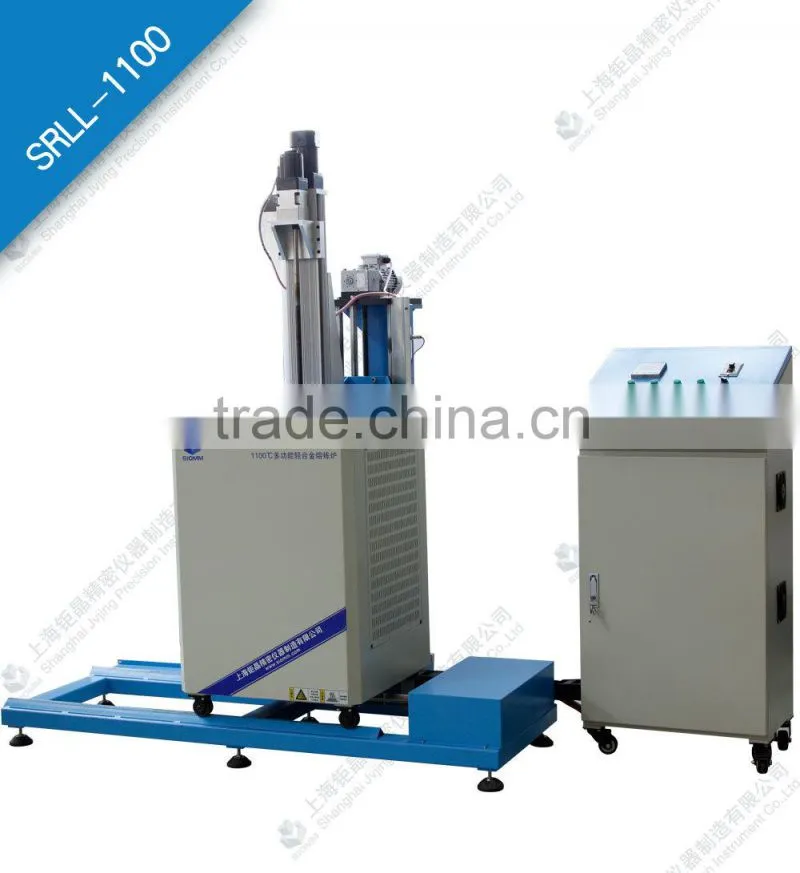

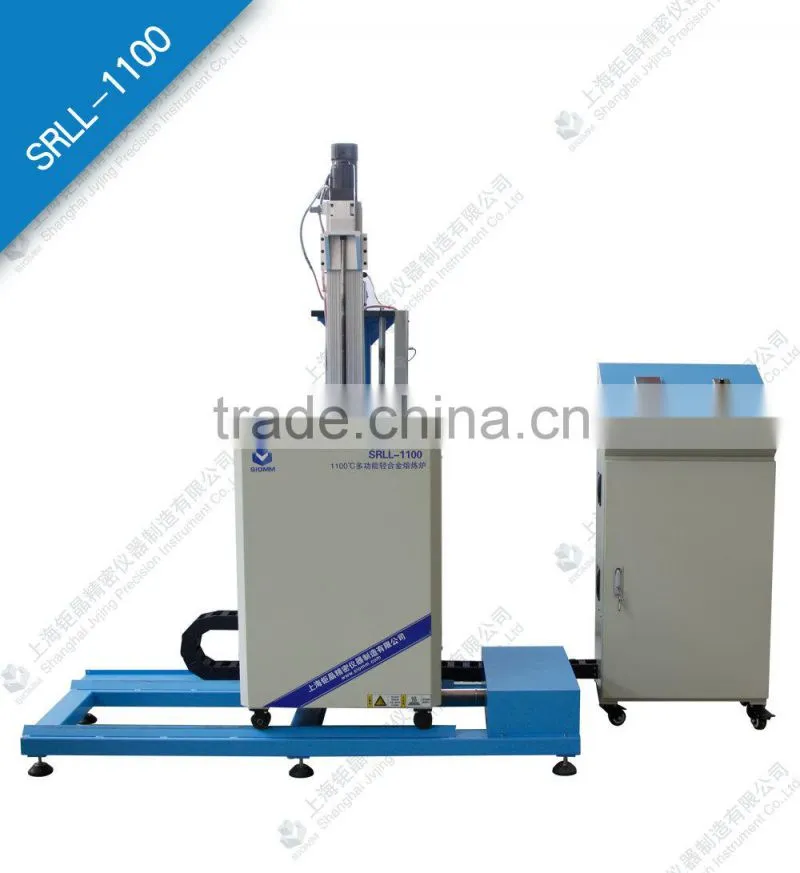

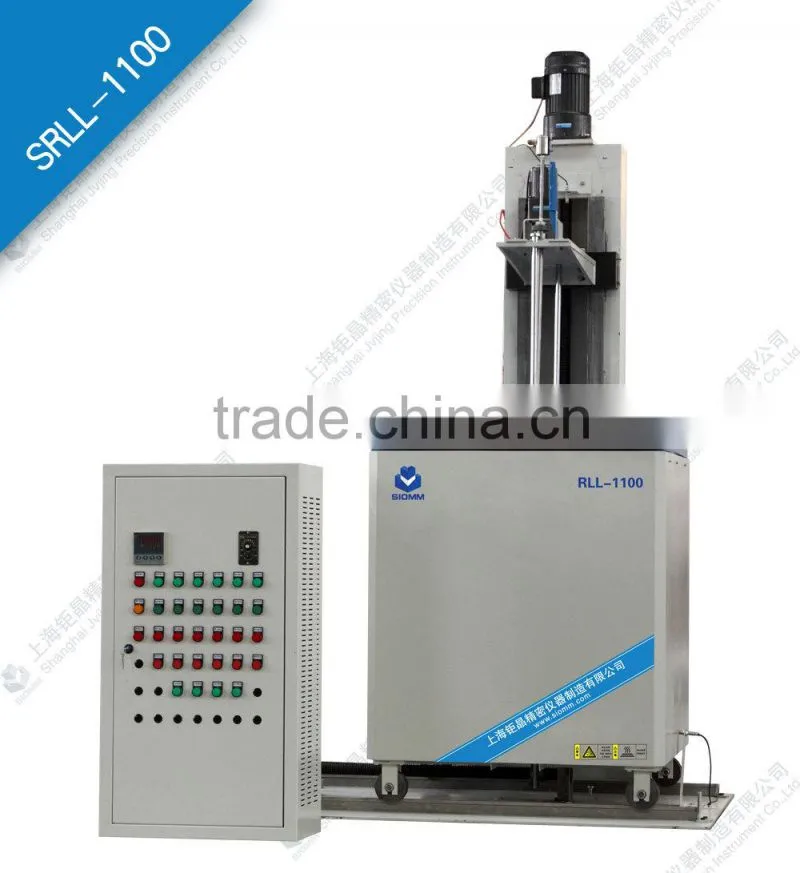

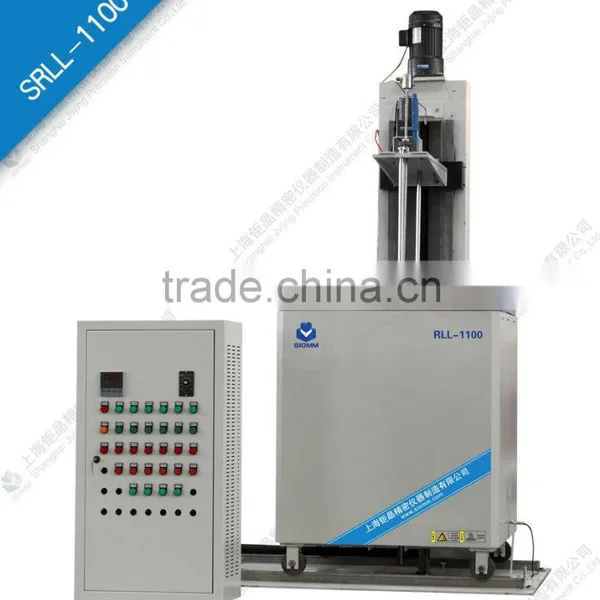

1100degree C Multifunctional light alloy melting furnace SRLL-1100
RLL-1100 multi-function light alloy melting furnace comprises a furnace body, a mobile platform, stirring lifting components. Can stirring when smelting the light alloy material and furnace mobile automatic control. The furnace chamber has a certain tightness, can pass different protective atmosphere. Furnace shell and furnace lid adopted water cooling type, ensure the low temperature of furnace surface and well sealing.
1. When Put into and pick out the specimen, furnace cover to be automatic ascension, along with the mobile platform furnace move freely, automatic control;
2. When Melting, stirring part free lift, speed adjustable;
3. The furnace has a good air tightness, can pass into a different shielding gas;
4. Furnace chamber adopted imported alumina polycrystalline fiber materials, effective insulation and energy-saving; Heating elements used high quality alloy wire 0Cr27Al7Mo2;
5. Stirring and moving interlock, over temperature alarm and leakage protection to ensure that the equipment used very safe.
Used in light-alloy industry, particularly mixing melting of magnesium alloy at high temperature.
Model |
RLL-1100 (Approved by CE certificate, ensure the safety operation of the machine. Certificate No.: GB/1067/4189/12 Issue 1) |
Chamber Size |
Φ580*800mm (Customizable) |
Heating elements |
0Cr27Al7Mo2 |
Temperature control components |
N model thermocouple |
Temperature control model |
The temperature control system uses artificial intelligence technology, with PID control, self - tuning function, 30 the heating and cooling program |
Cooling type |
water cooling |
Working temperature |
≤1000℃ |
Maximum temperature |
1100℃ |
Constant temperature accuracy |
±1℃ |
Stirring speed |
5-30rpm (Adjustable) |
Lift stroke |
600mm |
Rated power |
6KW |
Power supply |
AC380V 50HZ/60HZ |
Weight |
About 400Kg |
